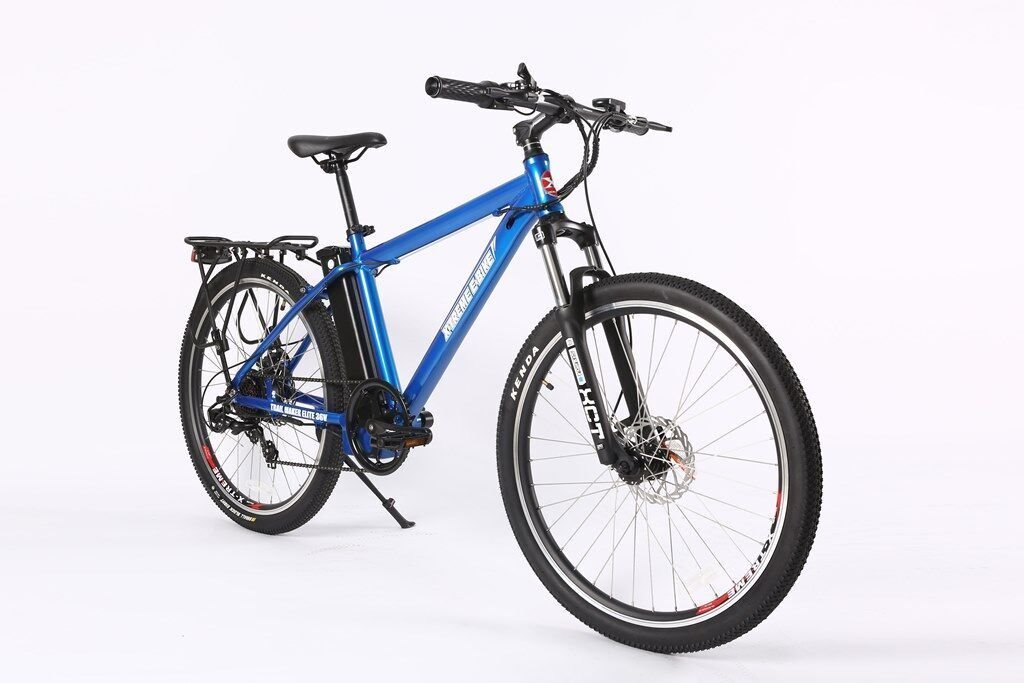

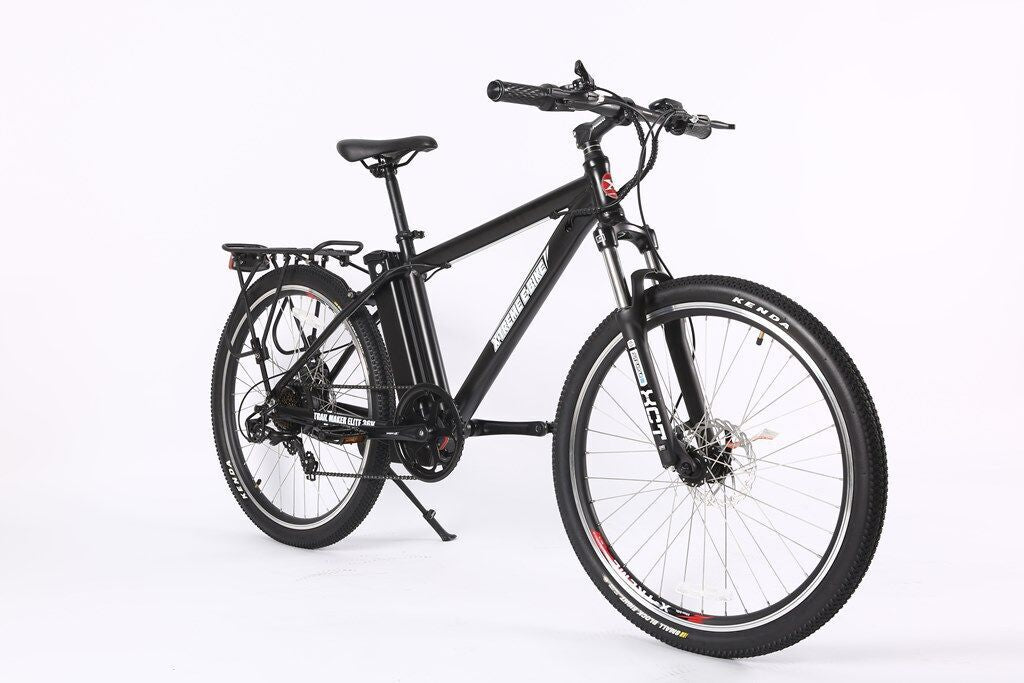

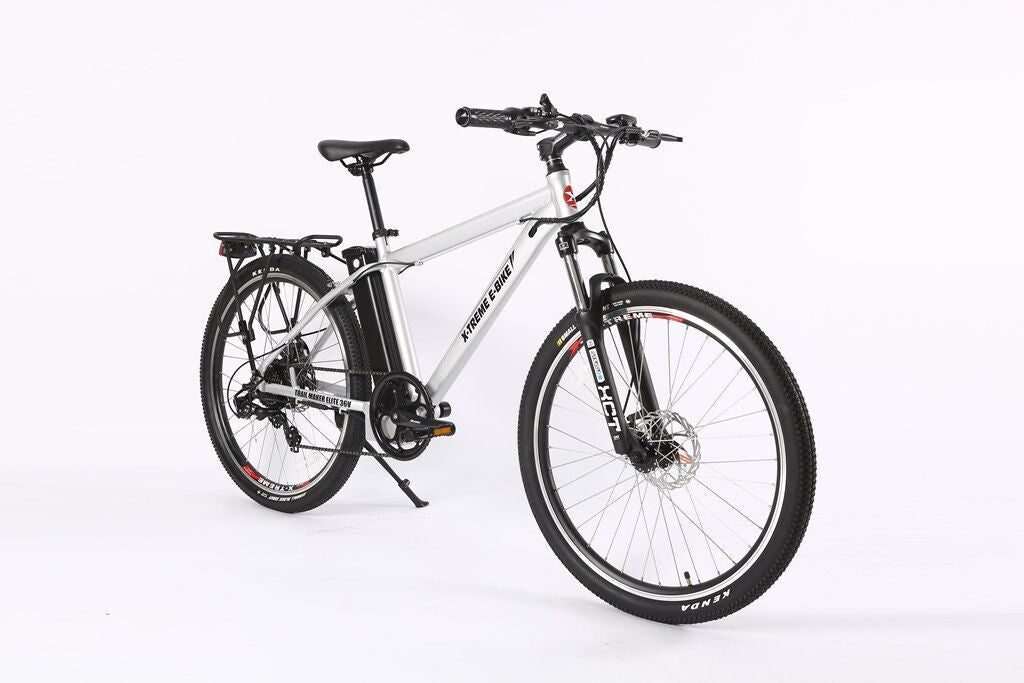

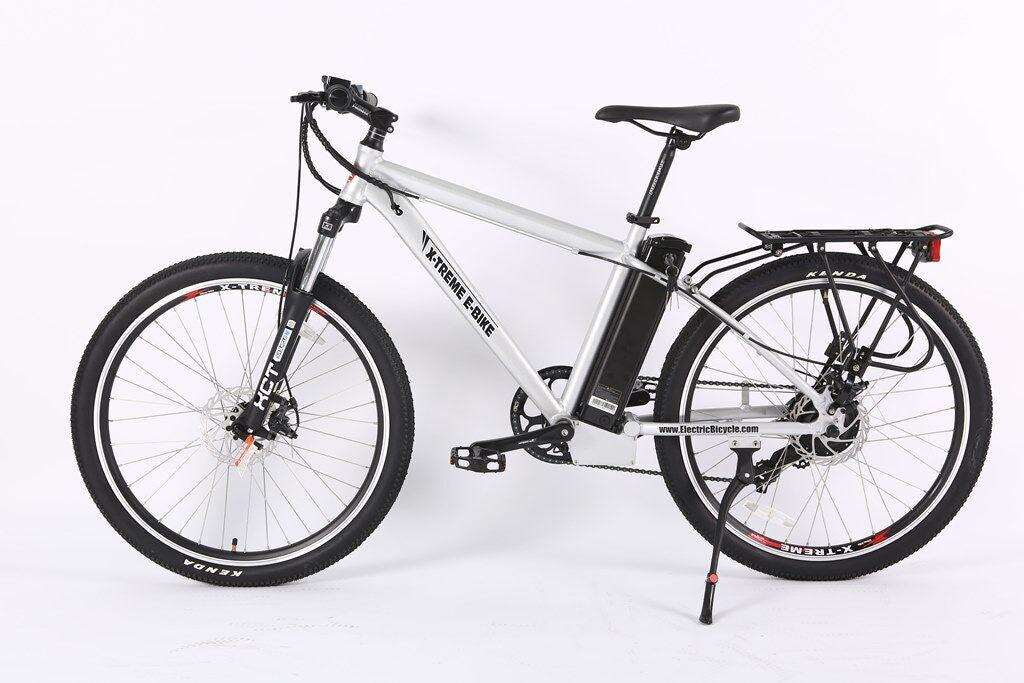

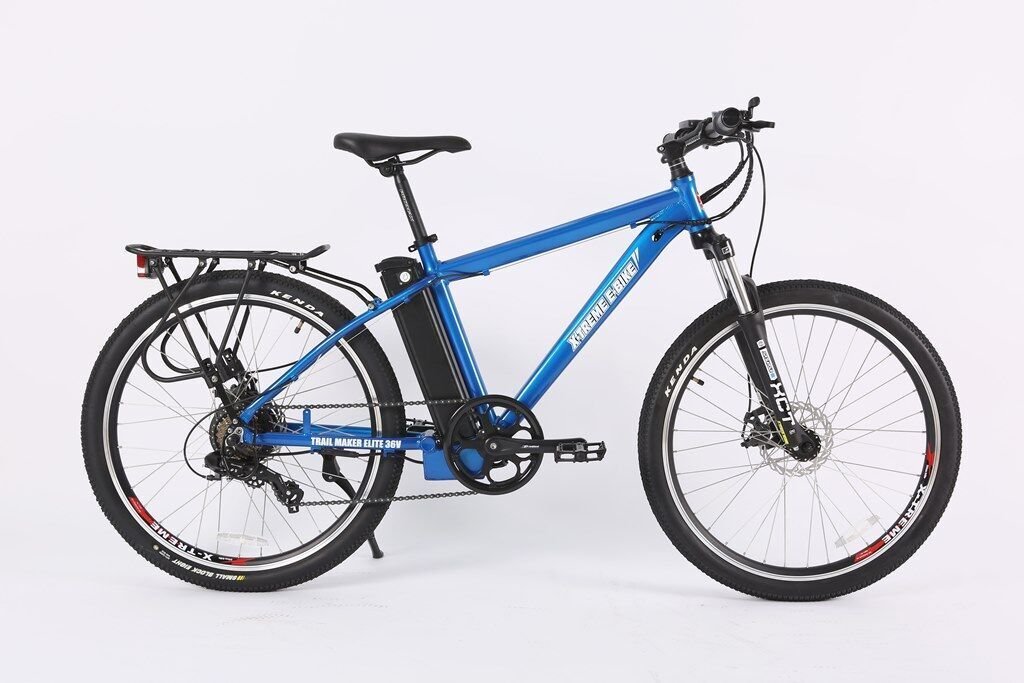

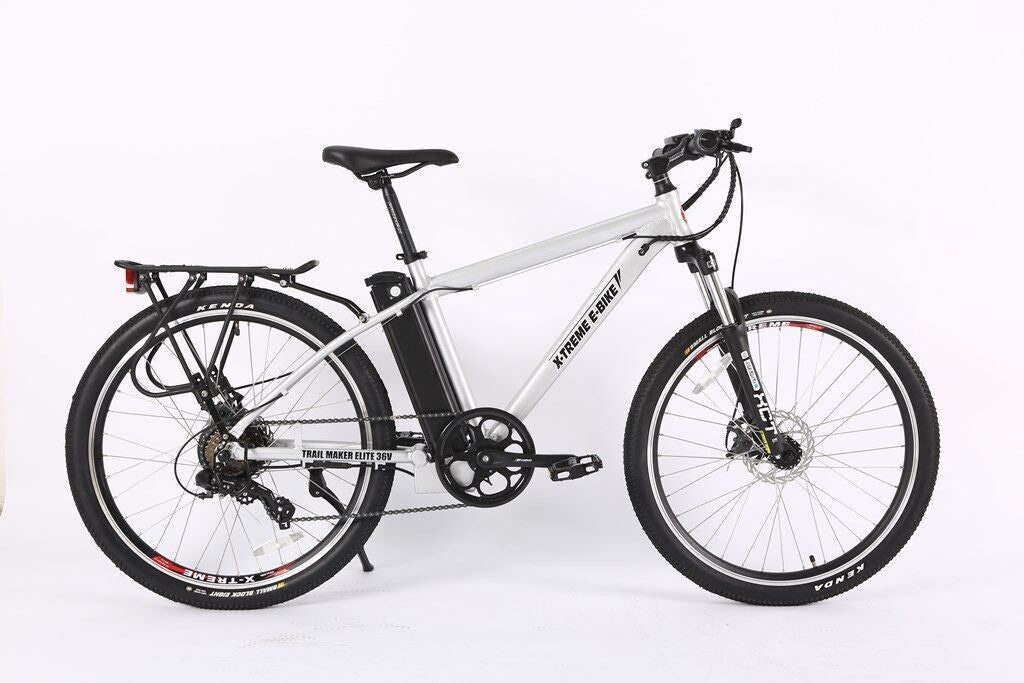

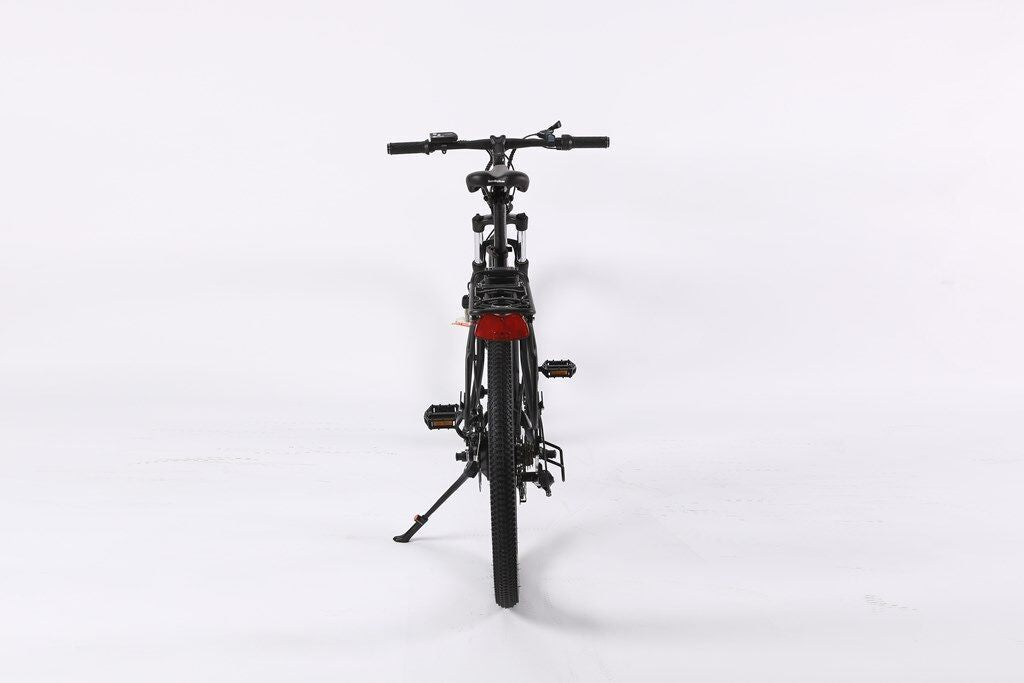

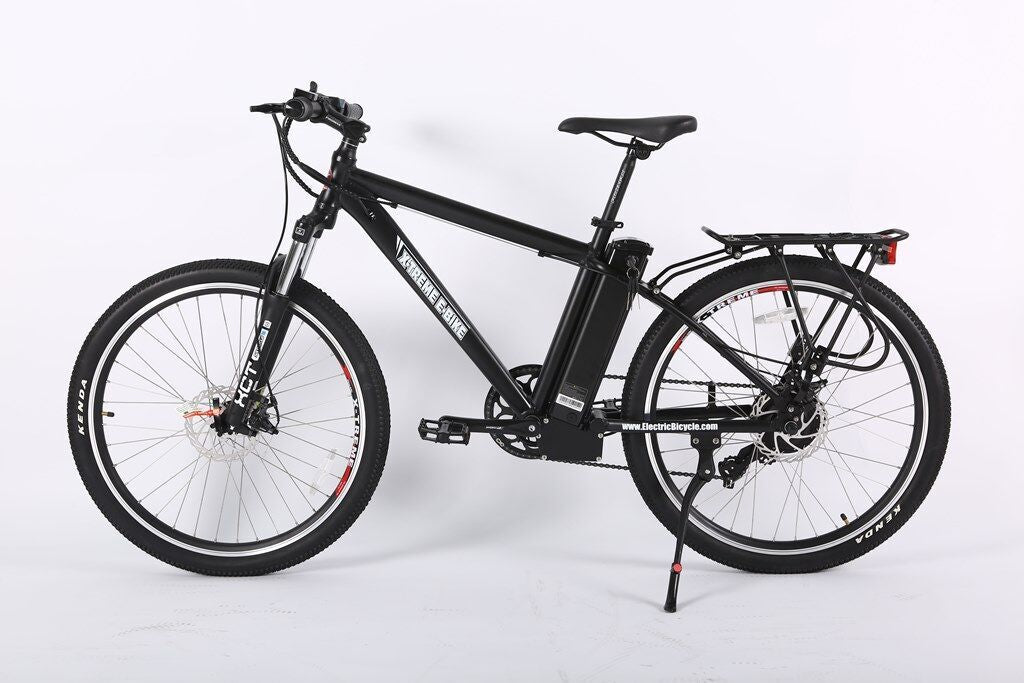

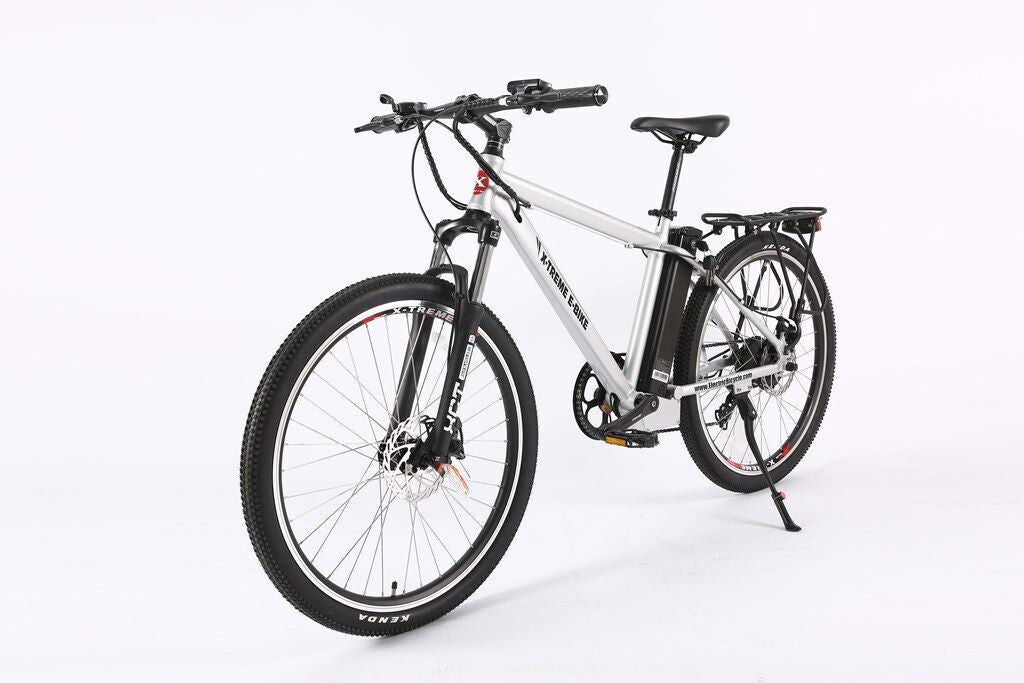

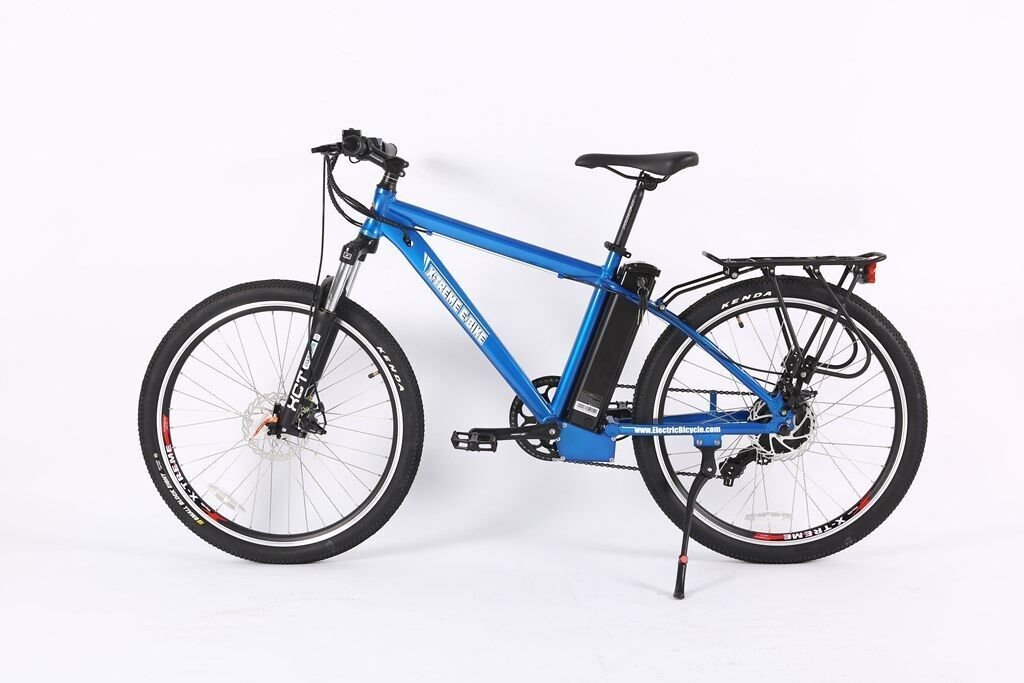

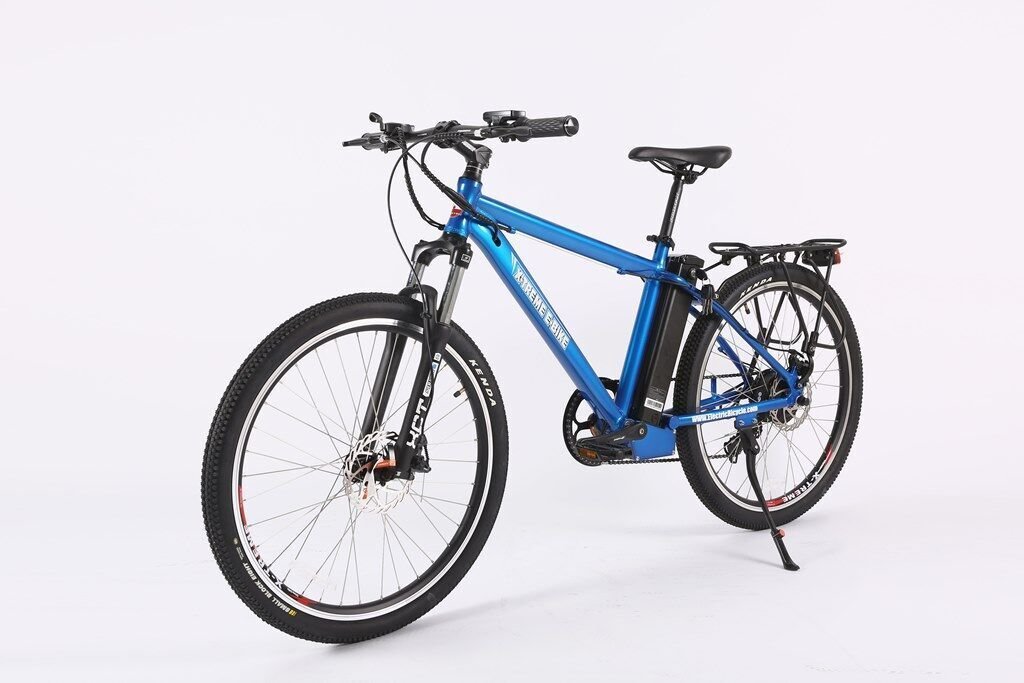

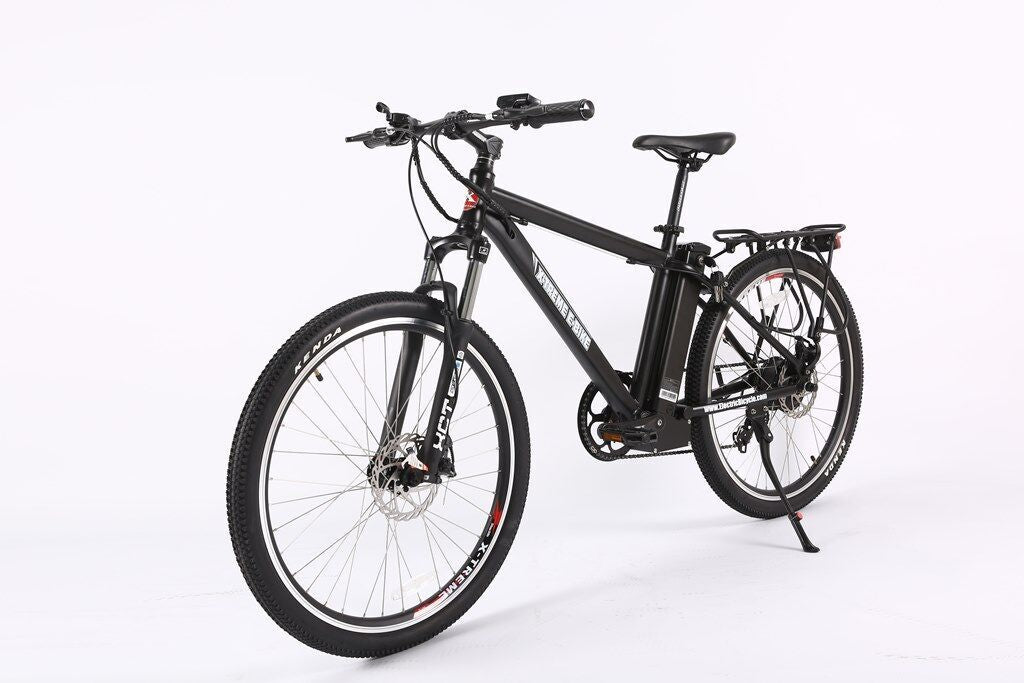

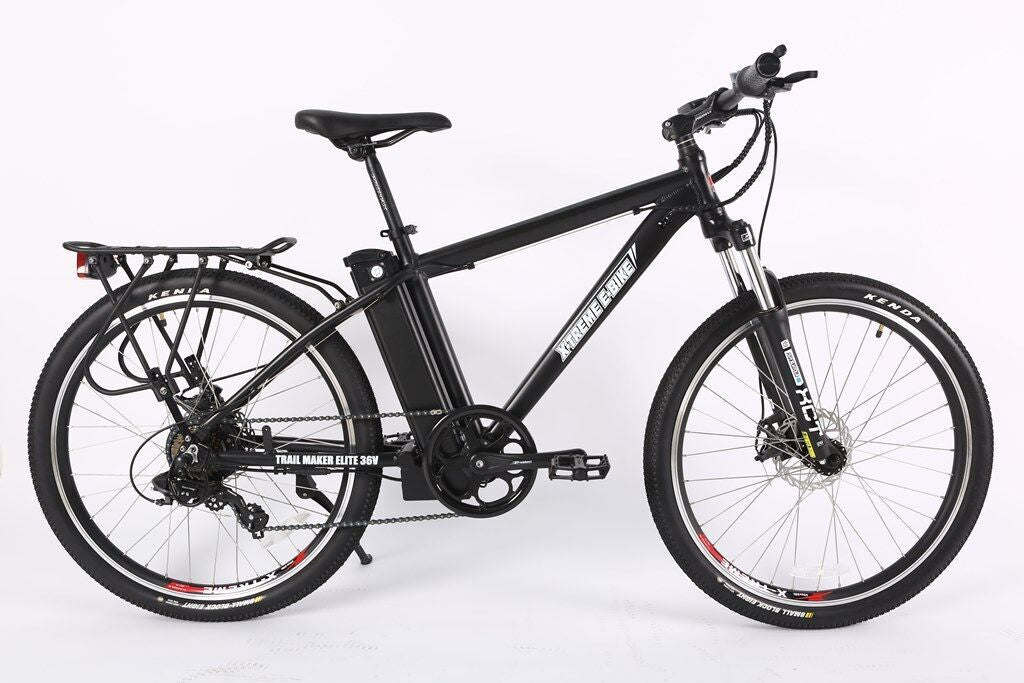

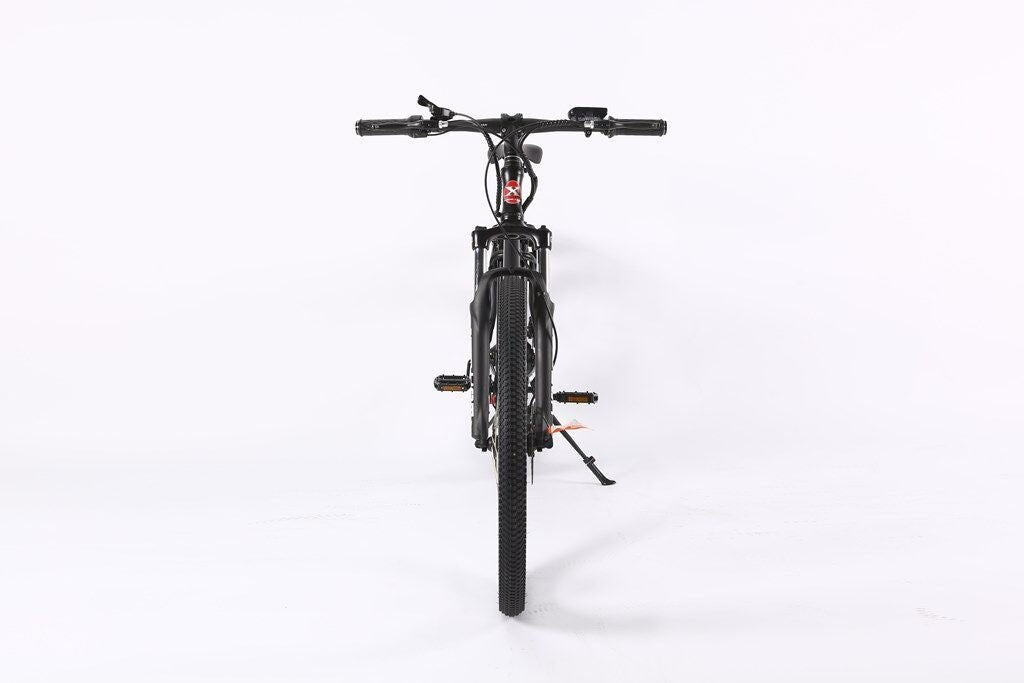

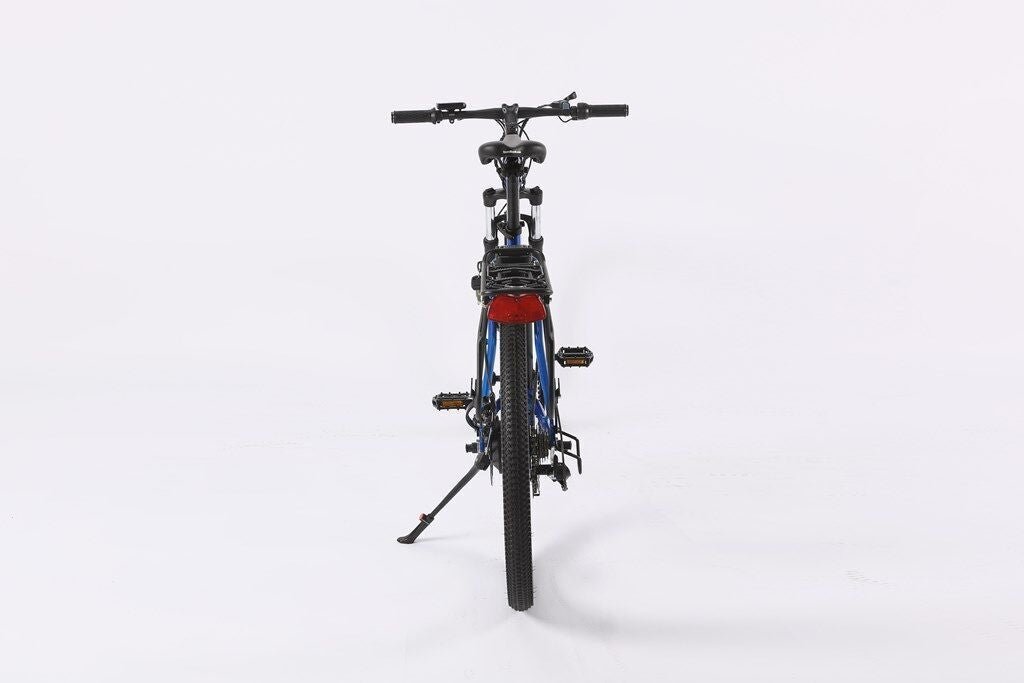

The X-Treme Trail Maker Elite Max 36 Volt Electric Mountain Bike is a Lithium Battery powered Electric Bicycle, running on a 300 Watt Zero Resistance rear hub motor.

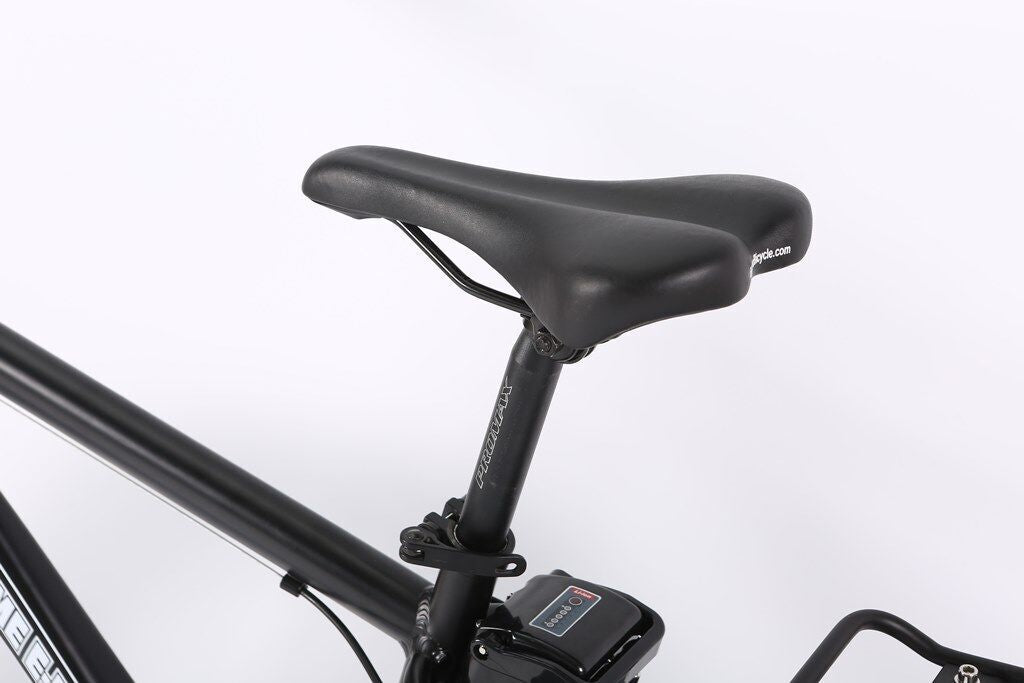

Constructed with all top of the line components this model includes a 7 Speed Shimano Tourney Gears & Shifter System, 7 Lightweight Lithium LiPo4 Batteries, a 100% Aluminum Alloy Frame, fully Adjustable Seat, and a Suntour hydraulic front fork.

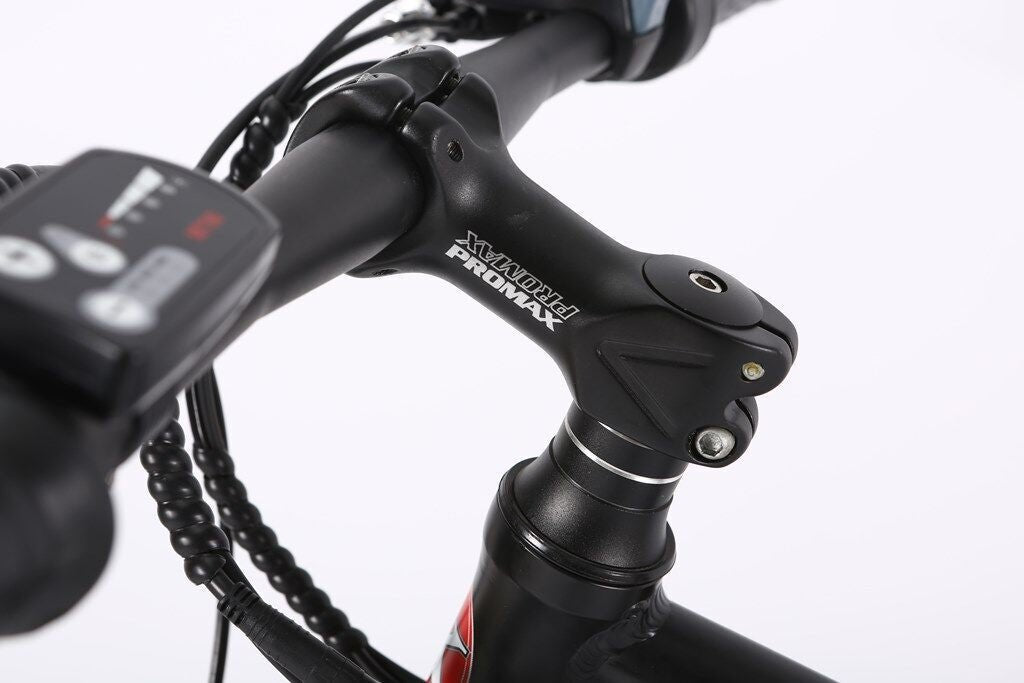

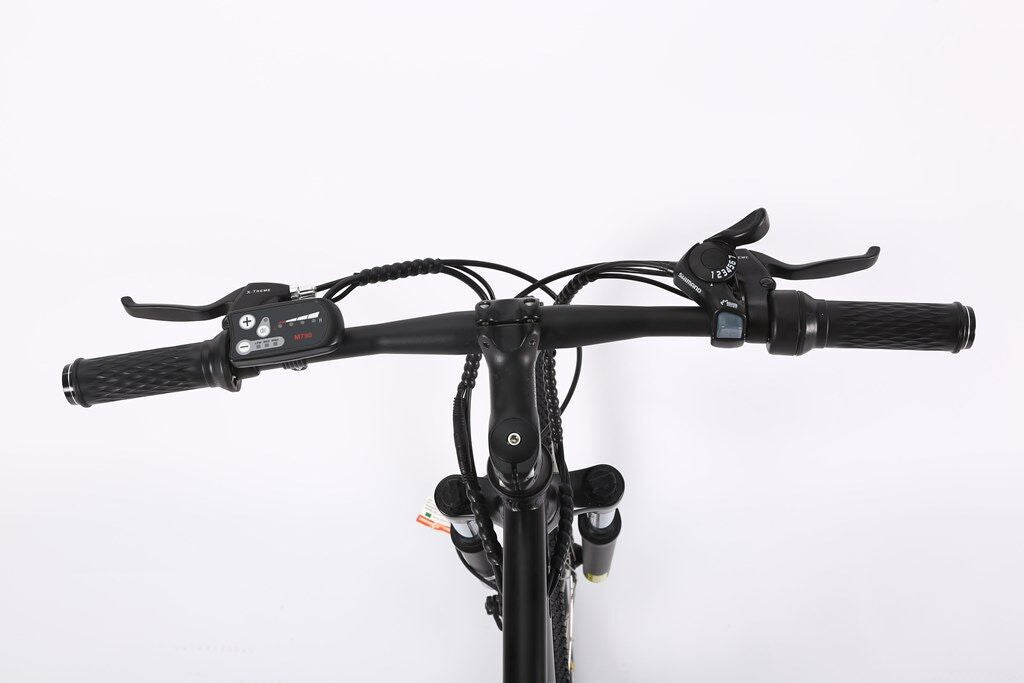

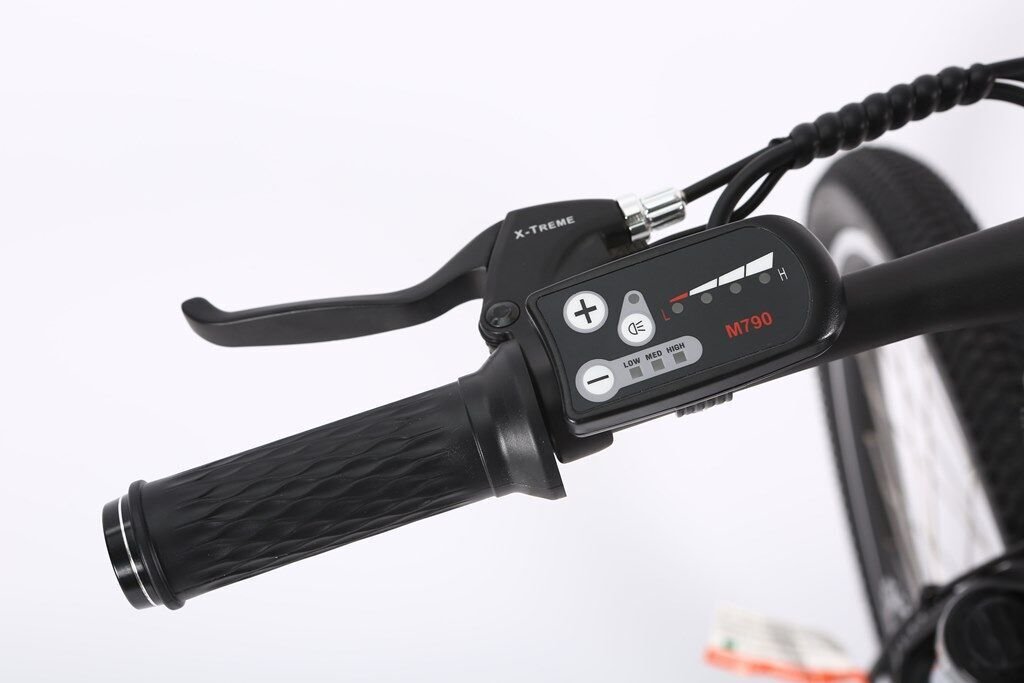

This electric bicycle comes equipped with a LED Panel for the PAS (Pedal Assist System) attached to the handlebars.
The PAS provides 4 speed options - Zero (Pedal Power Only), Low, Medium and High.

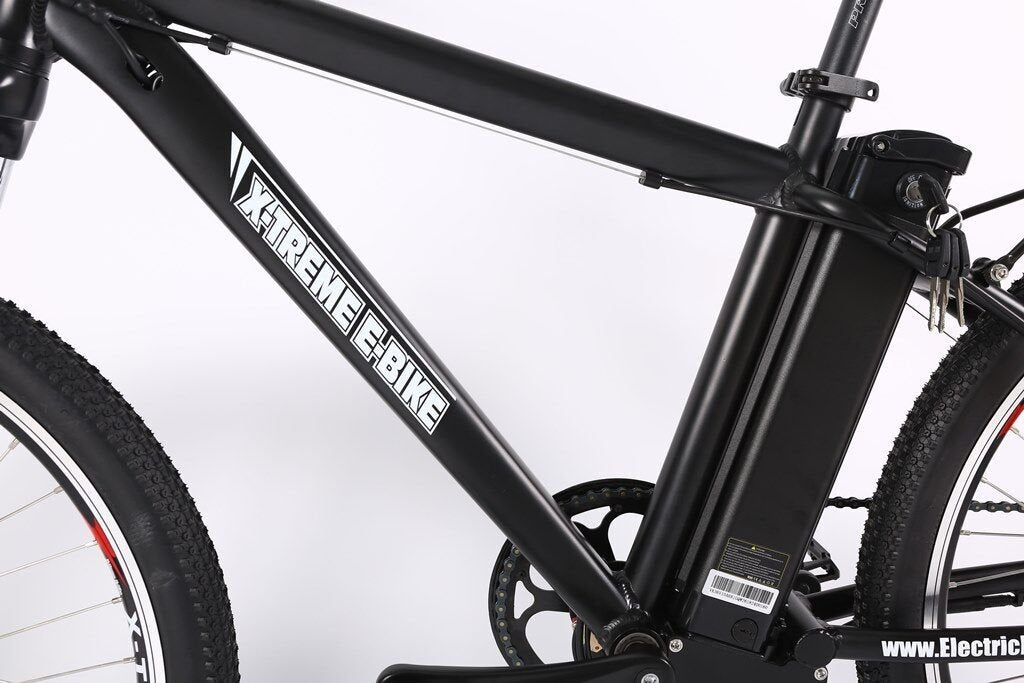

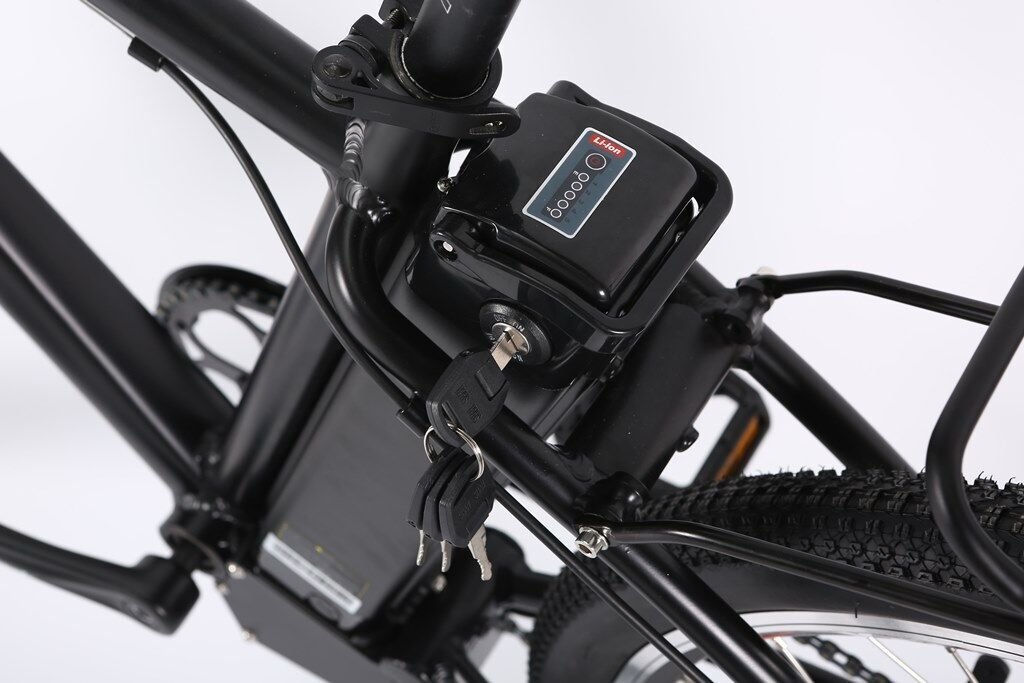

The 36 Volt 10 Amp LiPo4 lithium battery pack is lightweight, compact and mounts to the frame under the seat and is barely noticeable.
~ Upzy ❤️ The X-Treme Trail Maker ELITE MAX ~
Product Specifications:
| Power | Electric |
| Watts | 300 Watts |
| Amps | 10 Amp Circuit (7 Battery Cells at 10 Amps Each) |
| Volts | 36 Volts (Each Battery Cell is 3.6 Volts) |
| Batteries | 7 Lightweight Lithium LiPo4 Battery Cells in a Sealed Removable Pack that is hidden inside bike frame |

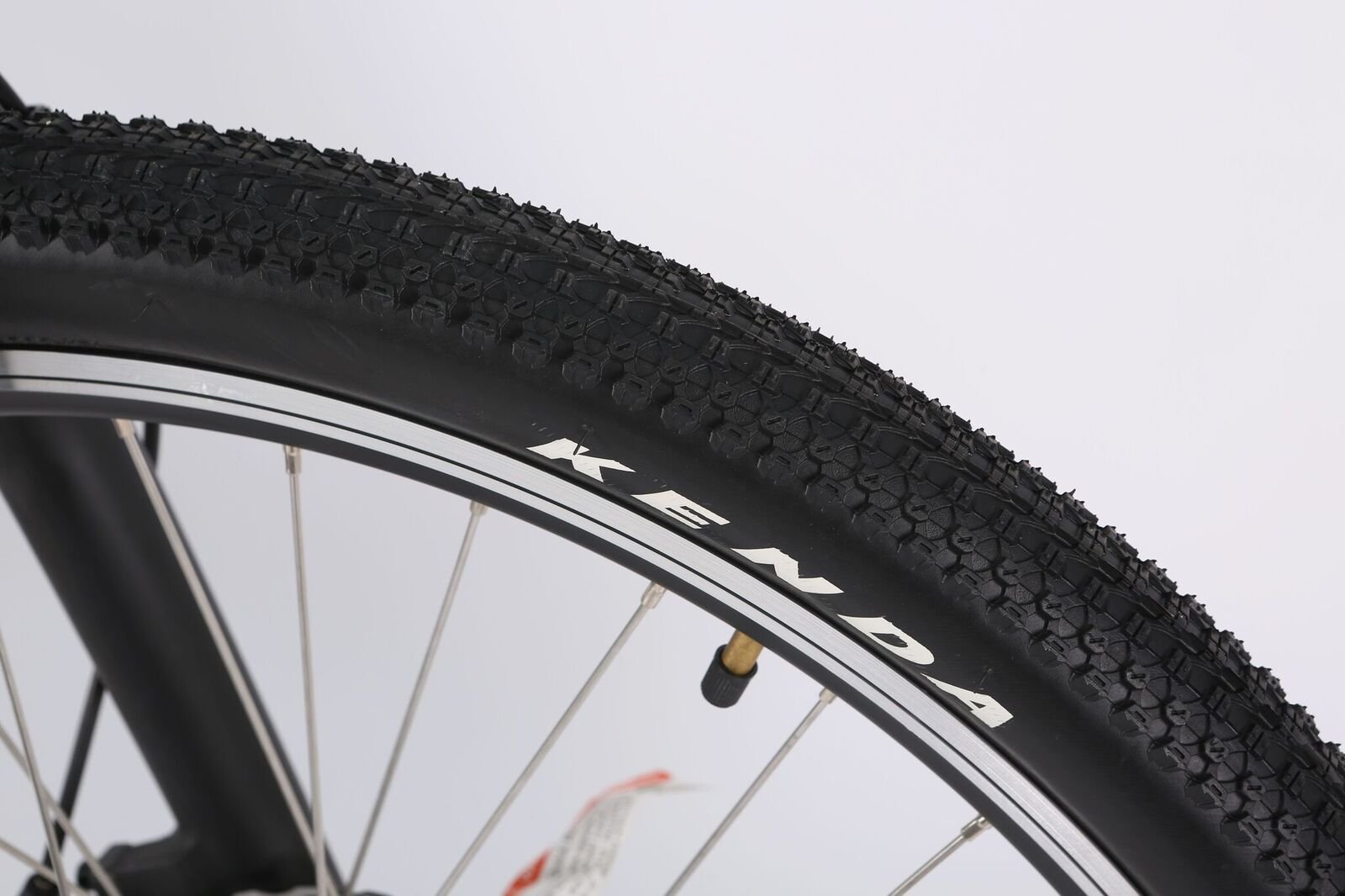

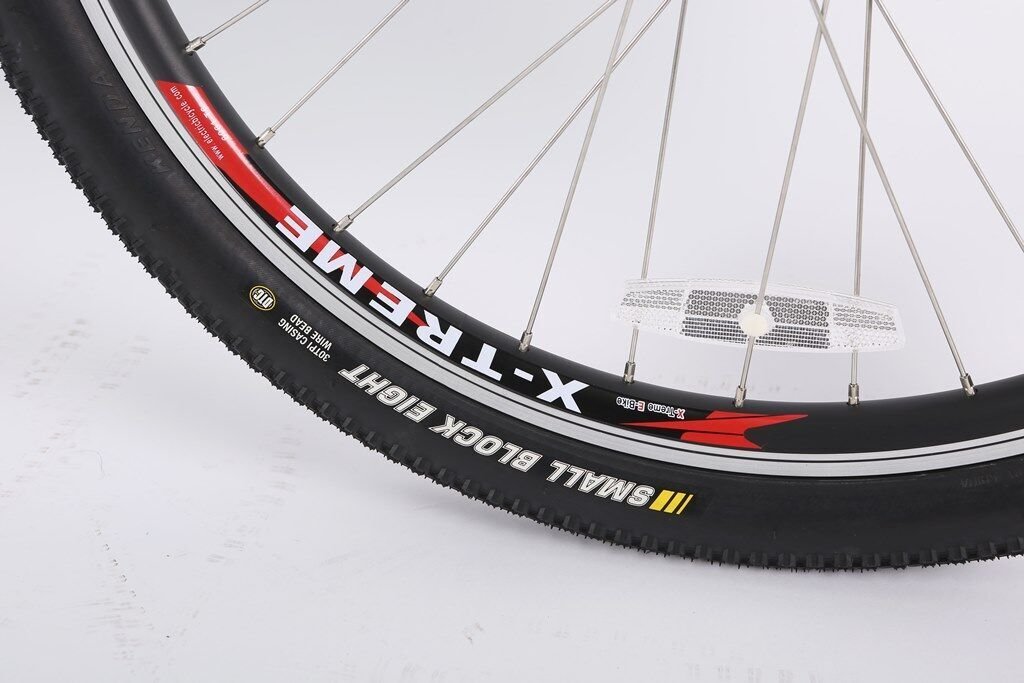

| Tire Size | 26 x 1.95 Inch on Aluminum Wheels |
| Charger | 36V Smart Charger Included |
| Motor |

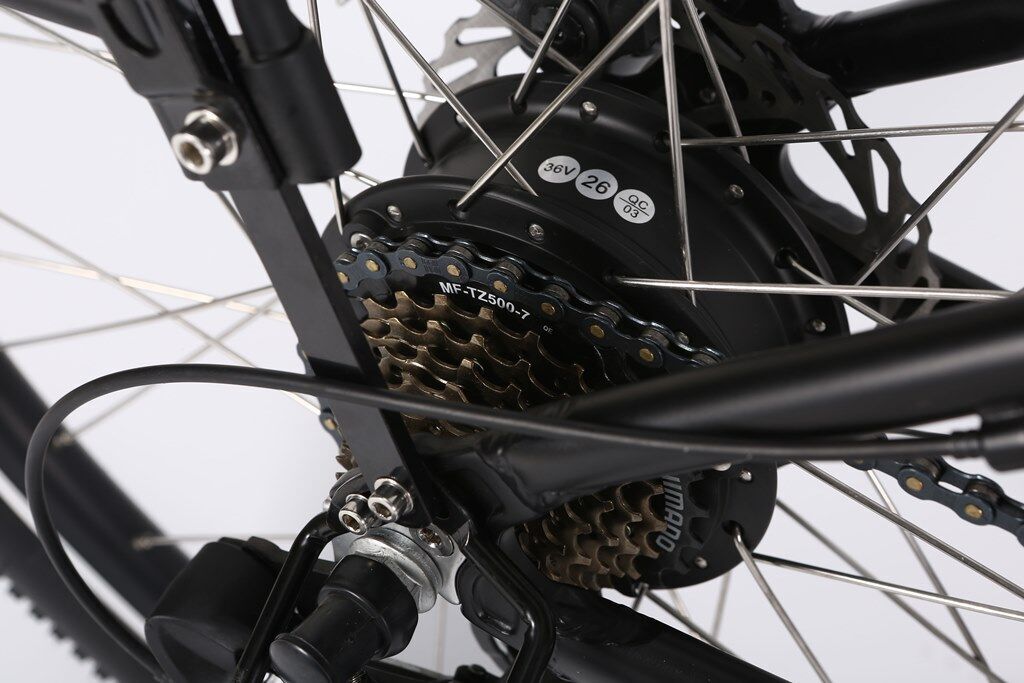

Zero Resistance Hub Motor - Motor is in center of rear wheel |

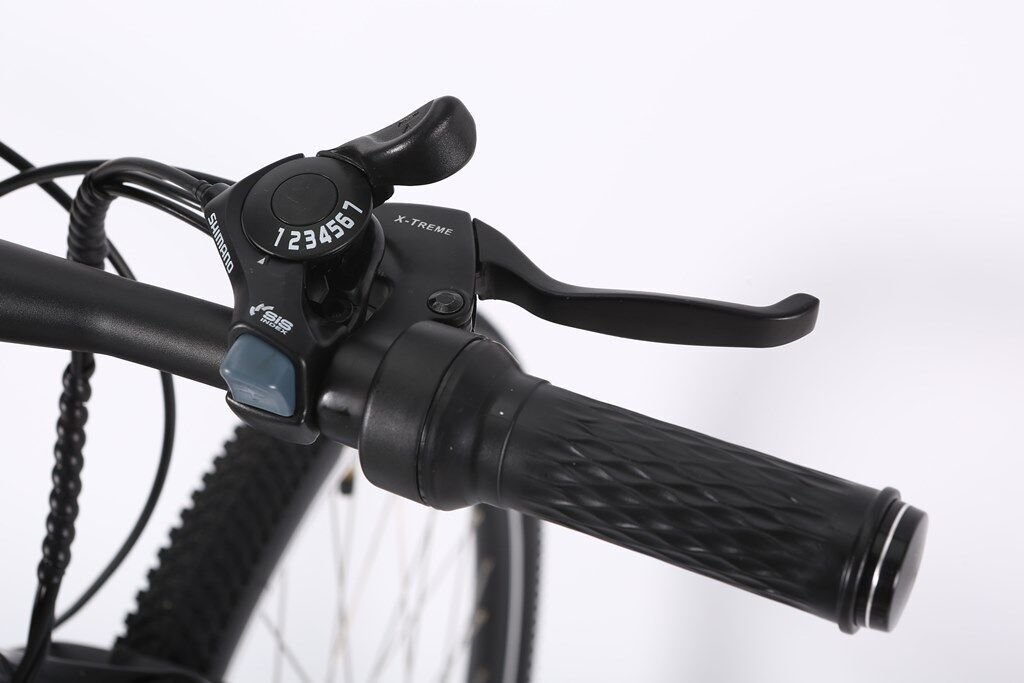

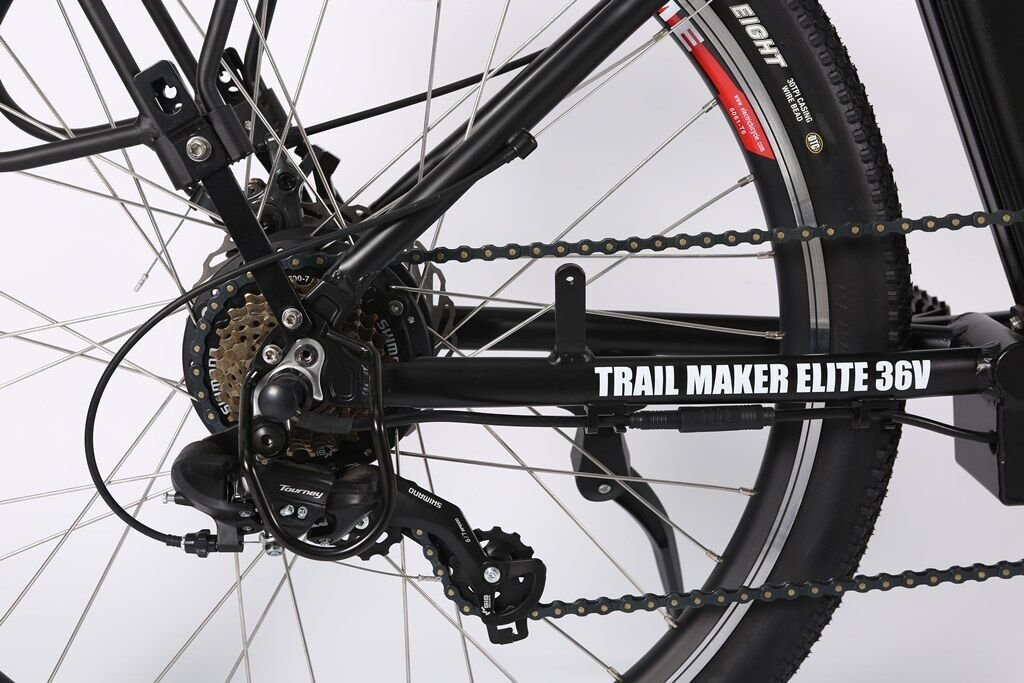

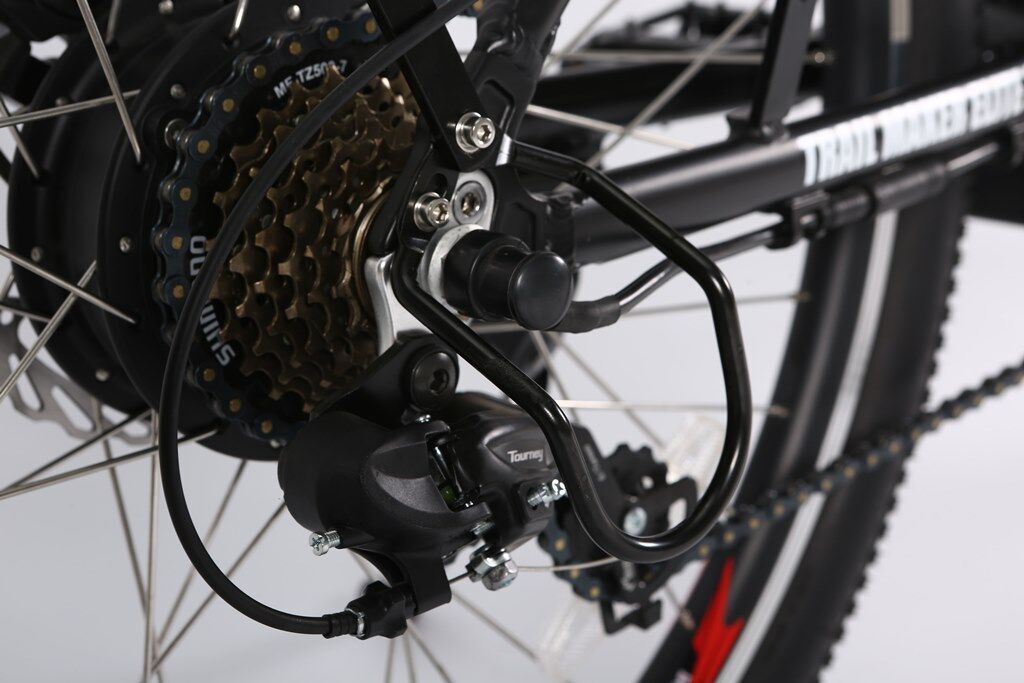

| Gears & Speeds | 7 Speed Shimano Tourney Gears & Shifter |
| Throttle Type | Variable Speed Control - Twist Throttle - or - Pedal & Power Assisted (PAS) - or - Turn Off Power & Pedal Only |
| PAS System | LED Panel with 4 Speed Options - Zero (pedal only)/Low/Med/High |

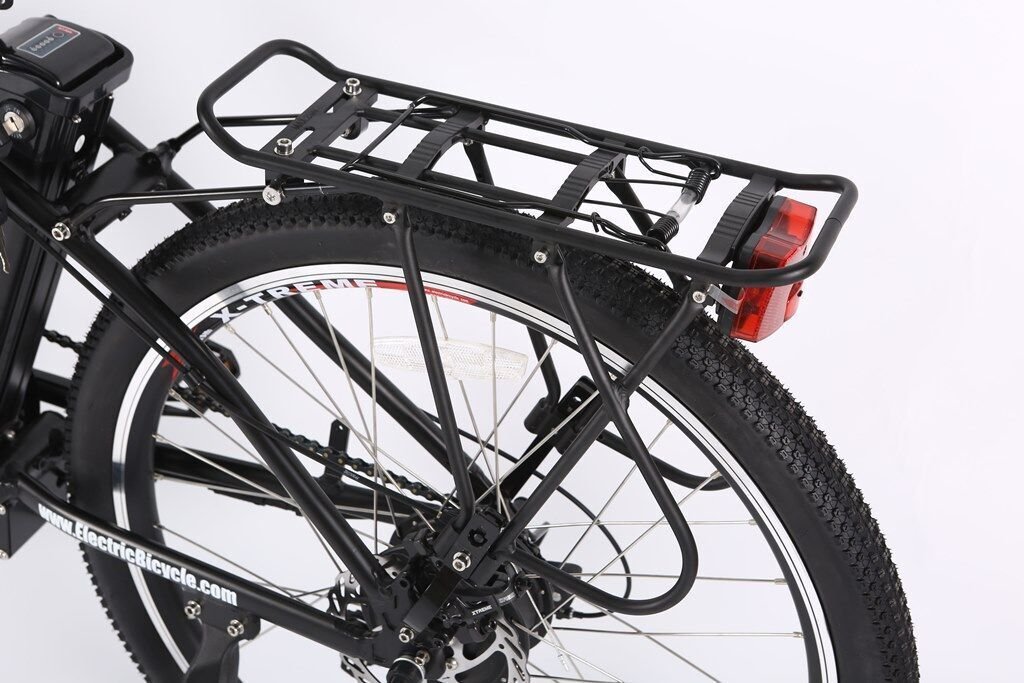

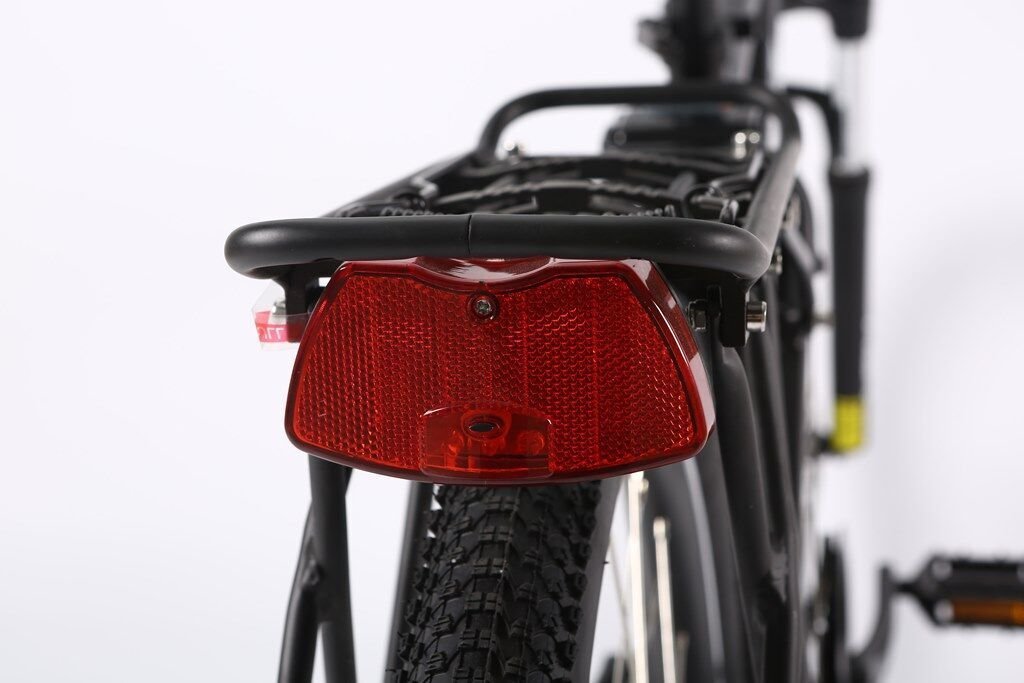

| Cargo Rack | Yes |

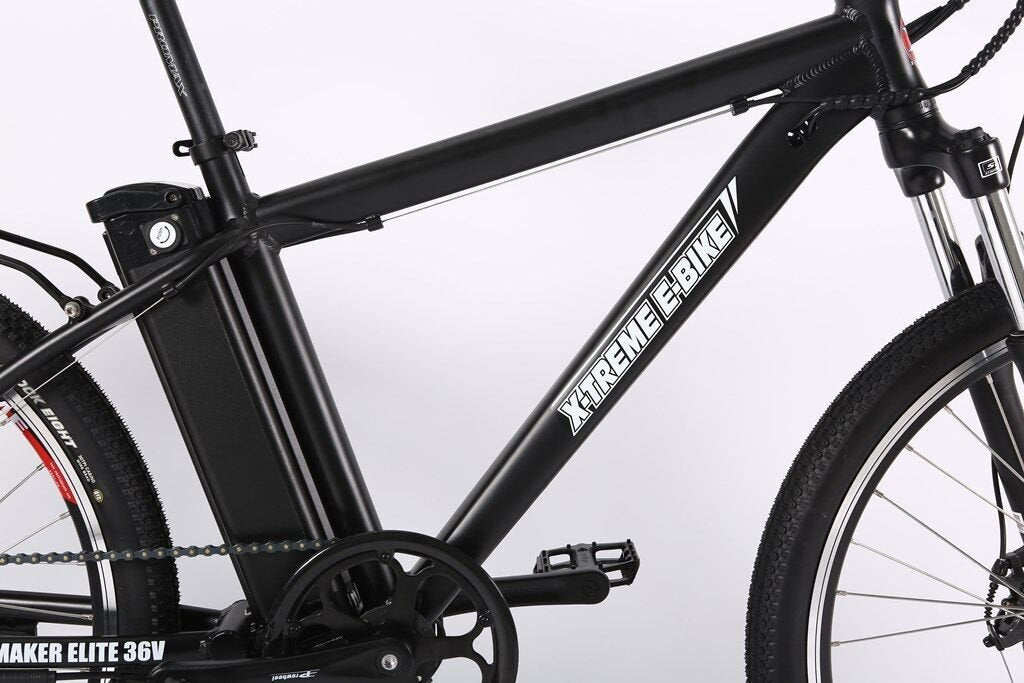

| Frame Type/Size | 100% Aluminum - Super Lightweight - Men's Frame |

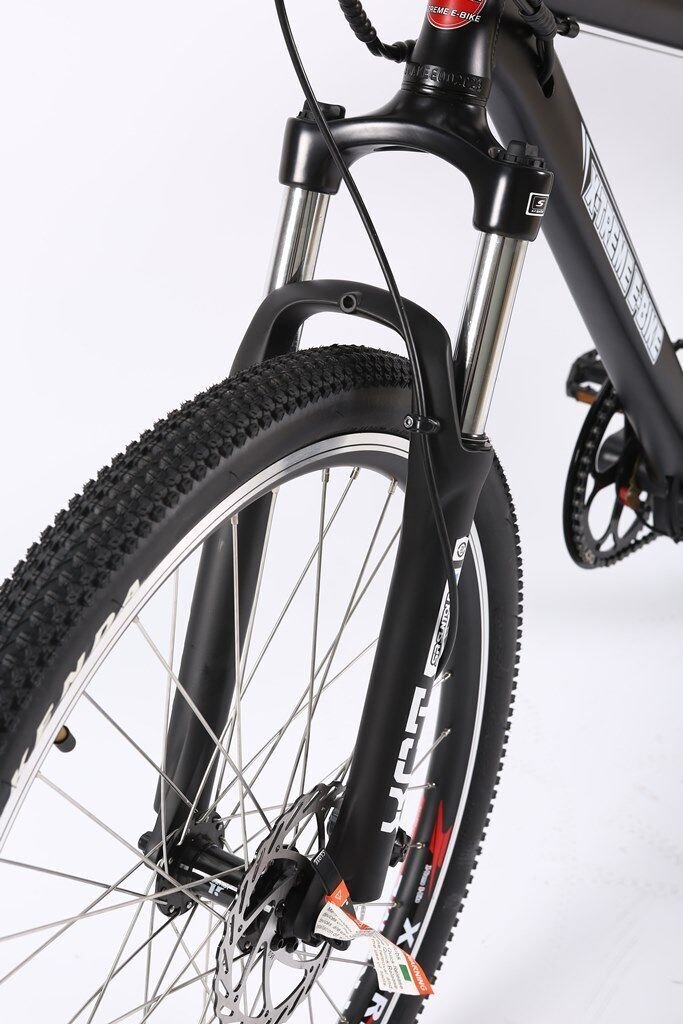

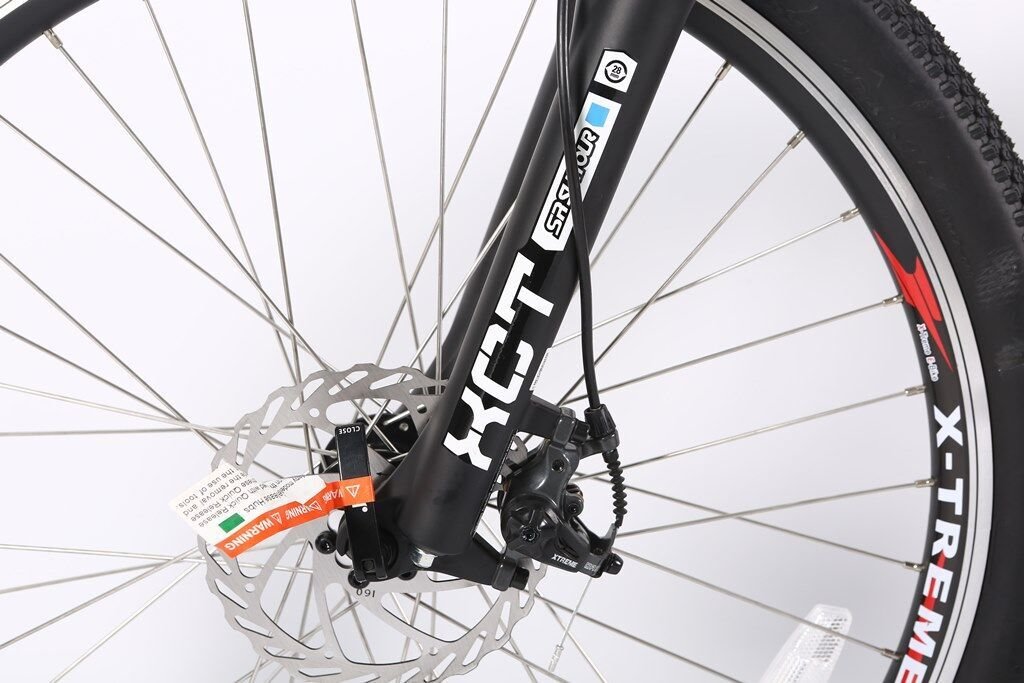

| Forks | SA Suntour XCT Front Forks |
| Suspension | Hydraulic Front Suspension included |

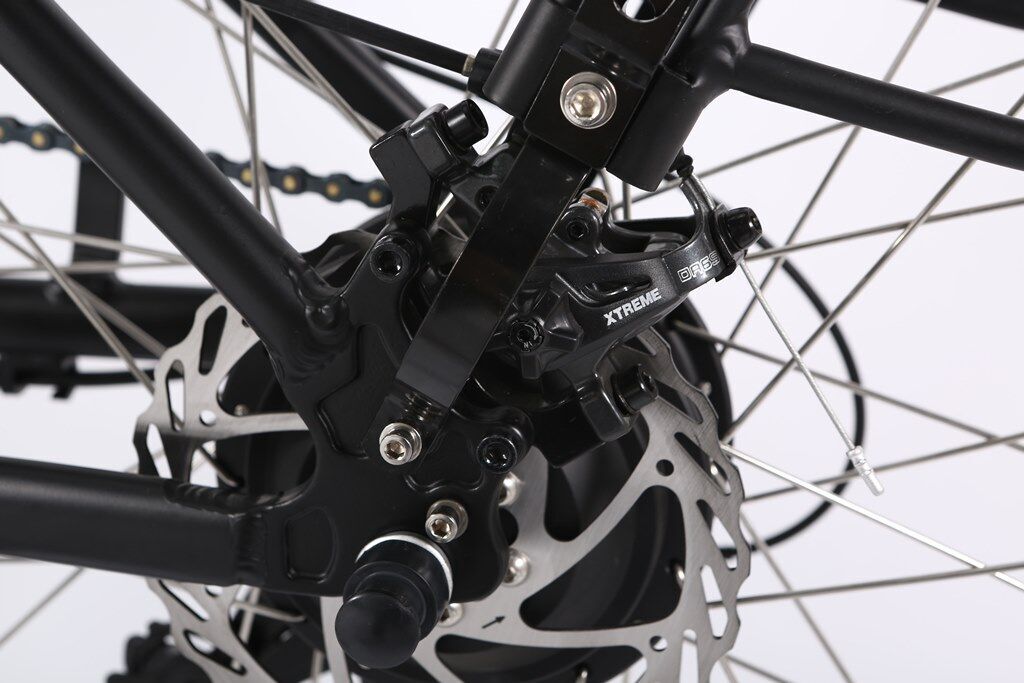

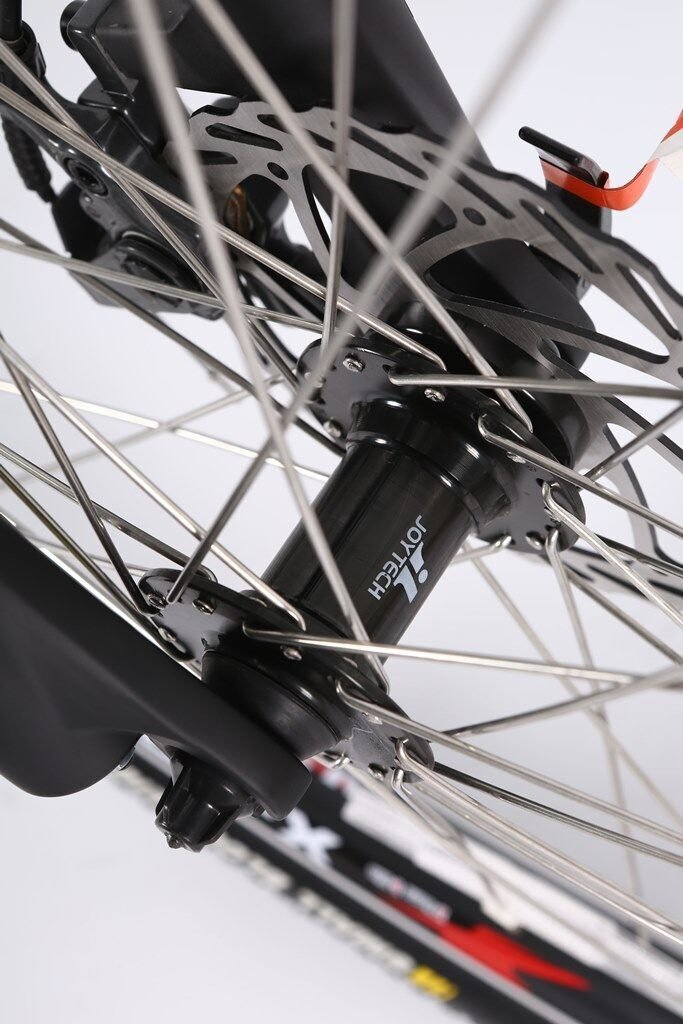

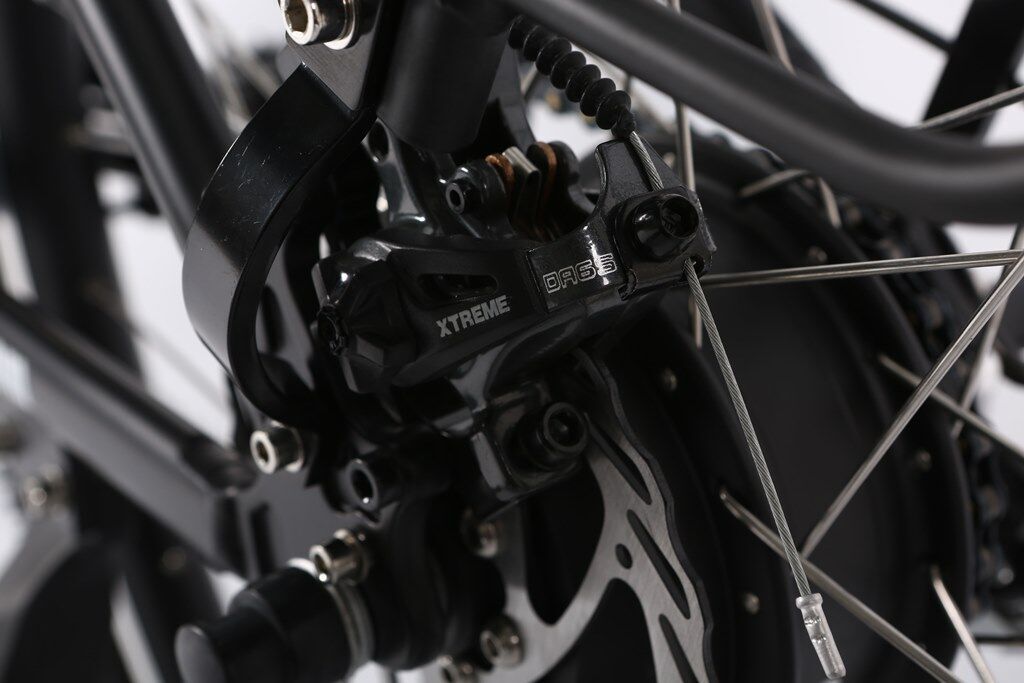

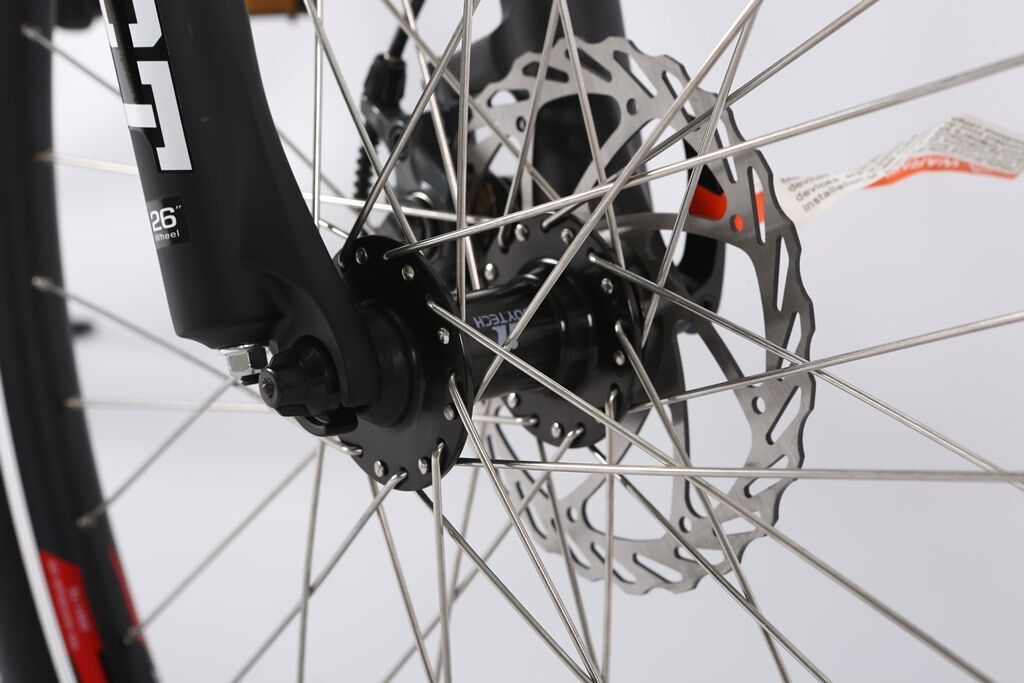

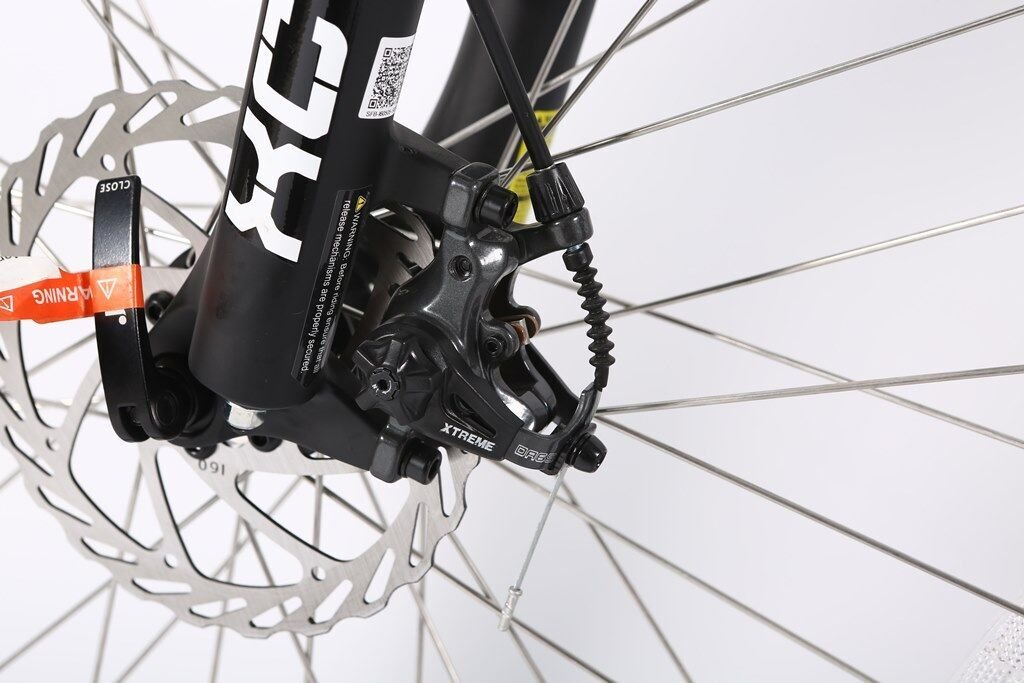

| Braking System | Front & Rear JAK Disk Brakes |

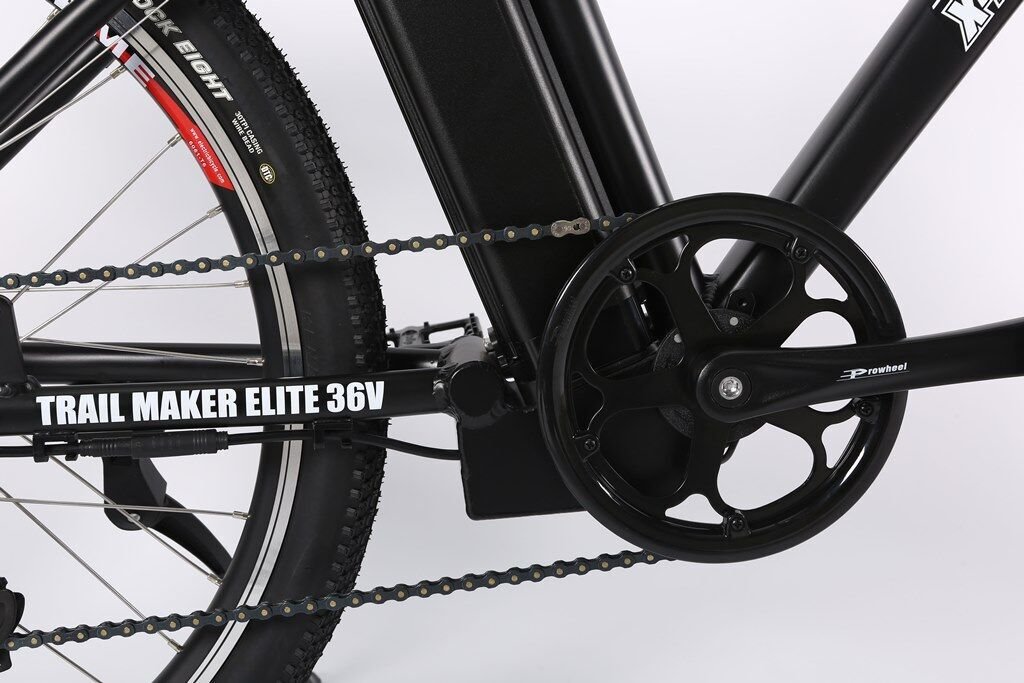

| Drive System | Chain Driven by Rear Hub Motor within rear rim or Pedal Power |
| Head Light | Yes - Battery Operated Snap-On LED (Not covered under warranty) |
| Bicycle Measurements | 72 Inches Wheel to Wheel - 25 Inches Width - 37 Inches to Handlebars - 34 3/4" to 39 Inches Seat Height |
| Carton Size (L x W x H) | 55 x 9 x 28 |
| Bicycle In Box Weight |
63 lbs.
|
| Bicycle Weight | 52 lbs. |
| Suggested Max Weight | 350 lbs. |
| Max Speed | 15 mph |
| Warranty | 1 Year Warranty & 1 Year Battery Warranty |
| Notes | *depends on rider weight & terrain |
You can email hello@upzy.com if you have any questions on the specs.
