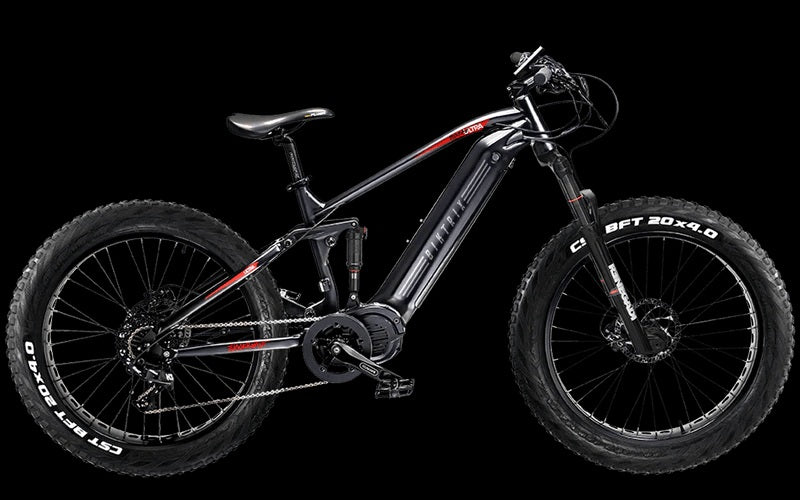

2024 Biktrix Juggernaut Ultra FS PRO 3 FAT Mid Drive Full Suspension Electric Bike

2024 Biktrix Juggernaut Ultra FS PRO 3 FAT Mid Drive Full Suspension Electric Bike



Save 15%
$ 4,899.00
$ 4,145.00


Notify me when back in stock



Free Shipping.  Please note that shipping time is about 2-3 weeks due this being made to order.

The Biktrix Juggernaut Ultra FS PRO 3 Mid Drive Full Suspension Electric Bike features top-of-the-line components and the most powerful torque-sensing mid-drive motor in the industry.

The Juggernaut Ultra FS Pro 3 the best-built full-suspension electric bike on the market today.

 With a quality FS system, both wheels stay connected with the ground. That means better handling and higher speeds on tough terrain. This electric bicycle is built for the off-road trails.



Features:

Bafang Ultra M620 Mid-Drive System

The Bafang M620 system features the G510 electric motor with over 1500 watts of peak power, 160Nm of torque and torque-sensing assist. Span cities, climb hills, and explore all the places you want to go with ease.

Rockshox Rear Suspension

The rear suspension sets the Ultra FS Pro apart from the rest of our lineup, making it the ultimate eBike. Take on any trail with maximum comfort and control


Front Suspension

The Biktrix Inverted Suspension Fork features 140mm of travel, adjustable preload and adjustable lockout

Drivetrain

The SRAM NX 11-speed drivetrain has the versatility to provide max torque while climbing hills and max speed on the flats.

Hydraulic Disc Brakes

When it's so easy to go fast on an electric bike, you need strong stopping power. These hydraulic disc brakes will swiftly and reliably bring you to a halt.

LCD Display

The LCD Display shows you all kinds of important information about your ride including speed, battery life, range, odometer, pedal assist level, and more.

Thumb Throttle & Control Pad

With just a push of the thumb you can access the motor's full power! The control pad allows you to turn the bike on/off and adjust your settings.

Integrated Front Light

This bright LED light is powered by the bike's battery and can be turned on/off with a button on the handlebar control pad.

Product Specifications:

  • FRAME:  6061 Aluminum
  • BRAKES:  Biktrix Dual Piston Hydraulic w/180mm Rotors
  • BATTERY SIZE: Total Capacity of 52V 34.5Ah 1794Wh:
    52V 17.5Ah 910Wh (Internal Battery) +
    Up To 52V 17Ah 884Wh (External Range Extender Battery)
  • FORK:  Biktrix Inverted Air Fork w/100mm Travel, Lockout and Preload
  • BRAKE LEVERS:  Biktrix Adjustable w/ Integrated Brake Cutoff
  • HEADSET:  Threadless 1-1/8 1-1/2 Tapered
  • HANDLEBAR:  700mm Wide w/25mm Rise, 31.8mm Clamp
  • SHIFTER REAR:  SRAM NX 11 Speed Trigger Shifter
  • STEM:  90mm Solid
  • REAR DERAILLEUR:  SRAM NX 11 Speed
  • GRIPS:  Velo Bolt On MTB Grips
  • CASSETTE:  SRAM 11-42T
  • SEAT POST:  31.6mm Aluminum
  • CHAIN:  KMC e11S - 130 Links
  • SEAT POST CLAMP:  QR
  • CRANK SET:  44T Chainring w/ 170mm Arms
  • SADDLE:  Velo Plush
  • BOTTOM BRACKET:  Bafang ISIS
  • MOTOR:  Bafang Ultra M620
  • FRONT HUB:  150mm Thru 36H
  • DISPLAY:  DPC-18
  • FRONT AXLE/SKEWER:  15mm Thru Axle
  • LIGHTS:  Integrated Headlight
  • REAR HUB:  197mm THRU 36H
  • THROTTLE:  Thumb Throttle
  • REAR AXLE/SKEWER:  12mm THRU Axle
  • ASSIST LEVELS:  1-5
  • RIMS:  Black 26" with round cutouts, Solid Black 27.5"
  • ASSIST TYPE:  Torque + Cadence
  • TIRES:  26x4", 27.5x3", 26x4.8"
  • OTHER:  2-Bolt Kickstand

Size & Fittings:

17" M FRAME
19" L FRAME
21" XL FRAME
1 Effective Top Tube Length 580 mm 22.8 inches 600 mm 23.6 inches 600 mm 23.6 inches
2 Seat Tube Length (Classic Bike Size) 430 mm 16.9 inches 480 mm 18.9 inches 520 mm 20.5 inches
3 Reach 440 mm 17.3 inches 460 mm 18.1 inches 460 mm 18.1 inches
4 Stack 540 mm 21.3 inches 590 mm 23.2 inches 590 mm 23.2 inches
5 Chainstay Length 510 mm 20.1 inches 510 mm 20.1 inches 520 mm 20.5 inches
6 Standover Height 730 mm 28.7 inches 740 mm 29.1 inches 770 mm 30.3 inches
7 Head Angle 63 ° - 63 ° - 63 ° -
8 Seat Angle 72 ° - 72 ° - 72 ° -
9 Head Tube Length 160 mm 6.3 inches 160 mm 6.3 inches 160 mm 6.3 inches
10 Fork Length 540 mm 21.3 inches 540 mm 21.3 inches 540 mm 21.3 inches
11 Front Center 810 mm 31.9 inches 810 mm 31.9 inches 810 mm 31.9 inches
12 BB (Bottom Bracket) Drop 40 mm 1.6 inches 40 mm 1.6 inches 40 mm 1.6 inches
13 Fork Offset 40 mm 1.6 inches 40 mm 1.6 inches 40 mm 1.6 inches
14 Wheelbase 1320 mm 52 inches 1330 mm 52.4 inches 1340 mm 52.8 inches
15 Total Length 2030 mm 79.9 inches 2040 mm 80.3 inches 2060 mm 81.1 inches
16 Max Seat Height 1040 mm 40.9 inches 1080 mm 42.5 inches 1120 mm 44.1 inches
17 Min Seat Height 840 mm 33.1 inches 880 mm 34.6 inches 940 mm 37 inches
18 Handlebar Height 1020 mm 40.2 inches 1060 mm 41.7 inches 1060 mm 41.7 inches
19 Weight (Without Battery) 32.6 kg 71.9 lb 32.6 kg 71.9 lb 33.6 kg 74.1 lb
