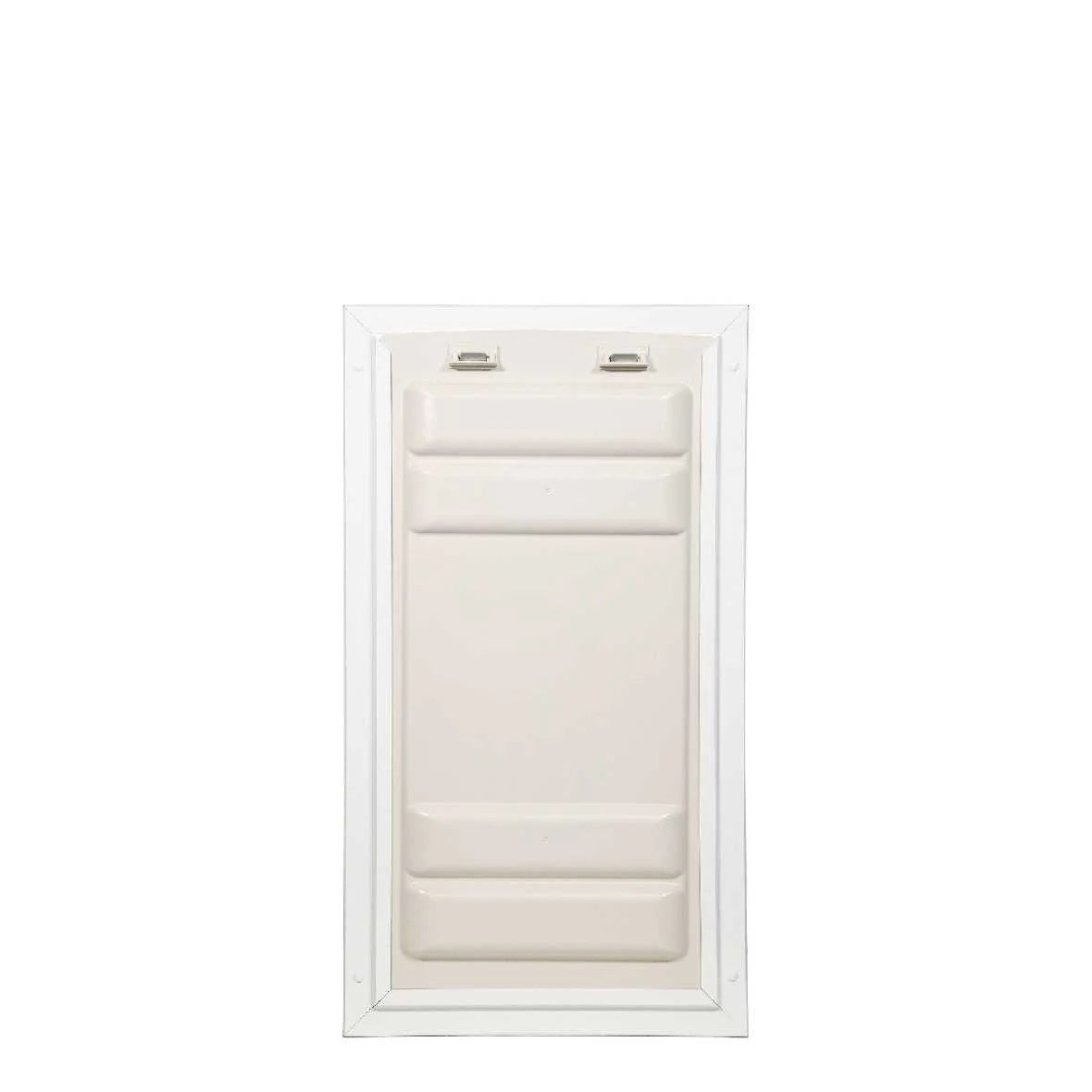

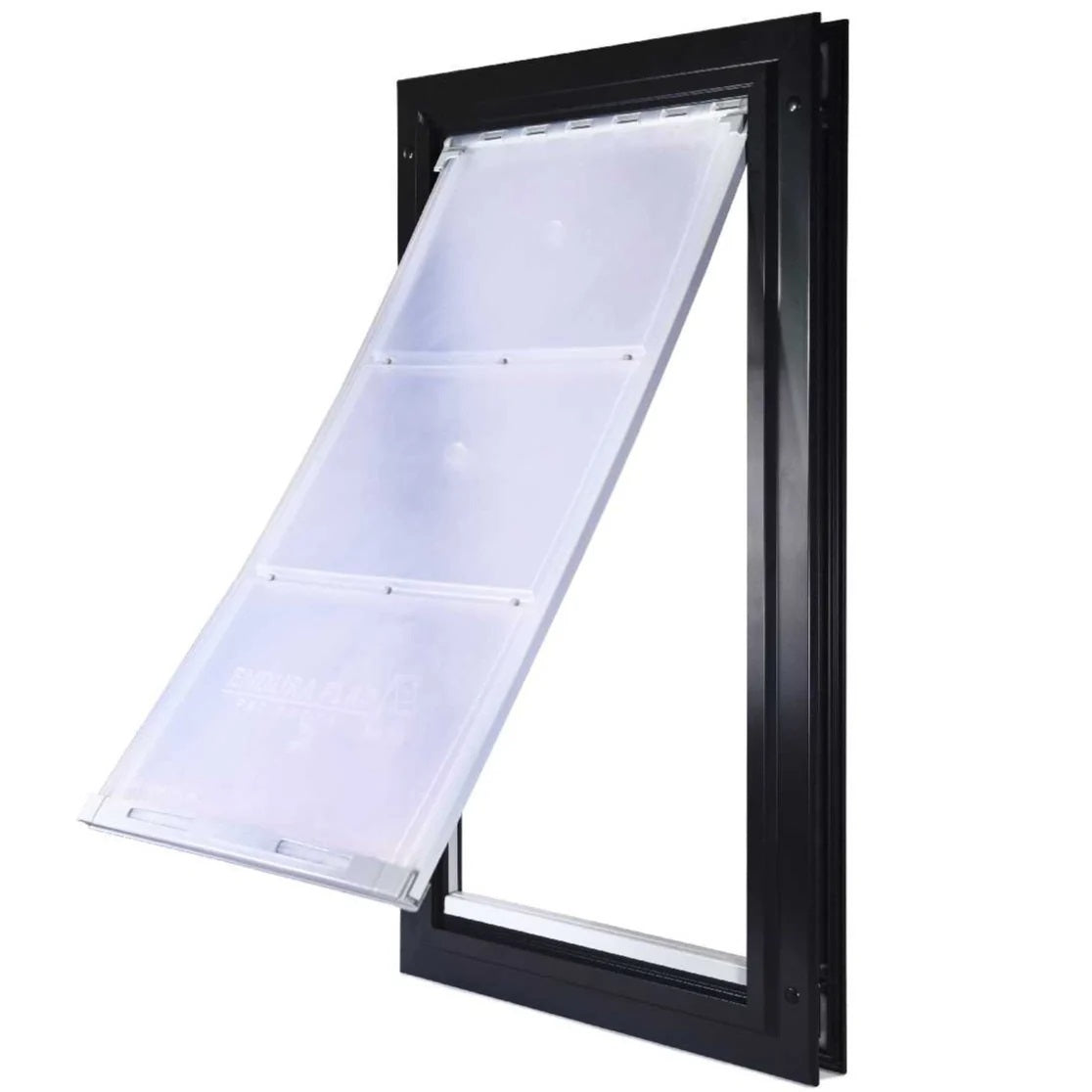

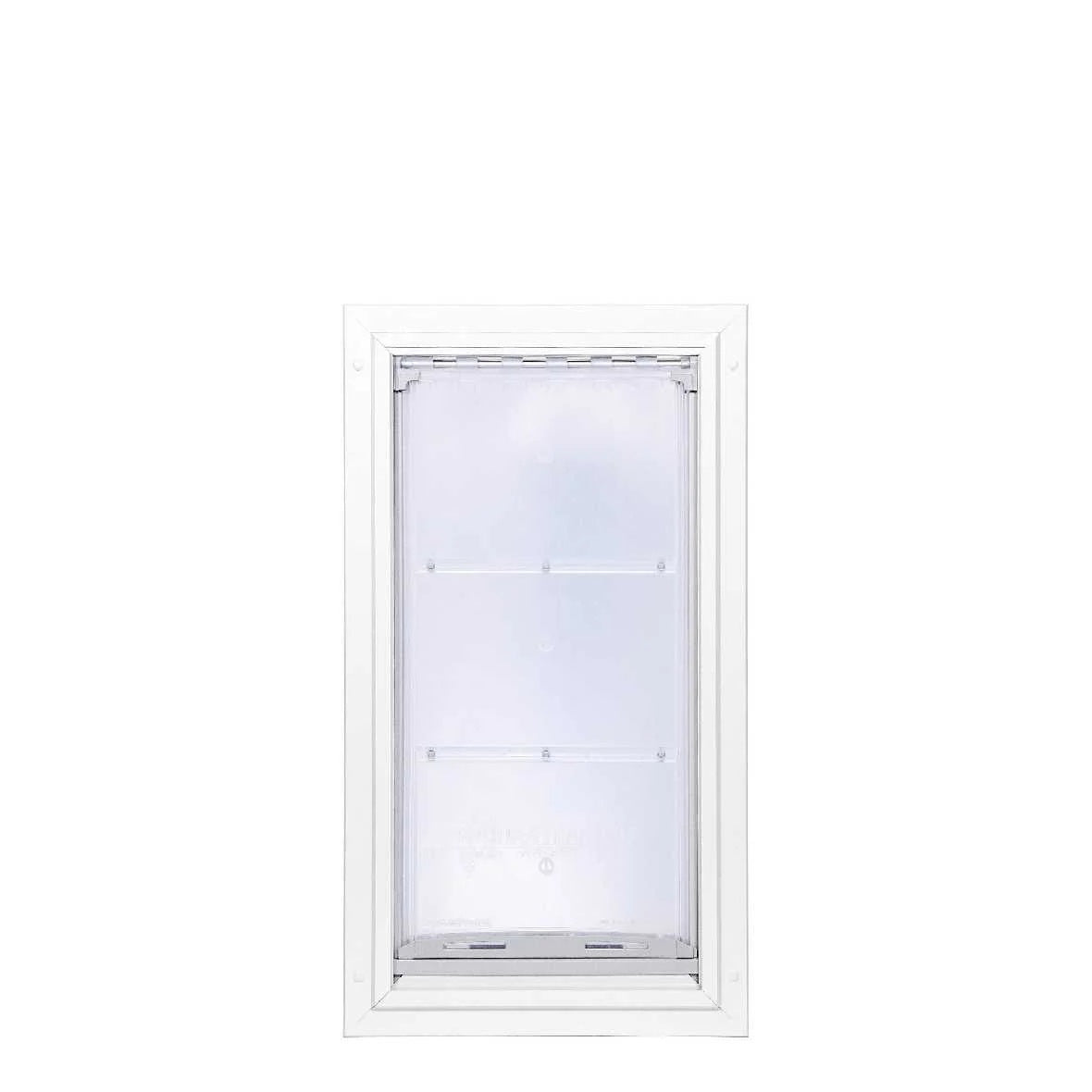

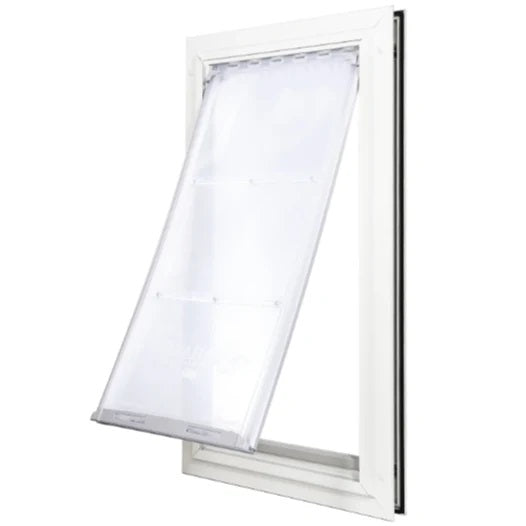

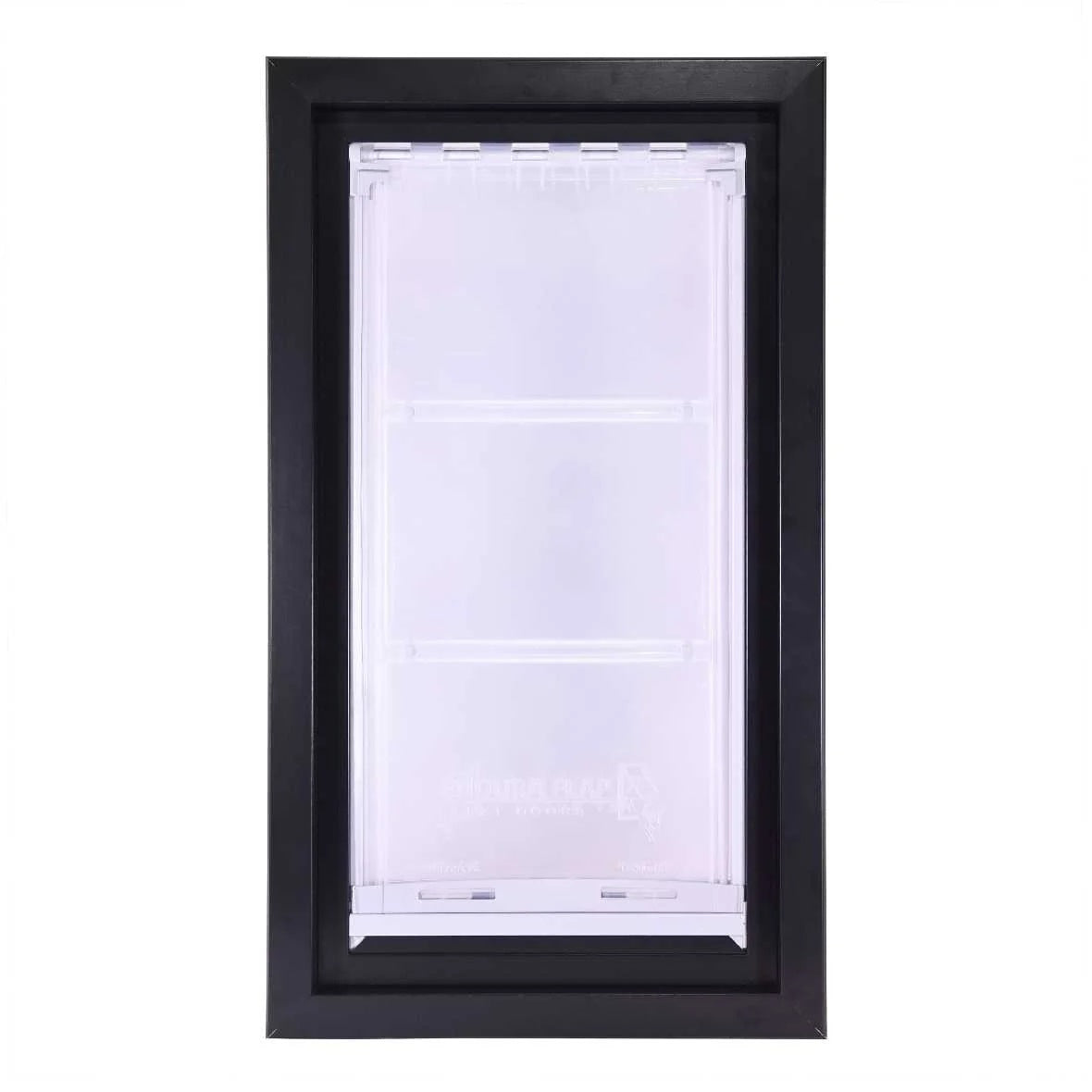

Endura Patio Pacific SINGLE FLAP for THIN DOORS Pet Door

The Endura Patio Pacific SINGLE FLAP for THIN DOORS Pet Door is ideal for thin doors 1/2" up to 1-1/8" thick, compatible with various door types.

Airtight magnetic seal provides excellent insulation, withstanding winds up to 50 mph
Flap remains flexible in extreme temperatures from -40°F to 110°F.

Durable aluminum frame with customizable magnet strength for pet training and wind resistance.

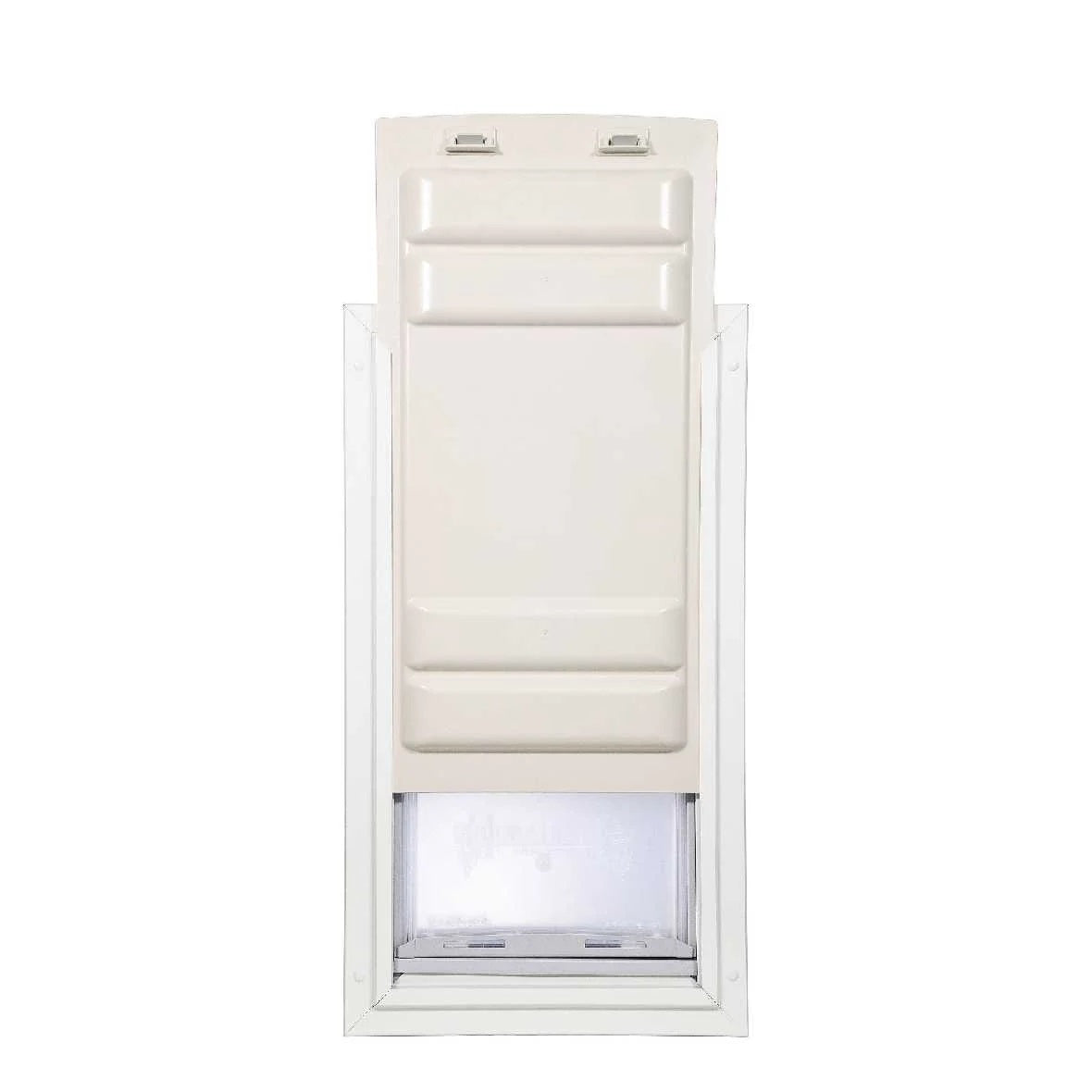

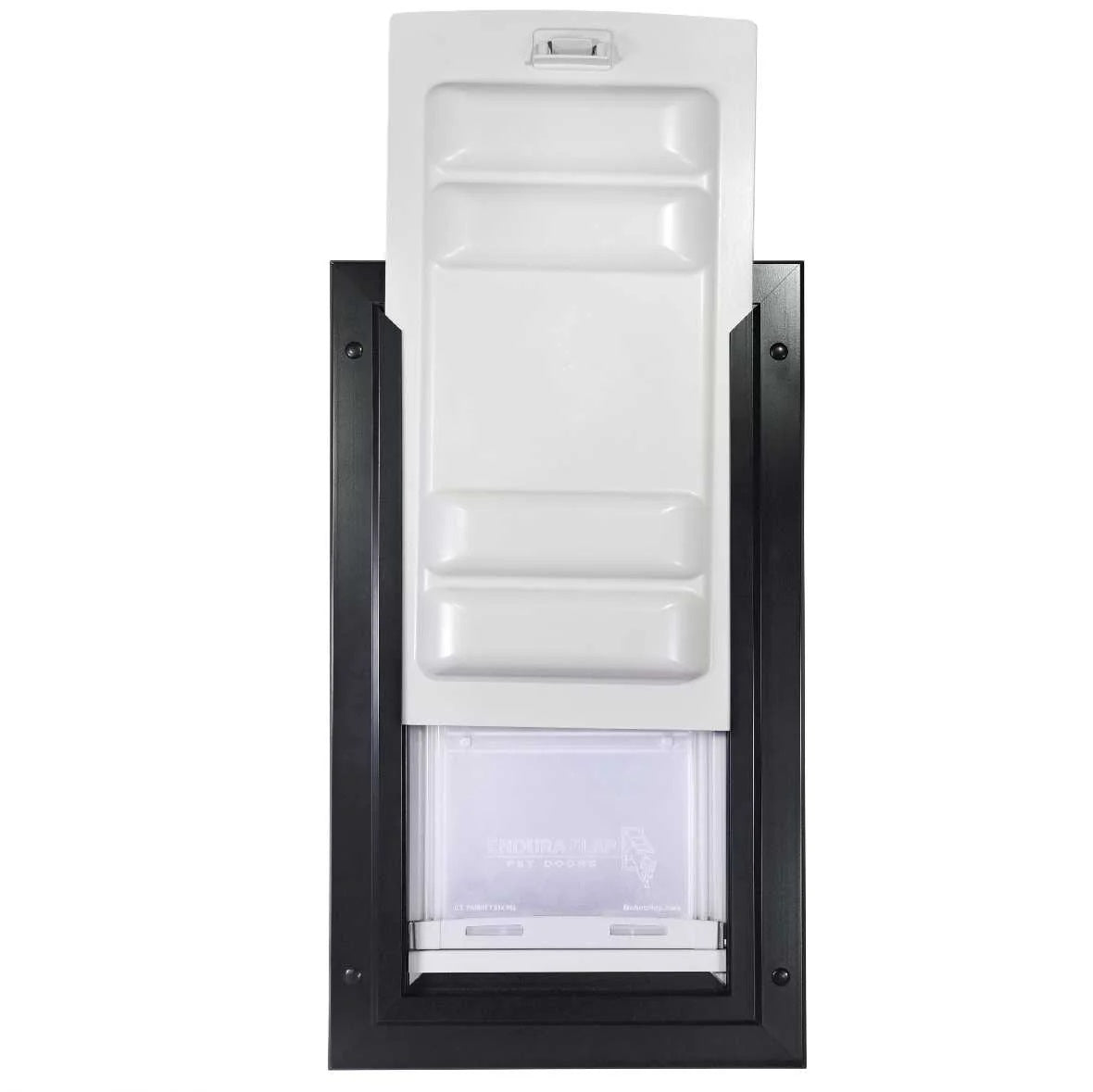

Sturdy locking cover to block access when needed (inside frame only).

Benefits:

• Designed specifically for thin doors: Fits solid core doors, hollow core doors, metal doors, and storm doors 1/2" up to 1-1/8" thick

• Superior insulation: Airtight magnetic lining around the flap ensures maximum energy efficiency and weather resistance

• Resilient in extreme conditions: Flap withstands winds up to 50 mph and remains flexible in temperatures as low as -40°F

• Durable and sleek: Sturdy aluminum frame with an attractive design that complements any home's aesthetic

• Accommodates pets of all sizes: Taller and narrower flap design caters to a range of pet sizes and needs

• Adjustable magnet strength: Customize the pet door's magnet strength for training purposes or to increase wind resistance

• Secure Locking Cover: Features a locking cover as strong as 16 gauge steel to block access when needed

• Easy installation: Installation in thin doors is made simple with the Endura Flap Single Flap Pet Door

• Made in the USA: High-quality construction and materials ensure long-lasting performance

• Suitable for various climates: Designed for four-season use, maintaining comfort and insulation in severe weather conditions

• Adaptable for pets' needs: Magnets can be removed or adjusted to better suit pets' preferences and abilities

• Highly praised by homeowners: Appreciated for its sleek design, durability, and superior insulation properties.

Product Specifications:

Parts:

• 1 Installation Template

• Short Screws (1")

• Medium Screws (1-1/4")

• Long Screws (1-1/2")

• 4 Screw Covers

• 1 Installation Magnet

• 1 Flap Frame

• 1 Trim Frame1 Tube of Silicone

• 1 Locking Cover

Tools:

• Pencil

• Drill with 3/8" (9,5 mm) drill bit

• Level

• Measuring Tape

• Jigsaw or Reciprocating Saw

Please Note: If the magnets seem too strong for your pet, you can remove some of them to better suit their needs. On some sizes

Watch the Installation Instructions:



Size Chart:

• Small; Single Flap: 6"w x 11"h

• Medium; Single Flap: 8"w x 15"h

• Large; Single Flap: 10"w x 19"h

• Extra Large; Single Flap: 12"w x 23"h

• XX Large; Single Flap: 14" w x 27" h

Flap Dimensions:

• Single Flap: 6"w x 11"h

The entry way your dog goes through.

Outside Frame Dimensions:

• 10 1/8"w x 16 3/4"h

The outer edge of the pet door.

Find The Best Pet Door Size For My Pet

A. Pet Height:  inches

• Measure the height of your pet from the tallest point of your pet's back to the ground.

B. Pet Width:  inches

• Measure the width of your pet from the widest part from shoulders to shoulder.

My Pet has limited mobility. A pet who has trouble walking needs a taller pet door so that it will be easier for them to climb through.

Please read instructions & notes thoroughly before installation.

Single Flap Door Mount

Step 1 Prep Your Door

• If you have not yet measured your pet, watch this video to ensure the pet door will work.
• If possible, remove the door from its hinges using a screwdriver and hammer to tap out the hinge pins. Lay the door flap for installation. Tape the provided template to the door. The top edge of the cut-out line should be at least 3” (7,6 cm) above the pet's shoulders.
• Be careful not to cut too close to the bottom of the door as you may reduce the door's strength. Level the top edge of the cut-out line.

Step 2 Drill the Holes

• Once you are certain the pet door will work with your door, make sure the template is level, and mark the outline with a pencil. Remove the template and drill holes through the corners just inside of the lines using a ⅜” (9,5 mm) drill bit.
• Make sure your drill is kept level and drills all the way through the door.

Step 3 Saw An Opening

• Using a jigsaw, cut along the marked lines, making sure to cut straight.
• We recommend applying masking tape along the outside of the lines to protect your door from scratch marks as you cut with the jigsaw.

Step 4 Check Weatherstripping

• Ensure the weatherstripping is firmly pressed in the groove on both frames. Weatherstripping indicated in red.

Step 5 Position the Frames

• Place the trim frame on the outside of the door and the flap frame on the inside.

Step 6 Position Screws

• Select appropriate screws and insert them into the pet door from the inside.
• Do not fully tighten screws until all four screws are inserted and the pet door is leveled.
• Use the included installation magnet to help align the screws.

Door Thickness	Screw Length
1/2" to 3/4"	Short Screws (1")
3/4" to 1"	Medium Screws (1-1/4")
1" to 1-1/8"	Long Screws (1-1/2")

Step 7 Screw Door Into Place

• Once the pet door is leveled, tighten the screws so that the weatherstripping compresses.
• Do not overtighten.

Step 8 Attach Screw Covers

• Push the four screw covers in by hand to cover the screws.

Step 9 Seal With Silicone

• Apply silicone where the two frames meet. Also apply silicone where the outside frame meets the door.
