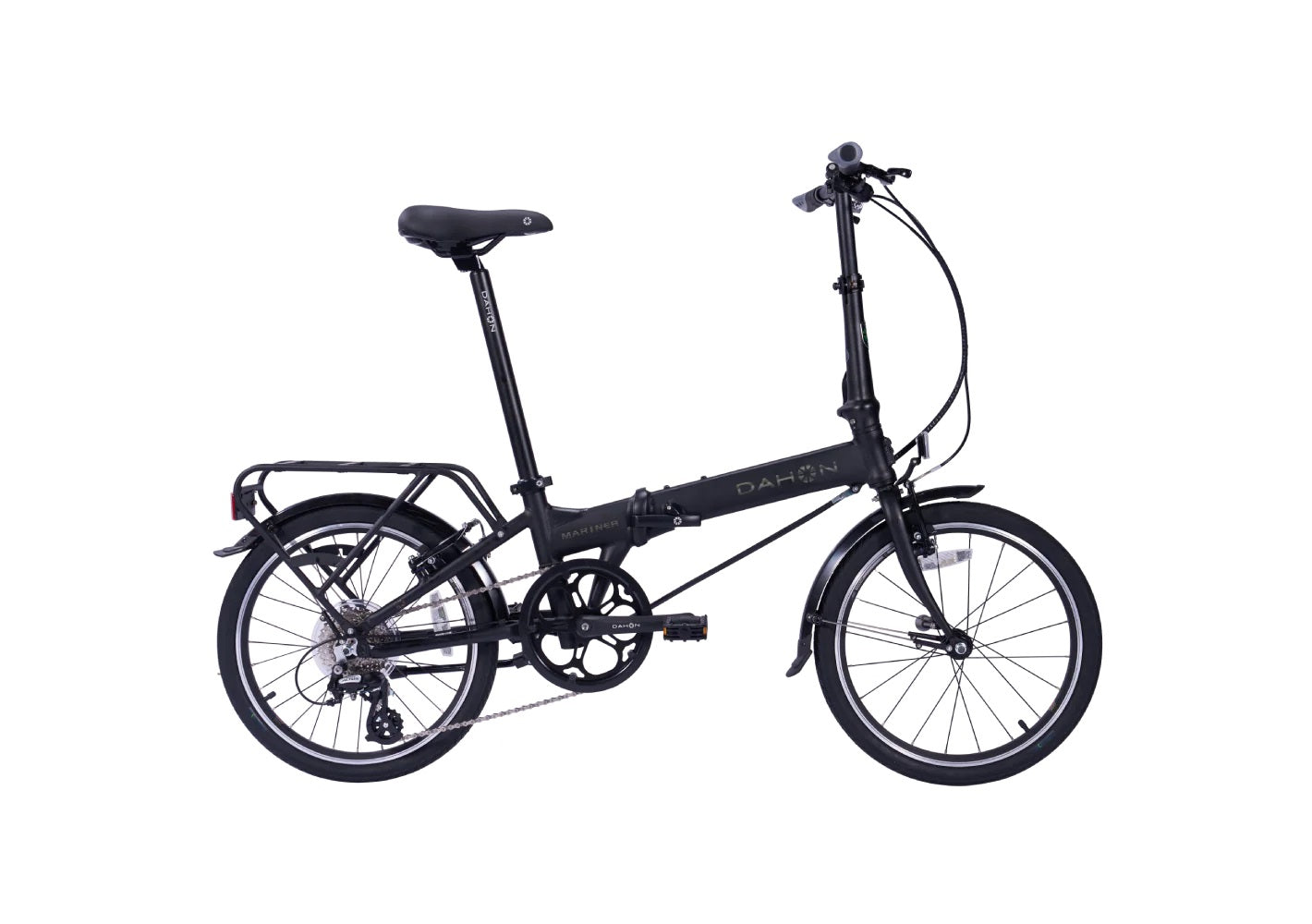

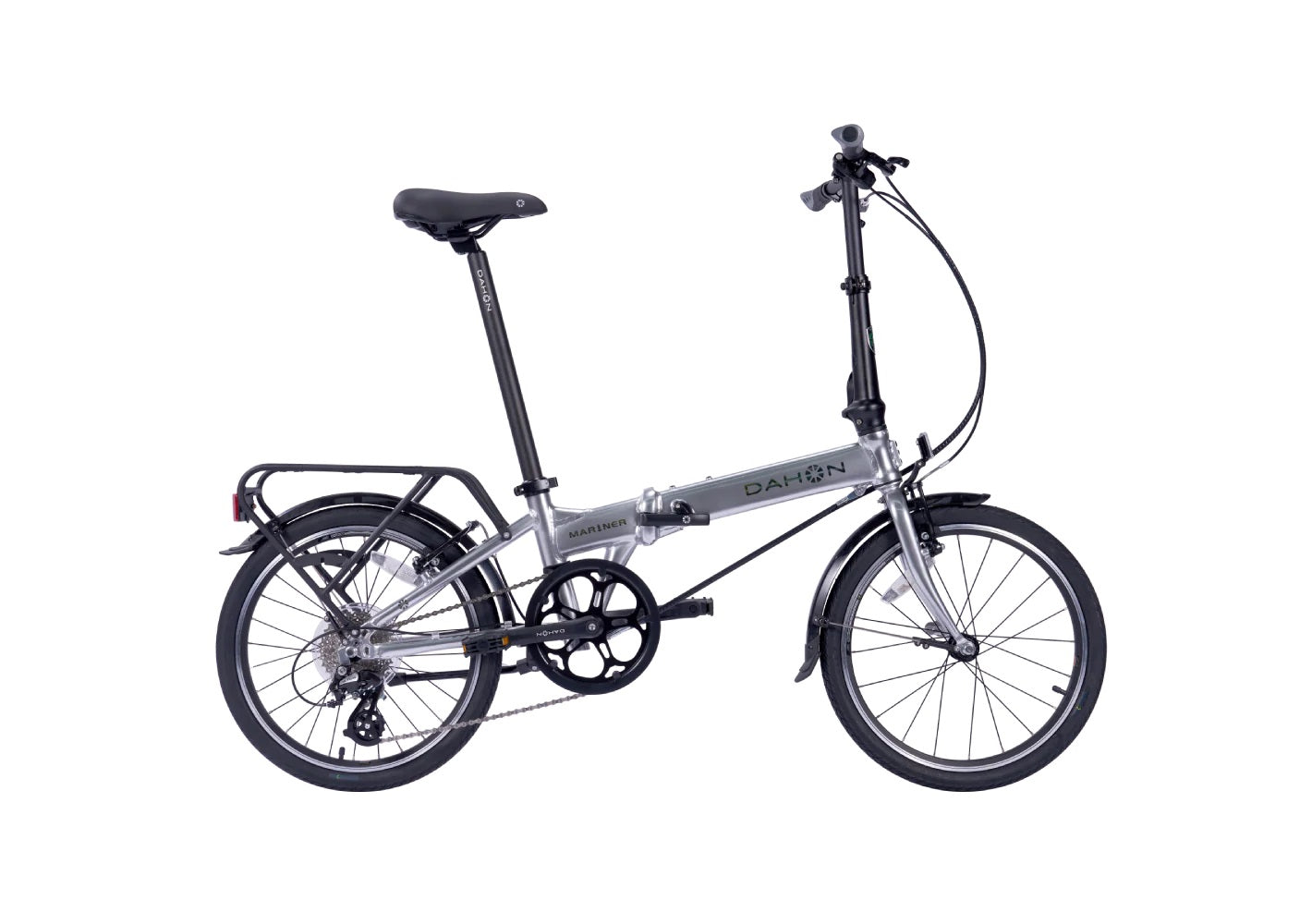

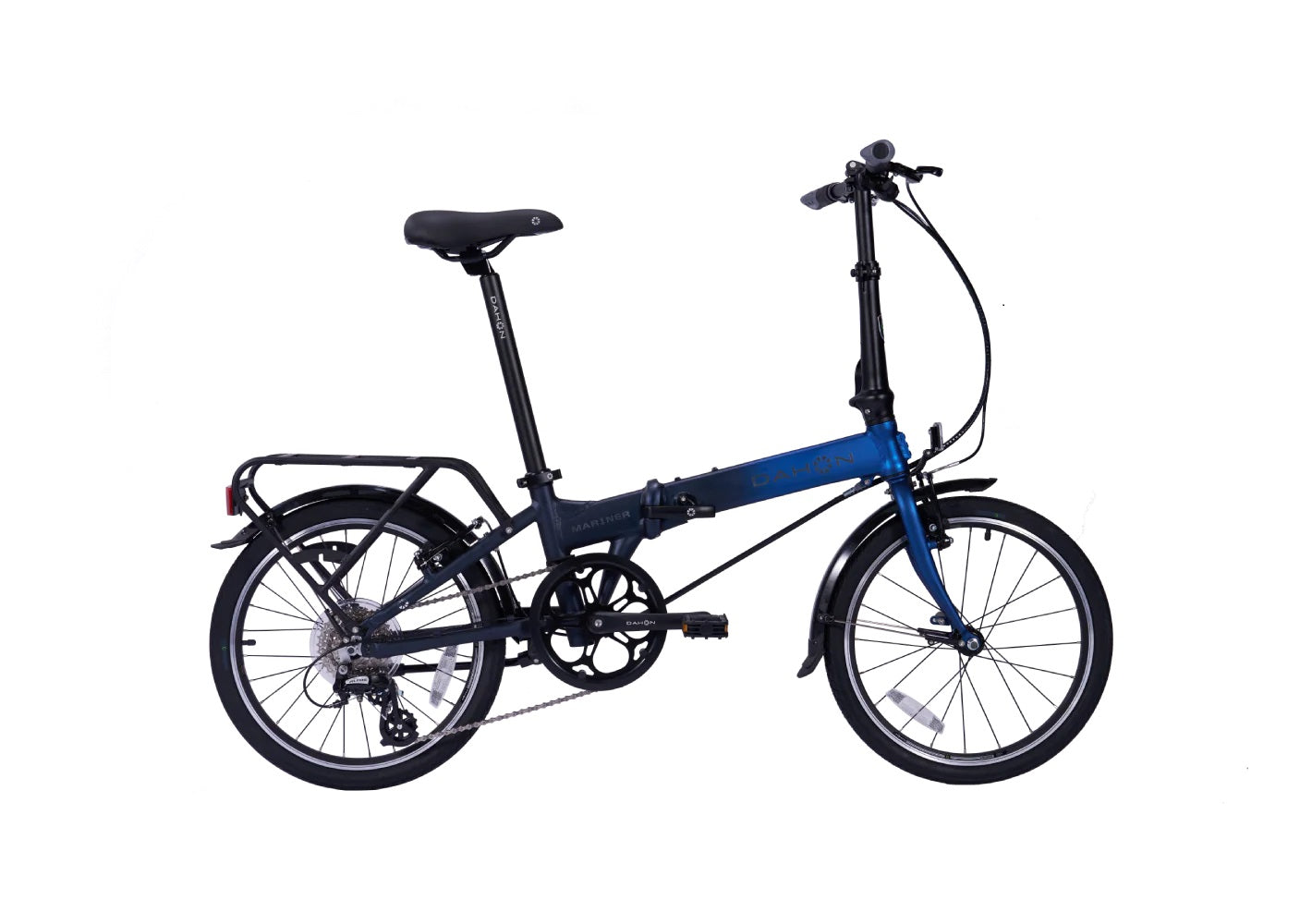

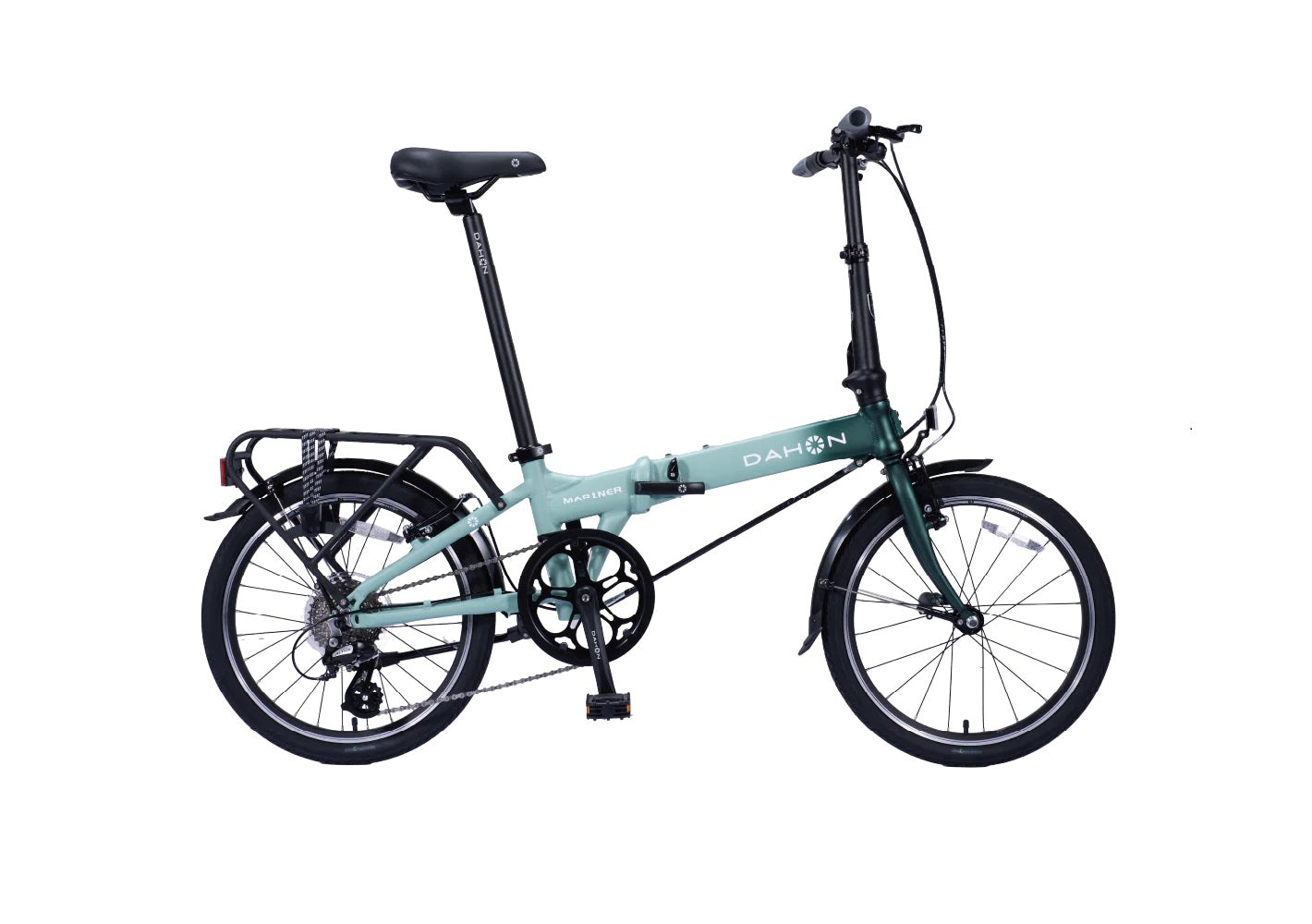

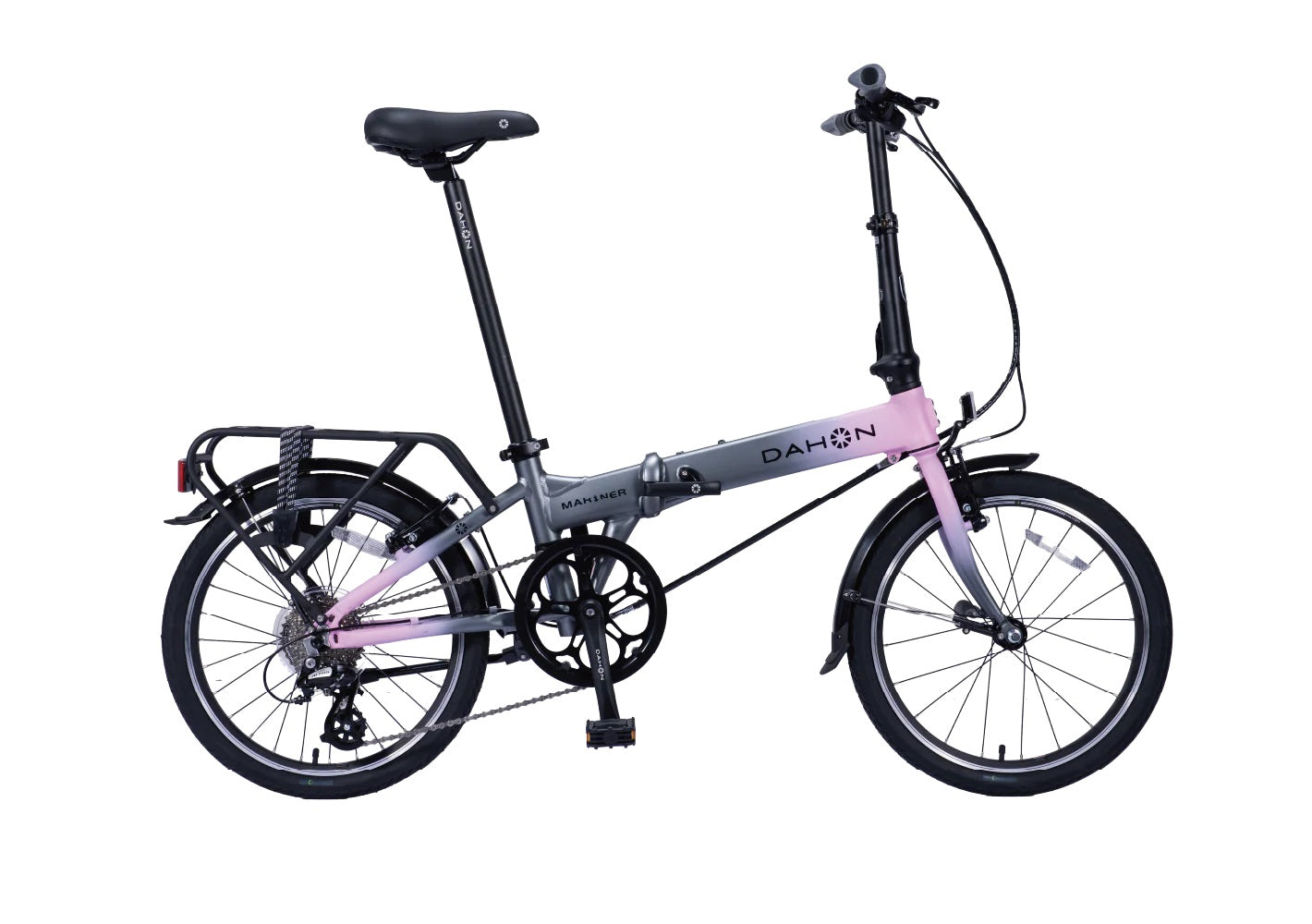

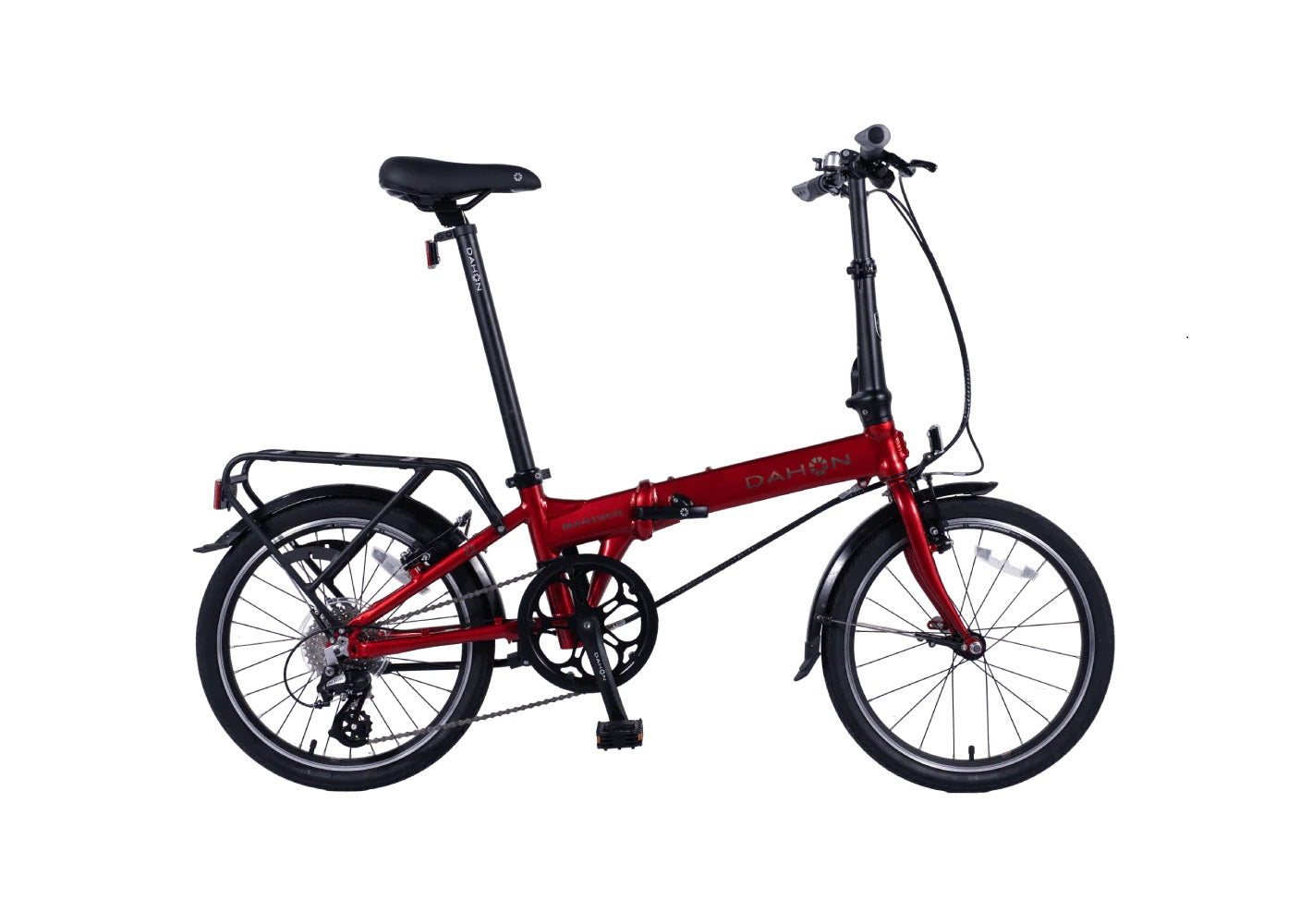

TheĀ Dahon Mariner D8 BRUSHED is the new version of Dahon's popular, best-selling folding bike.
For a good reason as it offers supreme components like thumbshifter and derailleurs from Shimano.
The Mariner comes with free rear rack andĀ an all alloy Crankset!Ā No more steel chainring but high quality replaceable ( great for customization of gear ratios ) alloy outer chainring and ALLOY chainring protector versus the old plastic one.

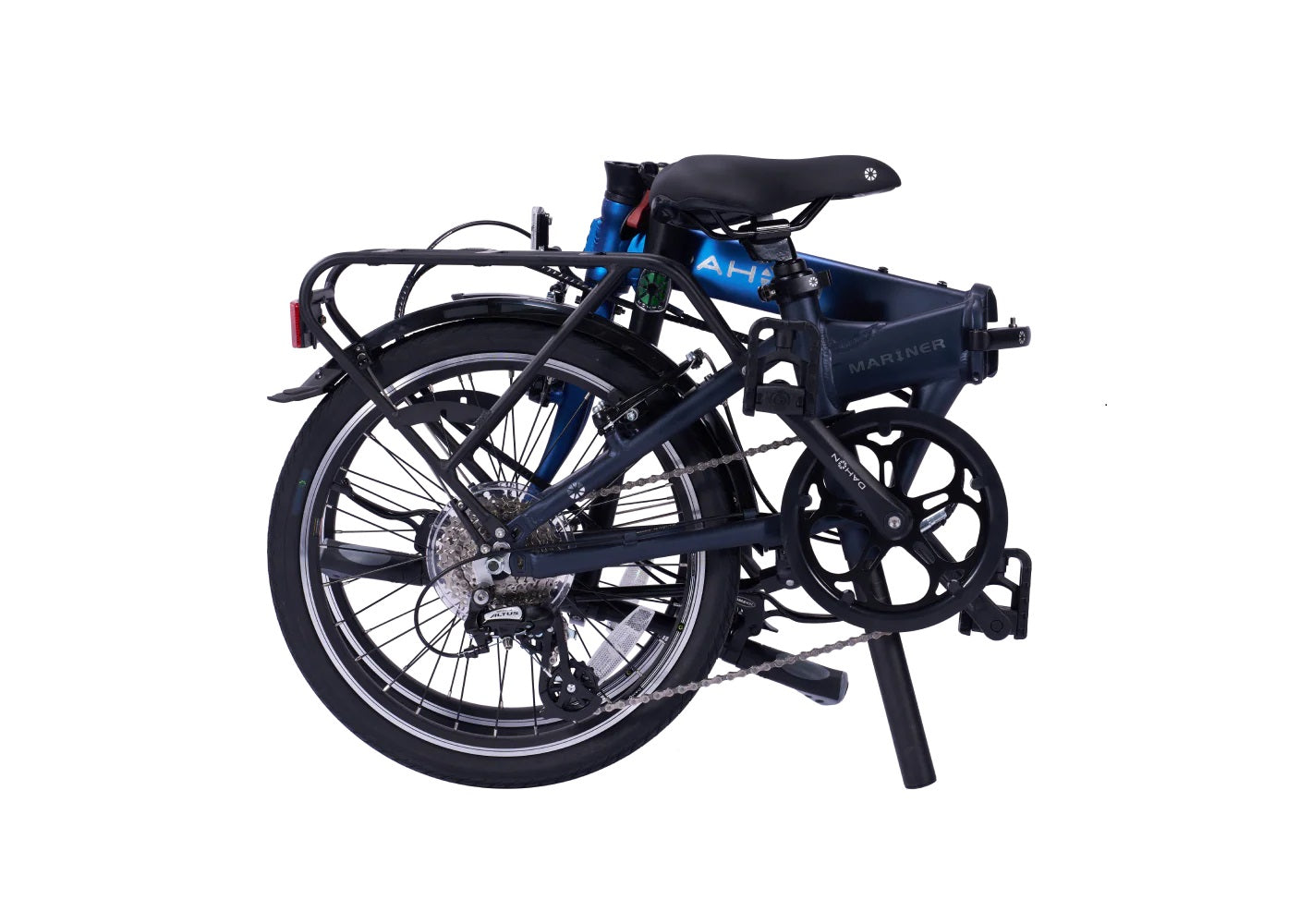

Watch how to fold and unfold your Dahon folding bicycle.
Ā
Product Specifications:
|
COLORS |
Brushed |
|
SPEEDS |
8 |
|
GEAR INCHES |
30" - 90" |
|
DISTANCE: SEAT POST TO HANDLEBAR |
Min: 610 mm (23.8) Max: 635 mm (24.8) |
|
DISTANCE: SADDLE TO PEDAL |
Min: 695 mm (27.1) Max: 955 mm (37) |
|
FOLDED SIZE |
29 x 66 x 89 cm (11.3" x 25.7" x 31.2") |
|
WEIGHT |
27 lbs. |
|
FOLDING TIME |
15 seconds |
|
SUGGESTED RIDER HEIGHT |
142 cm - 193 cm (4'8" - 6'4") |
|
MAX RIDER WEIGHT |
105 kg (230 lbs) |
|
Ā |
|
|
FRAME |
KM Series, 7005 aluminum, forged Lattice hinge, patented ViseGrip technology, forged drop outs, integrated head tube |
|
FORK |
Aluminium integrated, patented Fusion technology |
|
Ā |
|
|
HANDLEPOST |
Radius Telescopeā¢ adjustable, patented Fusionā¢ technology, forged aluminum |
|
HANDLEBAR |
6061-T6 aluminum, Flat bar |
|
HEADSET |
Dahon Fusion 2, Zero stack, cartridge bearings |
|
GRIPS |
XH-G51, 90 mm/125mm black with O |
|
SADDLE |
Dahon Comfort, VL3057A |
|
SEAT POST |
34 x 540 mm,SuperOversize , micro adjust, aluminum |
|
SEAT CLAMP QR |
Aluminum |
|
Ā |
|
|
BRAKES |
DHV-107 V, aluminum, li near spring, stinless flex noodle |
|
BRAKE LEVER |
DHL-42GProMax V, aluminum b racket/aluminum lever |
|
BRAKE CABLES & HOUSING |
2p.black |
|
Ā |
|
|
FRONT HUB |
FM31-f,14g,74 mm,20 holes, aluminum |
|
REAR HUB |
FM33-7,14g,130 mm,28 holes, aluminum |
|
SPOKES |
stainless steel, brass nipples |
|
RIMS |
Aluminum, silver anodized |
|
TIRES |
Schwalbe Citizen |
|
Ā |
|
|
SHIFTER |
Shimano Push Pull |
|
DERAILLEUR |
Shimano |
|
CASSETTE |
CS-HG20, 8 speed, 11-32 teeth |
|
CRANKSET |
Cold forged all alloy with interchangeable chainring, hand-polished, 53 teeth, alloy chainring protector |
|
BOTTOM BRACKET |
CH, chromoly axle |
|
CHAIN |
KMC Z-51,Anti Rust |
|
PEDALS |
NW 319, folding, non-slip |
|
Ā |
|
|
CHAINGUARD |
ALLOY CNC Chainring protector |
|
FENDER |
SKS |
|
KICKSTAND |
Aluminum, Dacromet bolt |
|
CLIP SYSTEM |
Magnetix system |
|
WHEEL REFLECTORS |
Yes |
|
FRONT & REAR REFLECTORS |
Yes |
|
Carrier |
Dahon ALloy |
|
Fenders |
SKS ChromoPlastics |
| Ā |
Attention: Ā Before your first ride, you must have your bicycle thoroughly checked and adjusted by a professional bicycle technician. Ā This final adjustment will activate your warranty and ensure that your bicycle is optimally adjusted for safety and performance.
Kindly note that bike specs are subject to change without notice, at full manufacturer's discretion.Ā If there is a change, it will be minor such as cable color etc.Ā You can reach out to us first if you want to confirm specs.Ā
