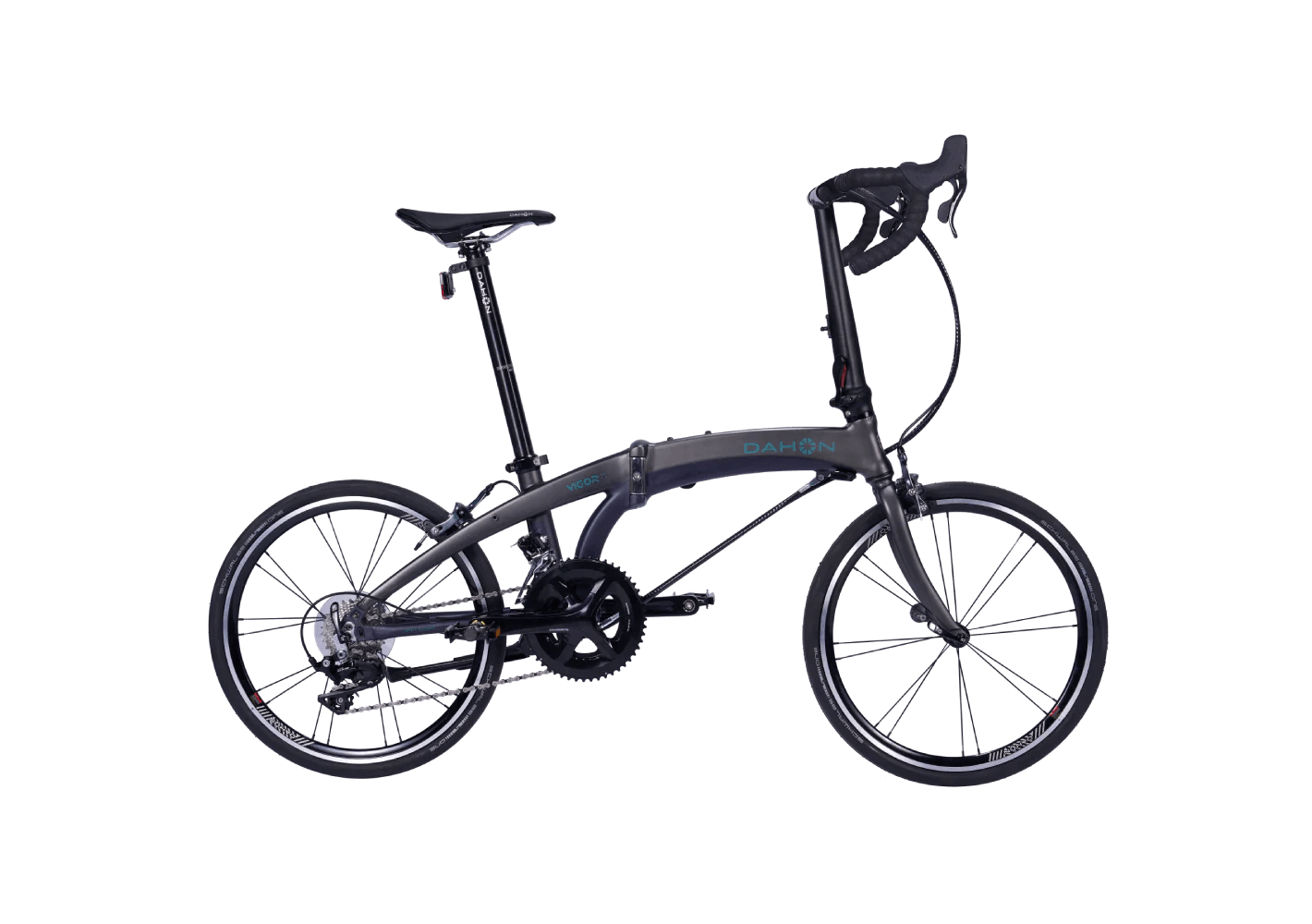

Dahon VIGOR LT 22 Speed Folding Bike

• Unmatched Speed & Precision: Equipped with a premium Shimano 22-speed drivetrain and Shimano Tiagra braking system, this bike delivers racing-grade shifting and responsive stopping power for total control at high speeds.
• Ultralight & Rigid Frame: Weighing in at just 24 lbs, the Vigor LT features DAHON’s patented DELTECH technology. This diagonal support cable increases frame rigidity by 15%, giving you a 5-10% speed boost by minimizing energy loss during power transfer.

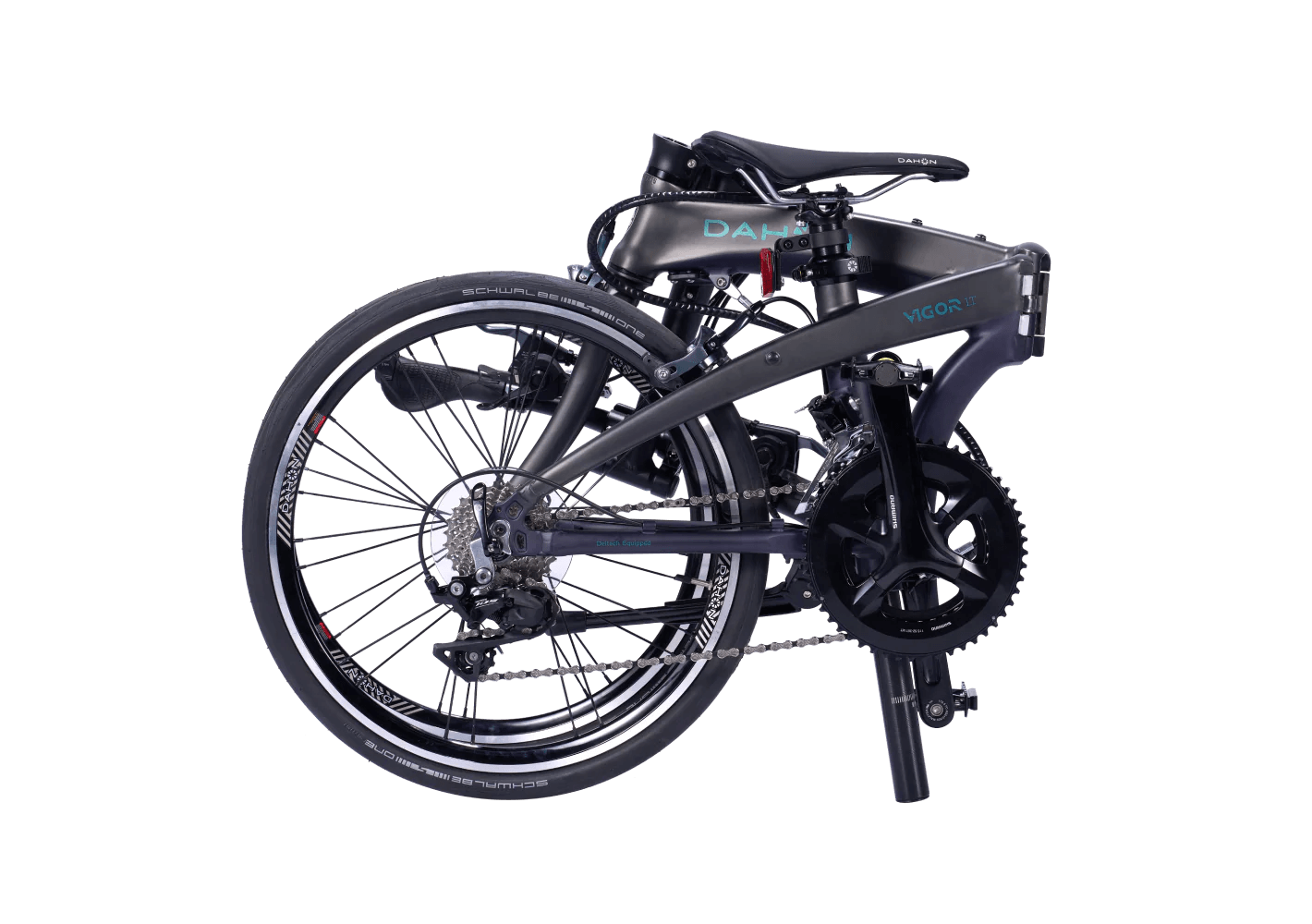

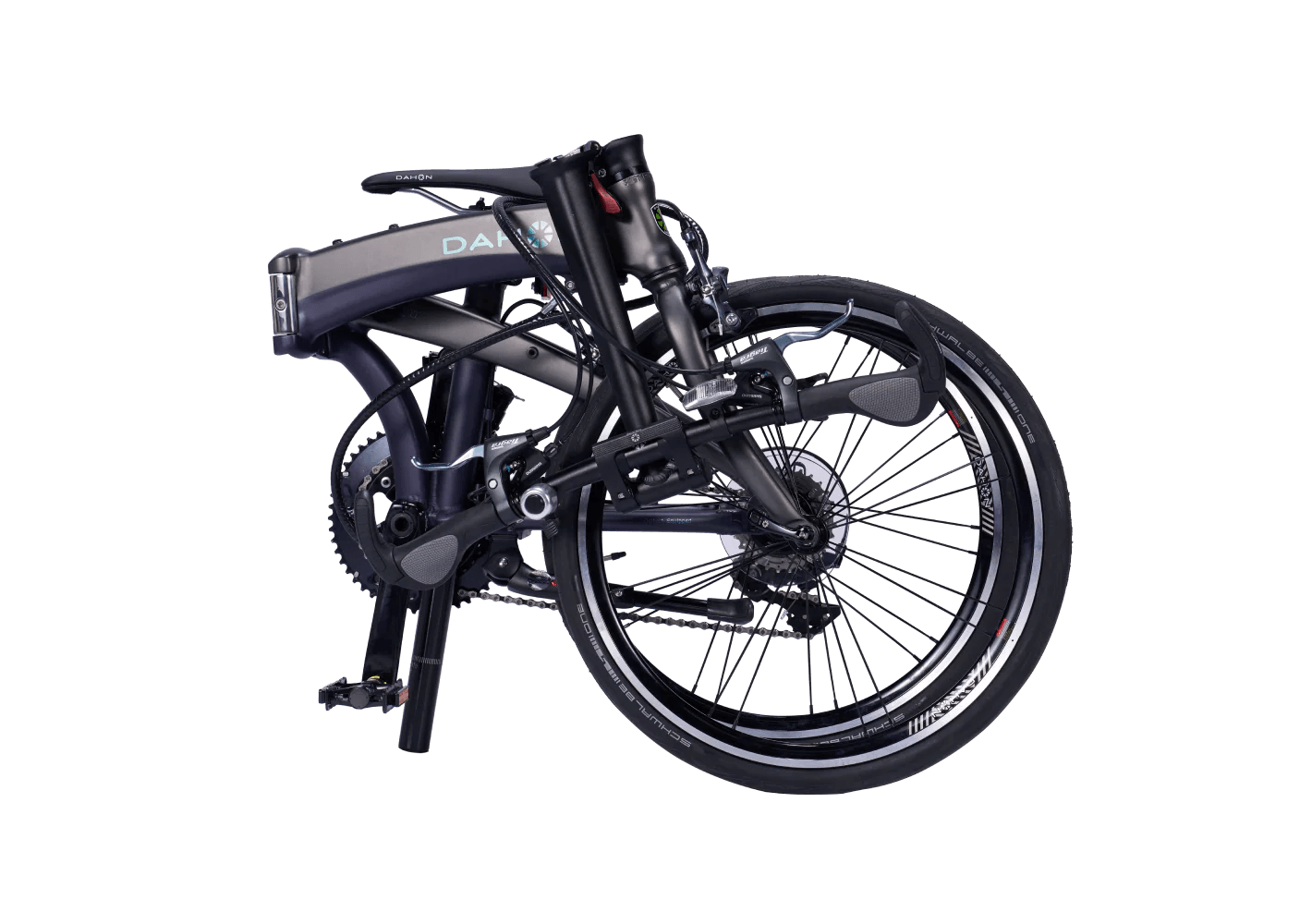

• The Gold Standard of Folding: Utilizing the world-renowned Dahon Folding System (DFS), you can collapse your bike into a compact 81x37x66cm profile in just 3 simple steps—perfect for car trunks, office storage, or public transit.
• Aerodynamic Small-Wheel Advantage: Built with high-performance Schwalbe One tires, the 20" wheels offer lower moment of inertia for faster acceleration and superior aerodynamics compared to traditional large-wheel bikes.

DFS (Dahon Folding System)

Invented over 30 years ago by Dahon, DFS has been adopted by many folding bikes on the market. Easy, even lighter, and more compact folding in just 3 steps. By constantly improving the basics of the system, DAHON was able to establish its current position in the market of folding bicycle.

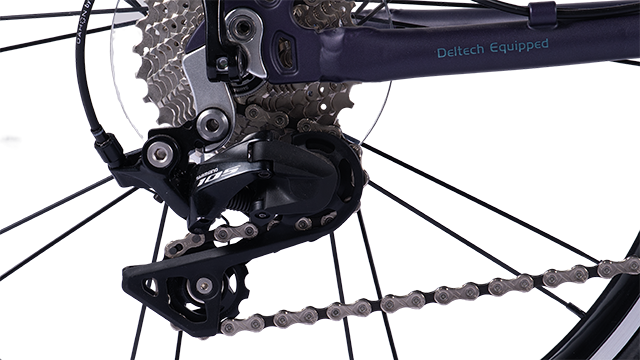

SHIMANO 22-speed Drivetrain System

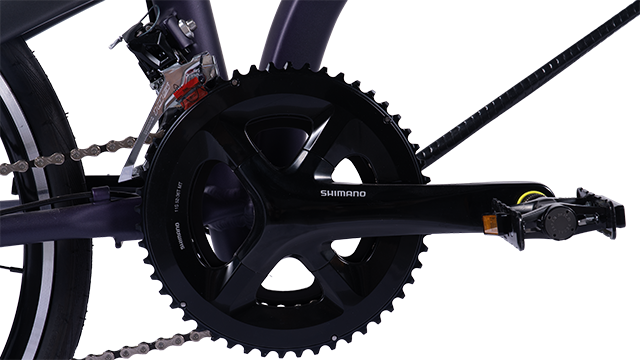

Featuring SHIMANO 22-speed gear: 53T-36T chainring and 11-32T cassette delivers quick start on slopes and high speed cruising.

Folding Innovation You Can Trust

Patented handlepost design provides exceptional stability and comfort, making folding seamless and secure.

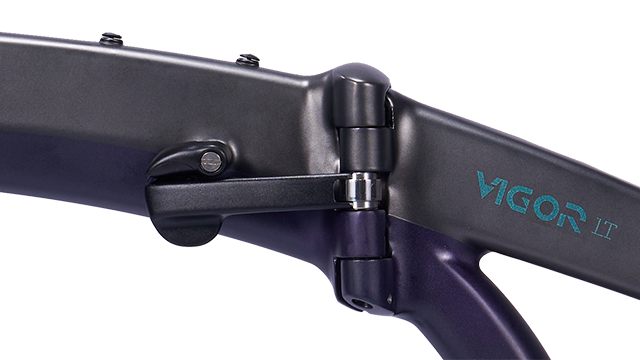

External V-joint

Made from forged aluminum with stainless steel locking blocks for a secure fit and sleek appearance.

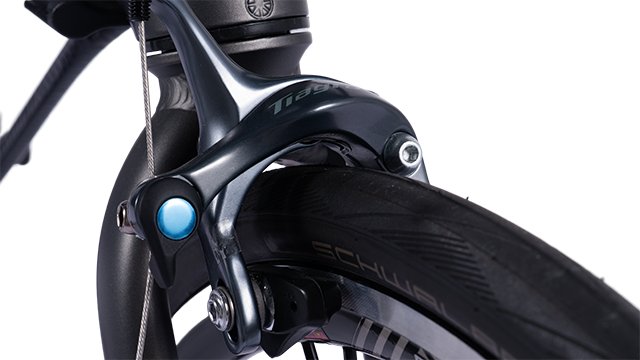

Shimano TIAGRA Brake

The Shimano TIAGRA caliper brake system offers responsive and efficient braking with a comfortable feel.

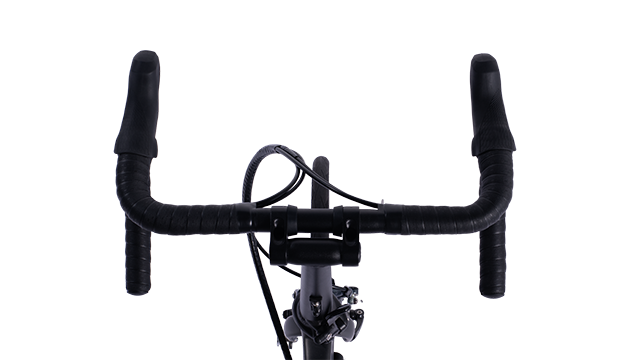

Precise Adjustment for Maximum Comfort

Smooth adjustment of handlebar angle and height for a personalized ride experience and easy folding.

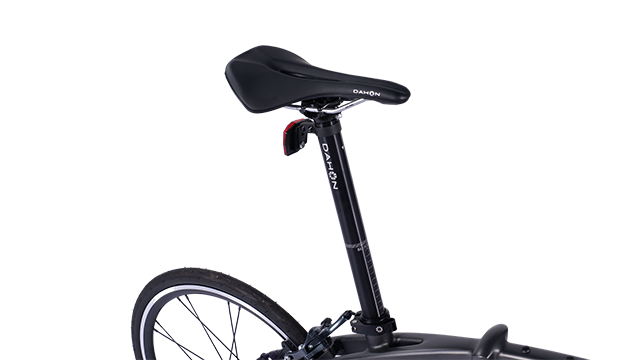

Height-Adjustable Saddle

The extended aluminum seat post allows for a wide range of adjustments to fit riders of different heights.













Watch this video to learn how to fold and unfold your Dahon bike.

Product Specifications:

• Product Name: Vigor Lt A7
• Model Name: EDA025
• Frame: 20" Aluminum
• Handlebar: Dahon DR-AL-210B
• Handlepost: Dahon Forged handlepost
• Rims: Solon SW-222202
• Front Hub: Dahon DH531SF
• Rear Hub: Dahon DH545SR
• Tires: SCHWALBE ONE Perf 28-451
• Chainring: Shimano FC-RS510 52-36T
• Cassette: Shimano CS-R7000 11-28T
• Front Derailleur: Shimano FD-R7000
• Rear Derailleur: Shimano RD-R7000
• Shifters: Shimano R7000
• Grips: Dahon XH-BD06
• Brakes: Shimano CALIPER BRAKE BR-4700
• Saddle: Dahon 12050-05#
• Seatpost: Dahon SP-AL-015 φ33.9*580mm
• Pedals: MKS PROMENADE
• Weight: 24lbs
• Rider Max Weight: 231 lbs
• Rider Height Range: 4'9″ - 6'1″

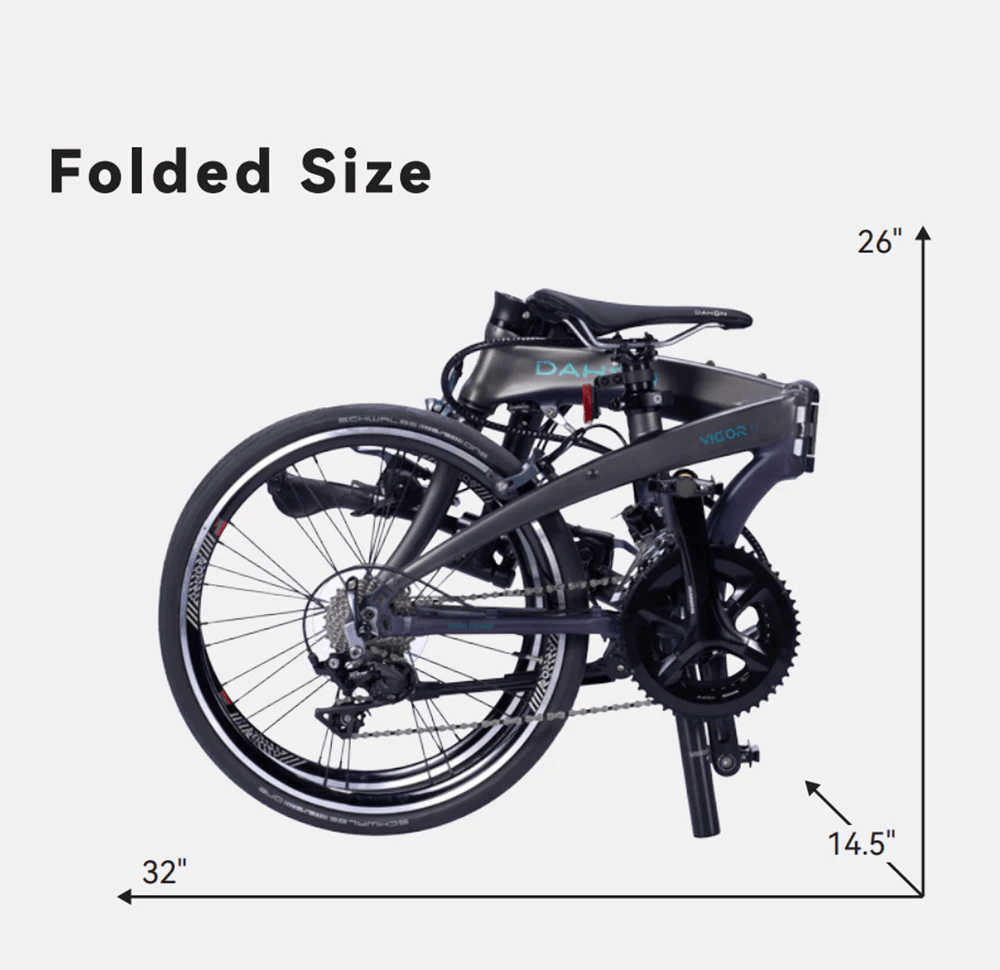

• Folded Dimensions: 81x37x66cm

Dimensions:

Attention:  Before your first ride, you must have your bicycle thoroughly checked and adjusted by a professional bicycle technician.  This final adjustment will activate your warranty and ensure that your bicycle is optimally adjusted for safety and performance.

Kindly note that bike specs are subject to change without notice, at full manufacturer's discretion.  If there is a change, it will be minor such as cable color etc.  You can reach out to us first if you want to confirm specs.
