Falco e5.1 36V/500W/400Wh Electric Bike System Conversion Kit



Save 8%
Original Price $ 2,099.00
Current Price $ 1,929.00


Notify me when back in stock



FREE SHIPPING.  All systems are hand-built in USA (lead time 1-4 weeks).

The Falco e5.1 is a 500W, 417Wh, 36V, 11.6Ah eBike system.

This system transforms any bike into a smart outdoor hybrid electric bike or trike.

It combines Zero Carbon high-speed bicycle commuting and recreation into one core direct drive technology with tremendous benefits to the end user.

The e5.1 system delivers superior range and can achieve speeds of up to 28 mph.

With its lightweight lithium batteries mounted to the frame, you'll experience incredible power in the ride.

4 Main Components:

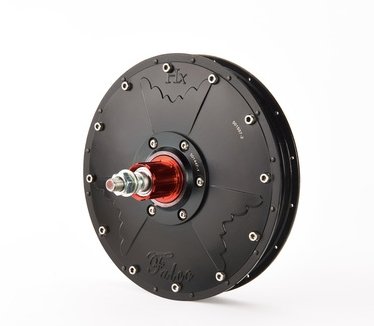

  • An electric wheel: It is an entirely built electric wheel with rim and spokes, ready to drop into your frame. It includes an ANT+ Module. Tire, tube and disc brake are not included. They will need to be mounted separately.

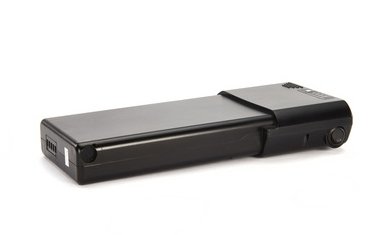

  • A Lithium battery: 400Wh Lithium battery with the top of the line Panasonic cells. Ready to mount to your favorite bike. It includes a charger.

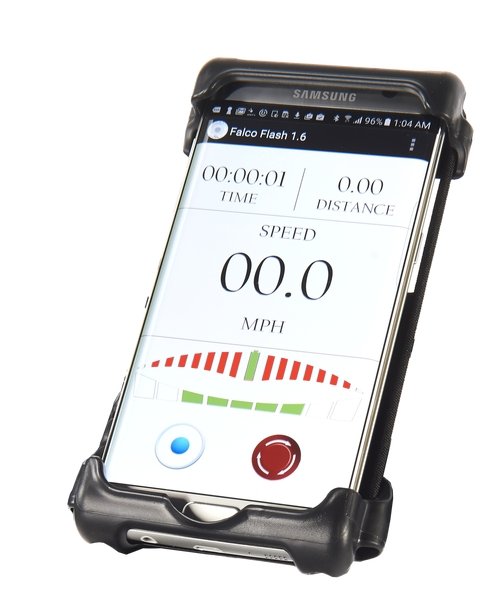

  • A wireless console including plus minus controls: e5.1 ebike system is shipped with the Hxd wireless console including plus minus controls and console charger.

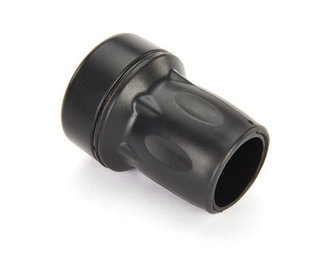

  • Choice of thumb or twist throttle: We offer two options; the thumb throttle takes up less space on your handlebars.

TECHNOLOGY BEHIND FALCO e5.1

Falco e5.1 eBike system is driven by our pure passion for cycling. The main components of Falco e5.1 are:

  1. 1.   Patented five-phase motor technology:
  • o    Zero free-wheeling resistance
  • o    40% more power delivery than a three-phase motor
  • o    High efficiency commuting
  • o    High efficiency regeneration
  1. 2.   Wireless Operation:
          For a cleaner looking and easy installation, you can use our wireless console and
          plus/minus controller
  1. 3.   ANT+ Technology Integration
  • o    ANT+ offers a remarkable eco-system to enhance our cycling experience

Product Specifications:

Speed

28mph (speed pedelec) 20mph(US)/15mph(EU)

Power (nominal)

500W

Range

70mi/112km(L1 Assist) 50mi/80km (L3 Assist)

Wheel Sizes

700c, 29in, 650B, 26in, 24in, 20in

Motor

5 Phase, Falco eDrive Zero Freewheel Resistance

Drive Train Options

1/7/8/9/10 Speed

Motor Weight

5.9kg/13lbs

Brake Type

Optional Regenerative Brake/Rim Brake and Disc Brake Compatible

Max Torque

40Nm

Bicycle Dropout

135mm Vertical or Horizontal

Battery

400Wh Li-ion 36V, 11.6Ah Rear Rack Type

Wireless Connectivity

ANT+

Charge Time

4 hours (75%) 6 hours (100%)

Smartphone

Android

Battery Weight

2.5 kg/ 5.5 lbs

Device OS

Mac, Windows

Throttle Compatibility

Thumb and Twist

App

Falco Flash



5 Year Manufacturer's Warranty:

A good investment should last for a long time.  Utmost reliability and performance dictate Falco's direct drive technology.  We want our customers to experience not only the ultimate performance and reliability but also the comfort of owning a world class e-bike system.
