HPC 1500W Mid Drive Electric Bicycle Conversion System Complete Kit



Save $ 504.00
Original Price $ 2,999.00
Current Price $ 2,495.00


Notify me when back in stock



Our 1500W Mid Drive system with internal sine wave controller is unbelievably smooth and quiet!   Featuring massive torque output of 130-140 ft lbs, even the 1500W mid drive out torques our enormous 6000W hub motor with the proper gearing.  If you want the a heavy duty, extremely robust and quietest mid drive system, the 1500W is a great choice.  Since you have access to all the gears on the back of your bicycle, this one motor can be a high speed screamer and torque monster all in one compact package.  Have to haul heavy cargo? Do you want to ride single track trails in silence?  This is the perfect system for you!

Sizing:

This kit is for bottom bracket sizes of the most common sizes 68mm-73mm, 100mm and 120mm (fat bike). Other BB sizes can be made to fit with custom spacers. Make sure to measure your bottom bracket and know the size to put in the order notes.


HPC 1500W Mid Drive System

  • Custom Single Speed 42T sprocket
  • Throttle Only Mode
  • 5 Levels of Pedal Assist with Throttle override in every level of PAS (can be programmed up to 9 levels)
  • Helical gears for quiet, smooth operation
  • Internal Controller (sealed, very water resistant)
  • Waterproof Connectors
  • Fits standard 68mm-73mm bottom bracket, 100mm bottom bracket, or 120mm bottom bracket
  • Upgraded Intelligent LCD screen (Shows battery level, assist level, speed, distance)
  • Plug and Play
  • Motor/BB Assembly Weight: ~12 Pounds

These units include the following: 1) Custom programming (these offer up to 9 speed of pedal assist, a throttle only mode, and ability to use the full power throttle in any pedal assist mode)  2) Maximized power output with 30A internal sine wave controller 3) 42T Narrow Wide chainring for optimal chain retention + more torque output 4) High quality connectors w/ XT90 battery connector

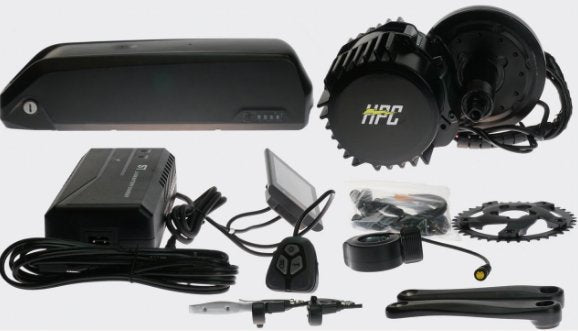

What's Included?

  1. HPC 48V 14ah USA Made NMC Battery System w/ charger
  2. Choice of Hard Case Battery OR Frame Bag System
  3. 1500W Mid Drive System w/ integrated controller
  4. Intelligent LCD Screen w/ power Button and assist level selector
  5. L+R Crank Arms
  6. Narrow Wide Chainring (42T)
  7. L + R Brake levers w/ cutoff for more torque!
  8. Universal Thumb Throttle (can mount on left or right side)
  9. Wiring Harness
  10. Mounting Hardware

 Performance Stats:

1500W- 48V NMC battery system,  30+ miles maximum range.

*Top speed measured on a full battery with 170 lb rider on flat ground, two way average.

**Max Range measured starting with a full battery on flat ground, 170 lb rider, no wind, two way average.

 Warranty:

This system will come with an industry leading HPC Standard 3 Year limited warranty. Please see terms and conditions for details.
