Introducing the HPC SunCapture 300. A 300W portable and foldable solar panel that will power your most prized possesions directly from the Sun! These panels are made with the world's highest efficiency Sunpower Maxeon Gen 3 solar cells purchased here in the United States and provide an energy conversion rate of a whoping 24.2%! These panels are meticulously hand sewn into heavy duty waterproof Nylon for a robust yet light weight folding design.

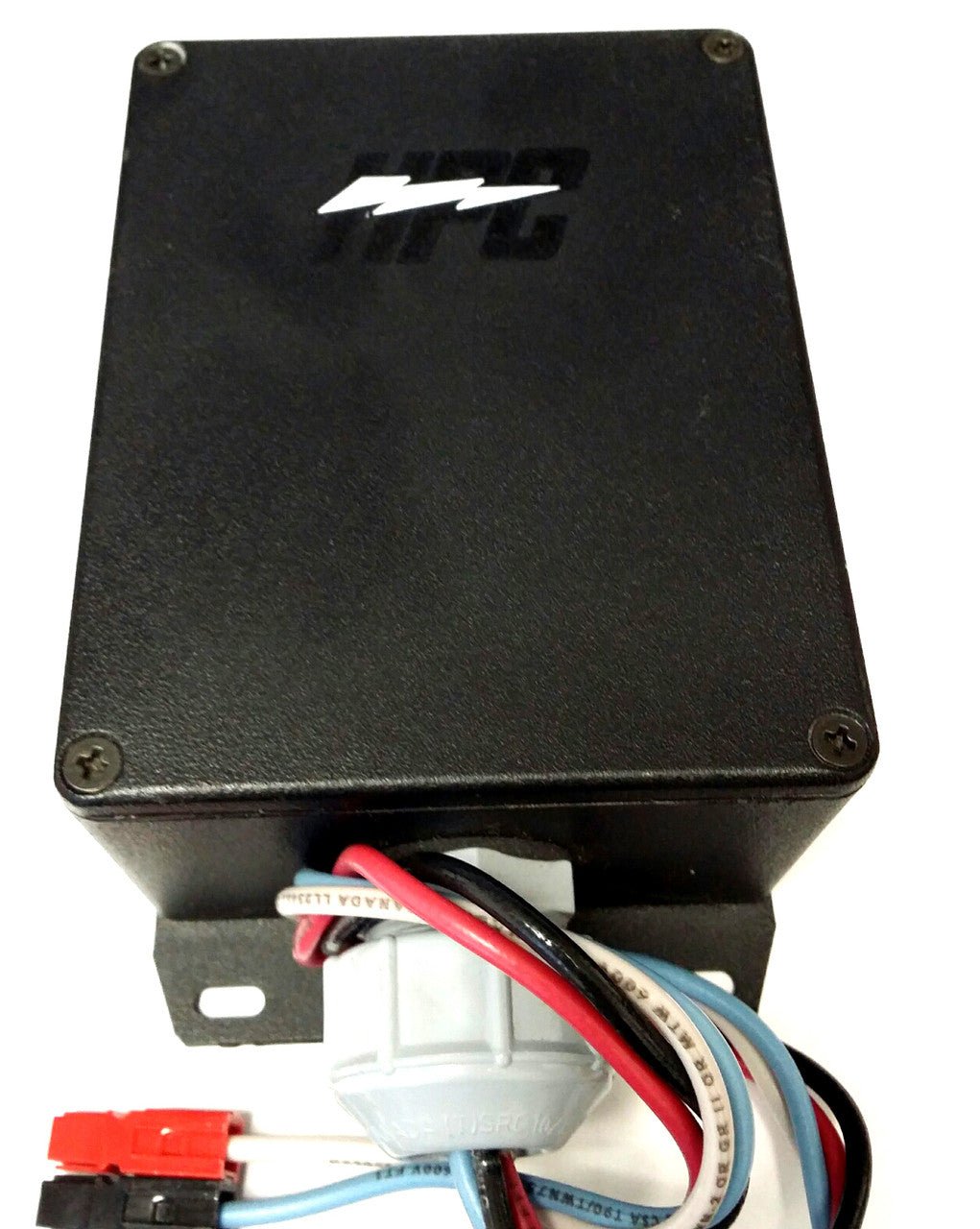

These suncapture panels come standard with a Solar Charger that can take the output of the panel and stabalize it at your required charge voltage. This means you may use our Solar Charging system for ANY ELECTRIC VEHICLE on the market. If you have a special request, you can even give us your mating charge connector and we will solder it on our Solar Charger for you. This will allow you to use our Solar Charger in exactly the same manner as your existing charger. The charger features a one way diode so that your charge can never leak out of the battery once charging has commenced. The charger also features charging lights so you can know when the charging cycle has completed!
Charge times for various Battery Systems in Optimal Sunlight:
- 300Wh: 1 hour
- 600Wh: 2 hours
- 900Wh: 3 hours
- 1200Wh: 4 hours
*To find the Wh of your battery, multiply the nominal voltage x Ah. For example, our 52V 12.5Ah battery system is 52V x 12.5Ah = 650Wh.

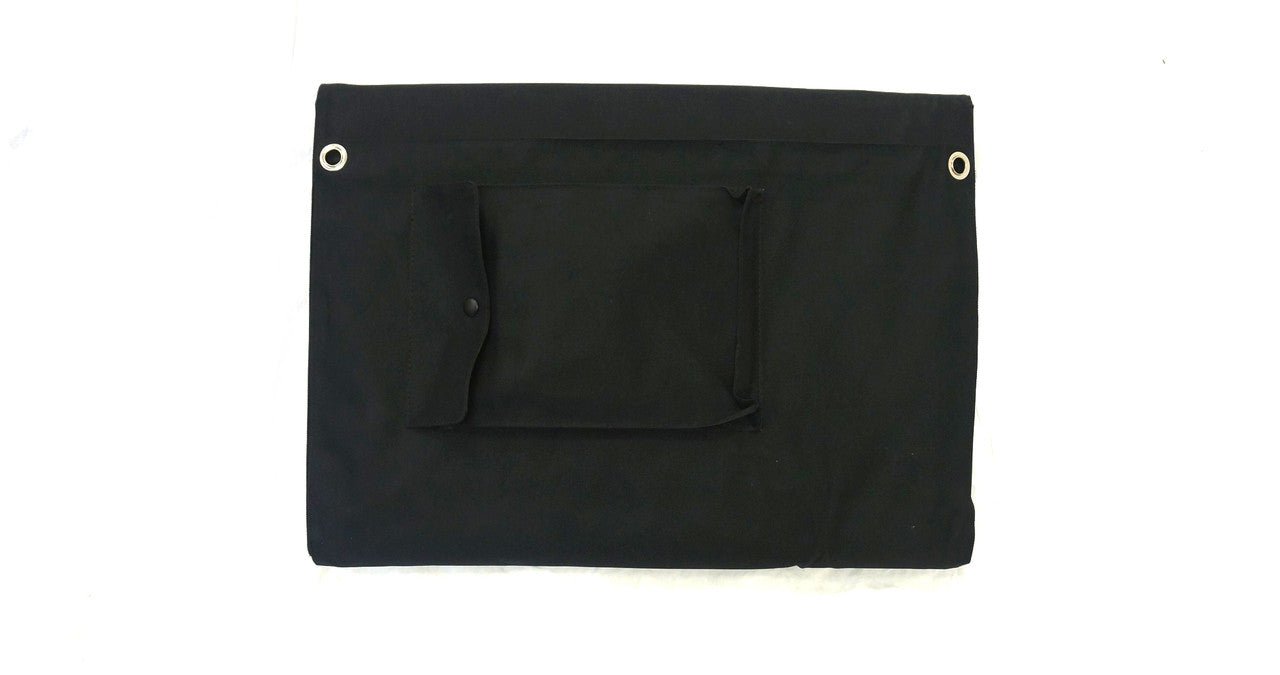

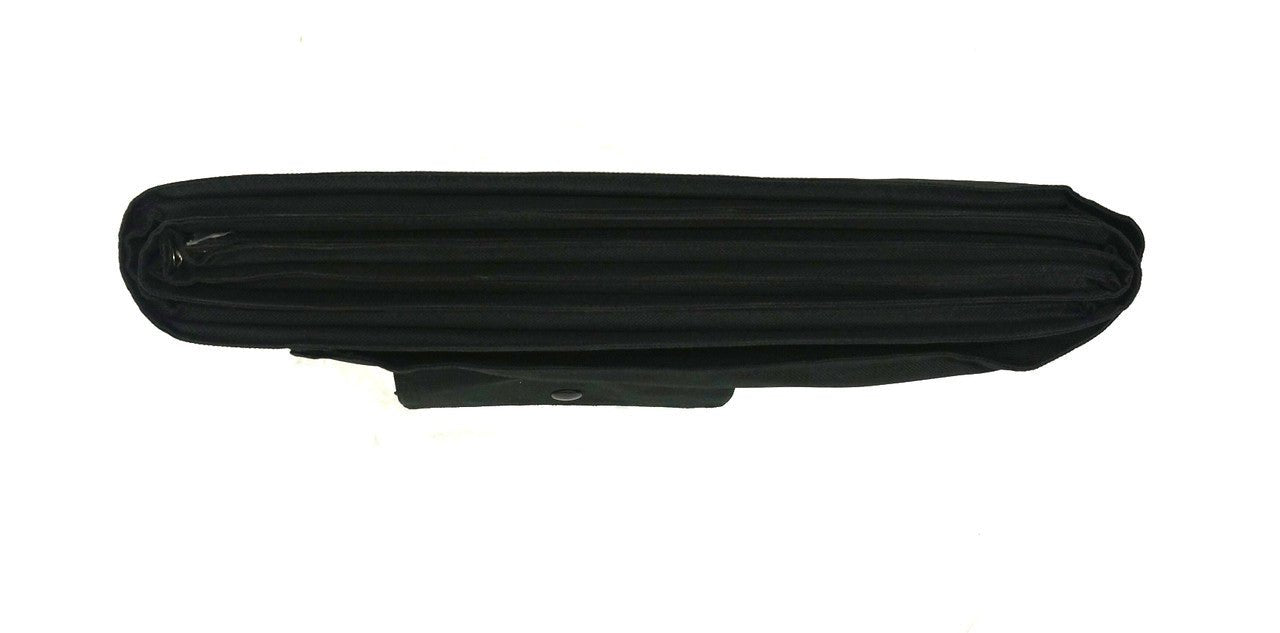

- 16" x 22" x 3" Folded

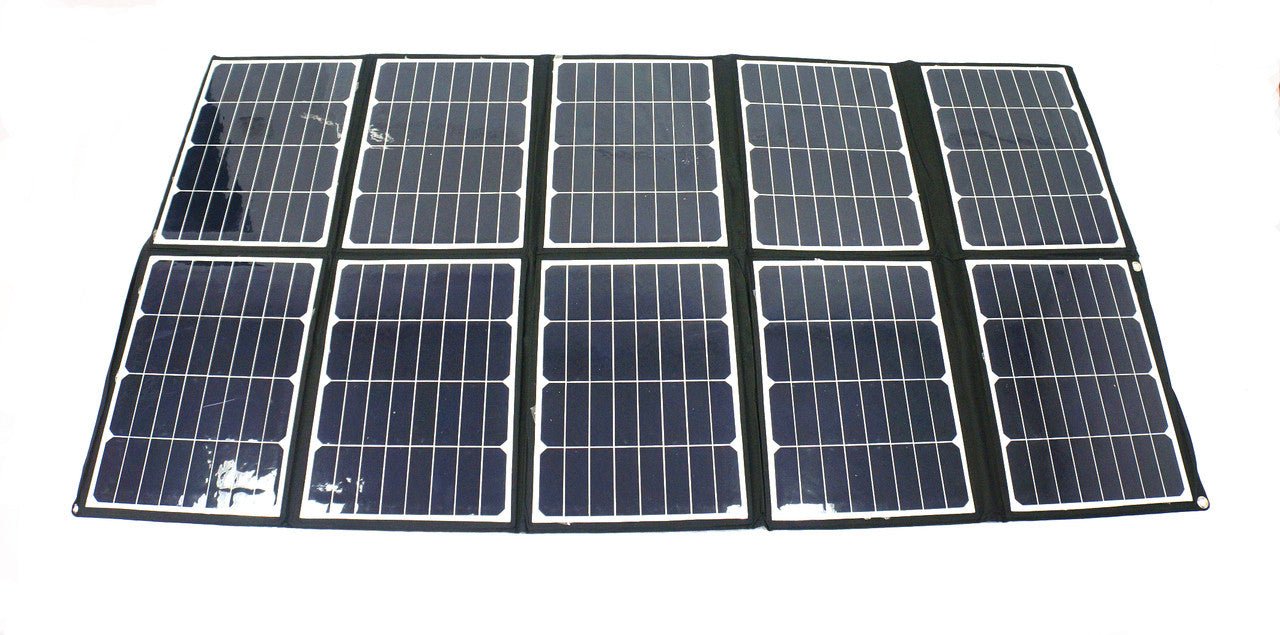

- 78" x 44" x .18" Unfolded
- Weight: 17 lbs
120W panel- Pmax Voltage: ~36V, Pmax Current: ~3.30A Voc: ~ 43.2V, Isc: ~ 3.95A
150W panel- Pmax Voltage: ~36V, Pmax Current: ~4.15A Voc: ~ 43.2V, Isc: ~ 4.46A
240W panel- Pmax Voltage: ~36V, Pmax Current: ~6.60A Voc: ~ 43.2V, Isc: ~ 7.90A
300W panel- Pmax Voltage: ~36V, Pmax Current: ~8.30A Voc: ~ 43.2V, Isc: ~ 9.98A
