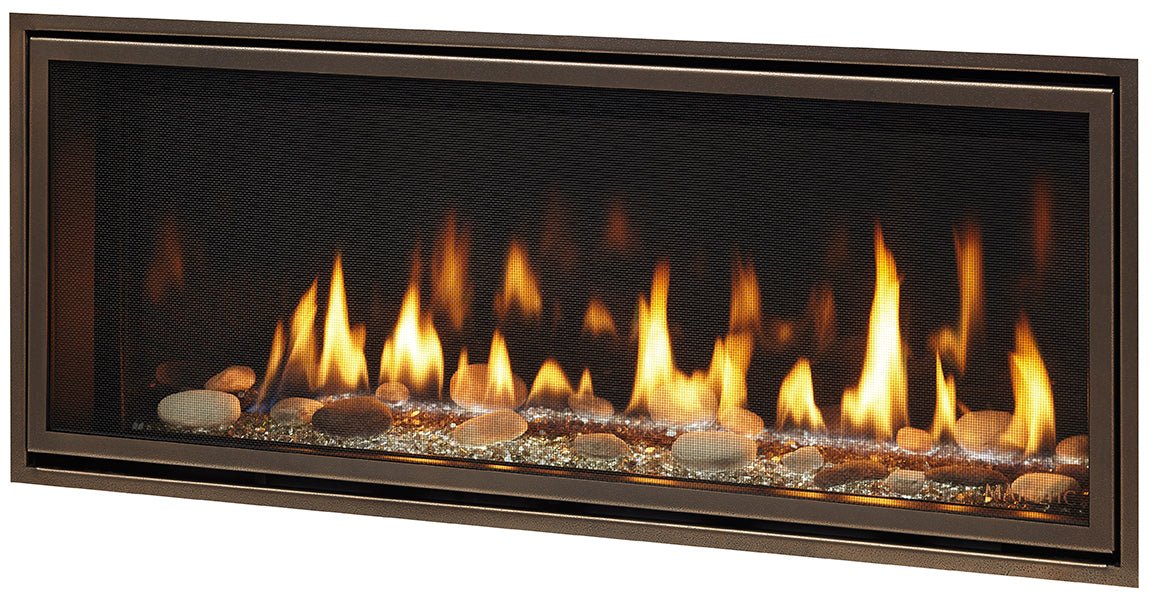

The Majestic Echelon II ECHEL48IN-C 48" Direct Vent Linear FireplaceĀ provides a warm comfort with active flames and a viewing glass that is illuminated by LED lights. Direct vent technology removes 100% of combustion exhaust and odors from your home.Ā
LED lights under the firebed create a warm feel while the active flames of the burner keeps you entertained for hours.
The included remoteĀ lets you control all of the fireplace features, flame height, LED lights, pilot mode and can also be used as a thermostat.
You can install this direct-vent fireplace on any wall in your home.
Add any or all of the rock, driftwood or alternate glass media to create a fireplace the is uniquely yours.
~ Benefits of the Majestic Echelon IIĀ ECHEL48IN-C NG Fireplace ~- IntelliFire Plus Ignition System:Ā Ā An advanced intermittent pilot ignition system with memory settings. IPI Plus constantly monitors ignition, ensures safe functioning and conserves up to $10/month in energy costs.
- Direct Vent Technology:Ā Ā Direct Vent fireplaces remove 100% of combustion exhaust and odors from your space. These sealed fireplaces provide optimal heat.
Features:
- Showcase the interior with glass illuminated by LED lights
- Optional heat distribution systems direct warmth to more areas of the home
- 21,000-40,000 Btu/Hour Input (NG)
- 20,000-34,000 Btu/Hour Input (LP)
- Clear LED DimmableĀ Lights
- IntelliFire Plus Ignition System
- RC300 Remote Control
- Battery Backup
- Bronze Glass Media
- IntelliFire Touch ignition system
Product Specifications:
Fuel Type: | Gas | |
---|---|---|
Vent Type: | Direct Vent | |
Vent Size: | 5x8 | |
Ignition Type: | Electronic | |
Installation Type: | Zero Clearance | |
Style: | Linear | |
Vent Inner Diameter: | 5 Inches | |
Vent Outer Diameter: | 8 Inches | |
Weight: | 290 lbs. | |
Model: | Natural Gas (NG) | Propane (LP) |
Max. (BTU/HR): | 40,000 BTU's | 34,000 BTU's |
Min. (BTU/HR): | 21,000 BTU's | 20,000 BTU's |
Ā

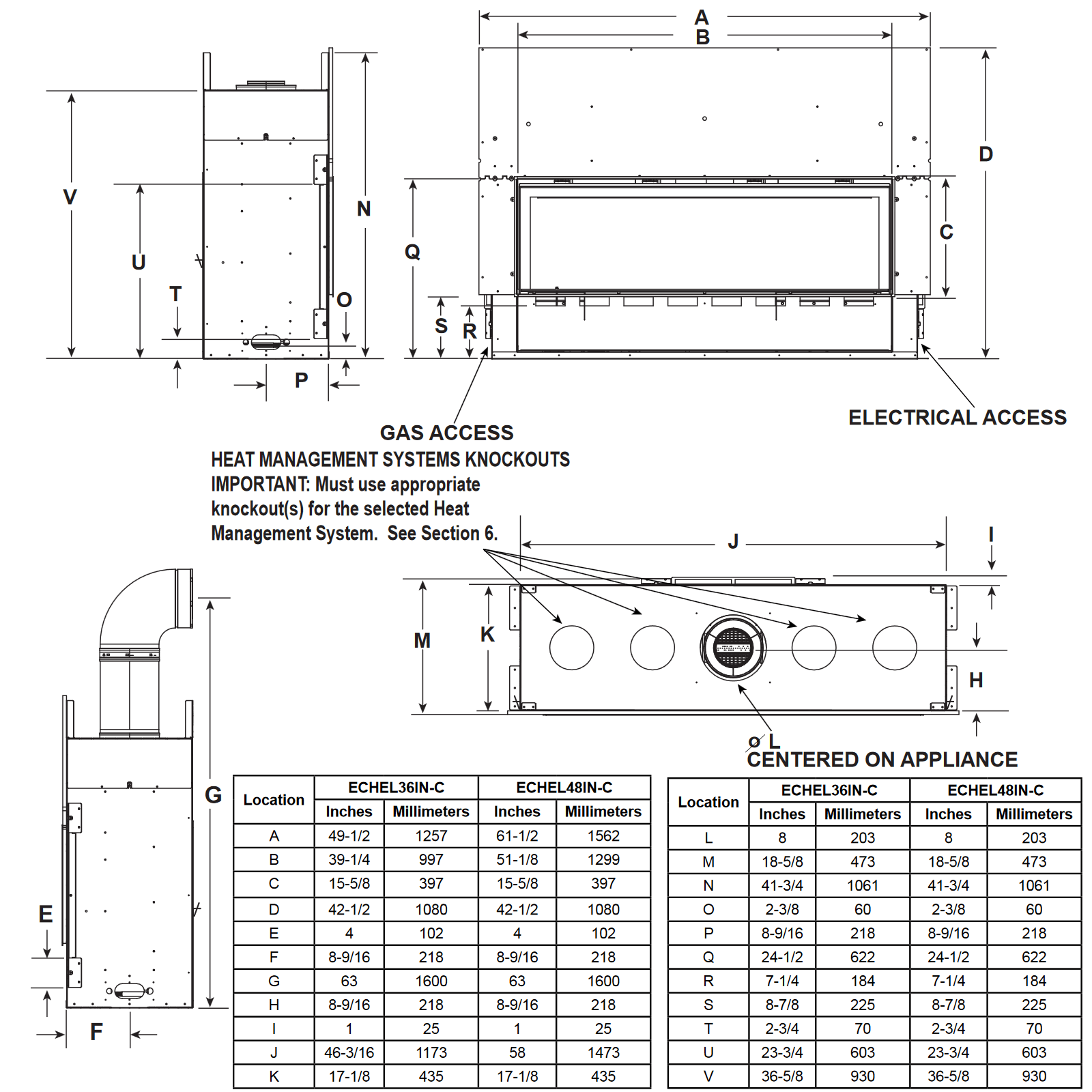

Dimensions:
Actual Dimensions |
||
Height | Width | Depth |
---|---|---|
421/2" | 611/2" | 185/8" |

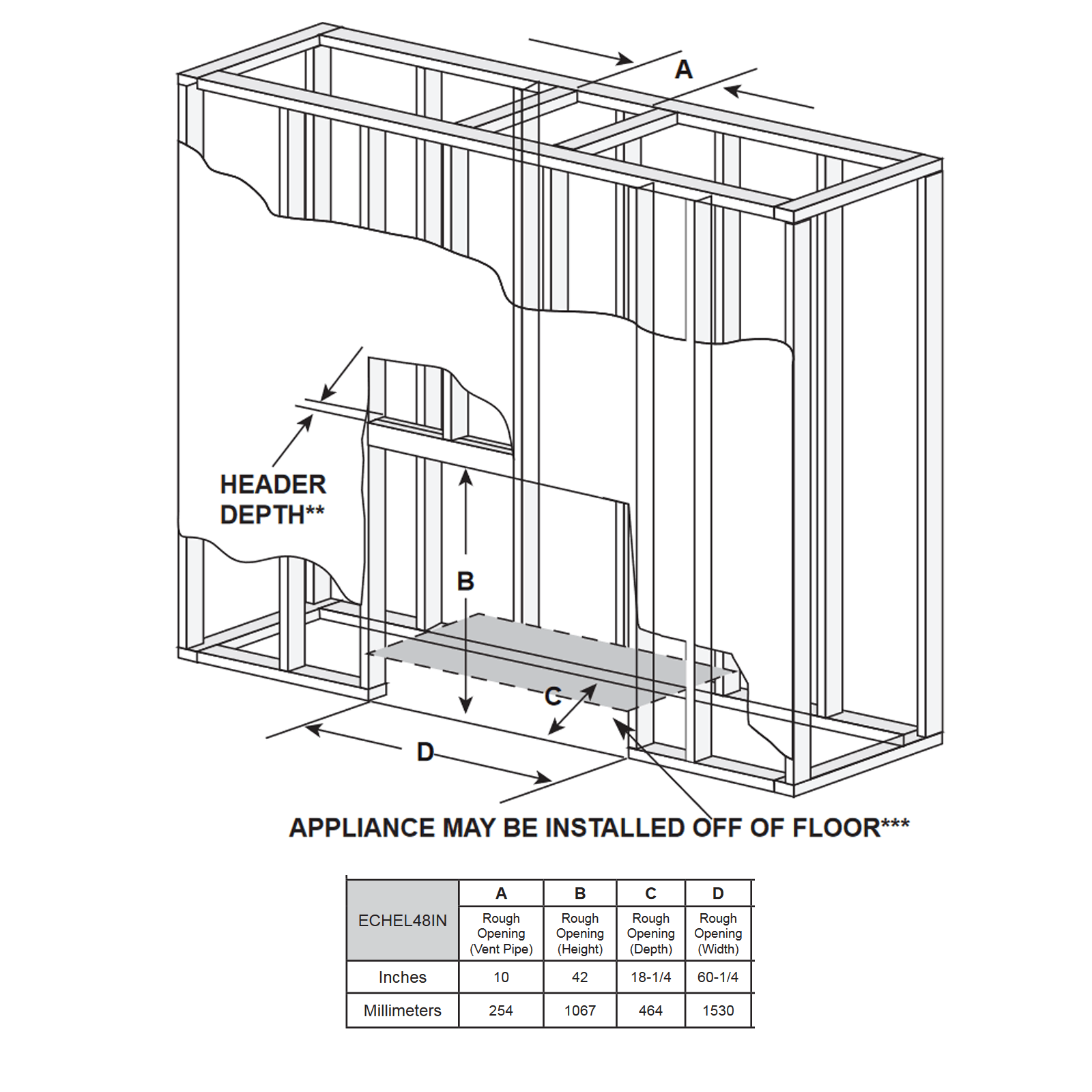

Framing Dimensions |
||
Height | Width | Depth |
42" | 601/4" | 181/4" |
Ā
Venting Notes:
- Requires 8" DVP pipe. Must have a 24" minimum vertical vent before attaching a 90Ā° elbow to unit. See venting section of manual.
- Approved for use with PVLP-SLP & PVI-SLP-B with PV-IPI-CK kit and power vent wire harness (order separately). When Power Vent is installed, lights can only be operated on high. See venting section of manual.
Door Options:
- CFT-48-BK 48" Clean Face Trim Front in Black
- CFT-48-BZ 48" Clean Face Trim Front in Bronze
- CFT-48-PT 48" Clean Face Trim Front in Pewter
- PFF-48-PT 48" Picture Frame Front in Pewter
- PFF-48-CH 48" Picture Frame Front in Charcoal
Glass Pieces Options:
- GLASS-OY Glass Pieces in Onyx
- GLASS-SP Glass Pieces in Sapphire
- GLASS-BZ Glass Pieces in Bronze
- GLASS-DM Glass Pieces in Diamond
Liquid Propane Conversion Kit:
Decorative Stones:
Heat Zone Kit:
Liner Kit:
Driftwood Log Set:
Why Majestic?
- Durable:Ā Majestic stands for outstanding durability, stunning looks and long lasting performance in wood and gas fireplaces. Ensuring that we make environmentally conscious decisions is a key factor when selecting the products and services we choose to buy and use.
- Limited Lifetime Warranty:Ā Ā Majestic'sĀ Limited Lifetime Warranty is the strongest in the industry.Ā It illustrates our commitment to producing the best and most reliable products availableāand allows you to own your hearth appliance with confidence.
- Fireplace Safety: At Majestic we are committed to your safety.Ā Weāve led the industry with advanced safety developments ā automatic intermittent pilot ignition systems, protective safety screens and Direct Vent technology, to name a few.
