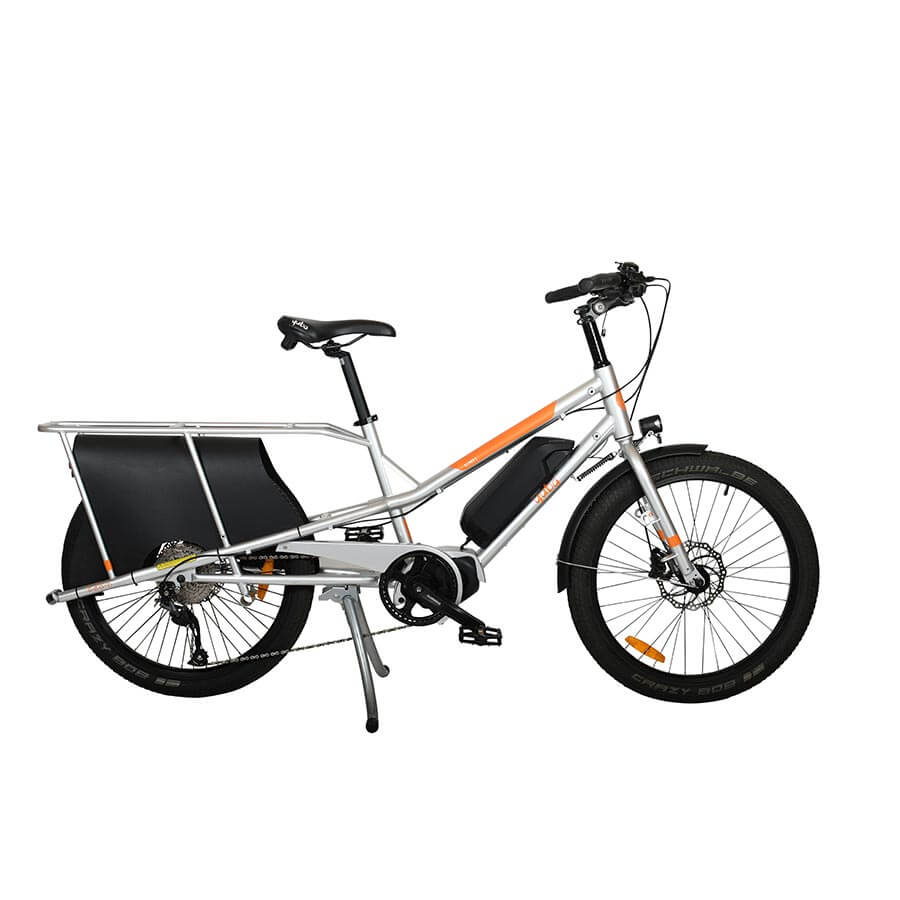

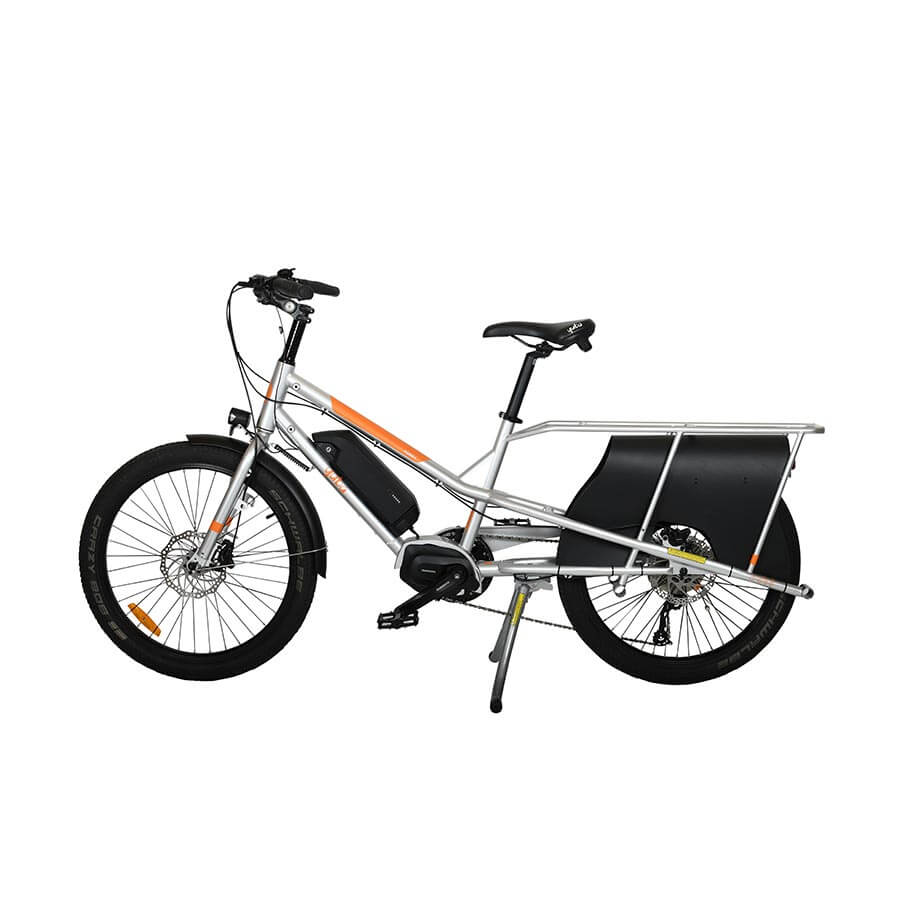

Yuba KOMBI E5 Compact Commuter Electric Cargo Bike

Small budget, big capacity: the Yuba KOMBI E5 Compact Commuter Electric Cargo Bike boasts a 200 kg (441 lbs) payload, perfect for carrying kids, groceries, and more!

The Yuba Kombi E5 cargo e-bike is the perfect city commuter.

Features:

• Transport up to 2 Passengers: Compact with enough space to comfortably carry two passengers! Easily transport 2 children or 1 adult on the back of your Yuba.
• Shimano E5000 motor
• Carry up to 440 lbs
• Ride with comfort and ease
• Reliable and safe for your passengers

Designed around your needs

The Kombi E5 is the cargo bike that lets you effortlessly carry your children, their backpacks, and all your groceries, thanks to the Shimano Steps E5000 motor.

Components that won't let you down

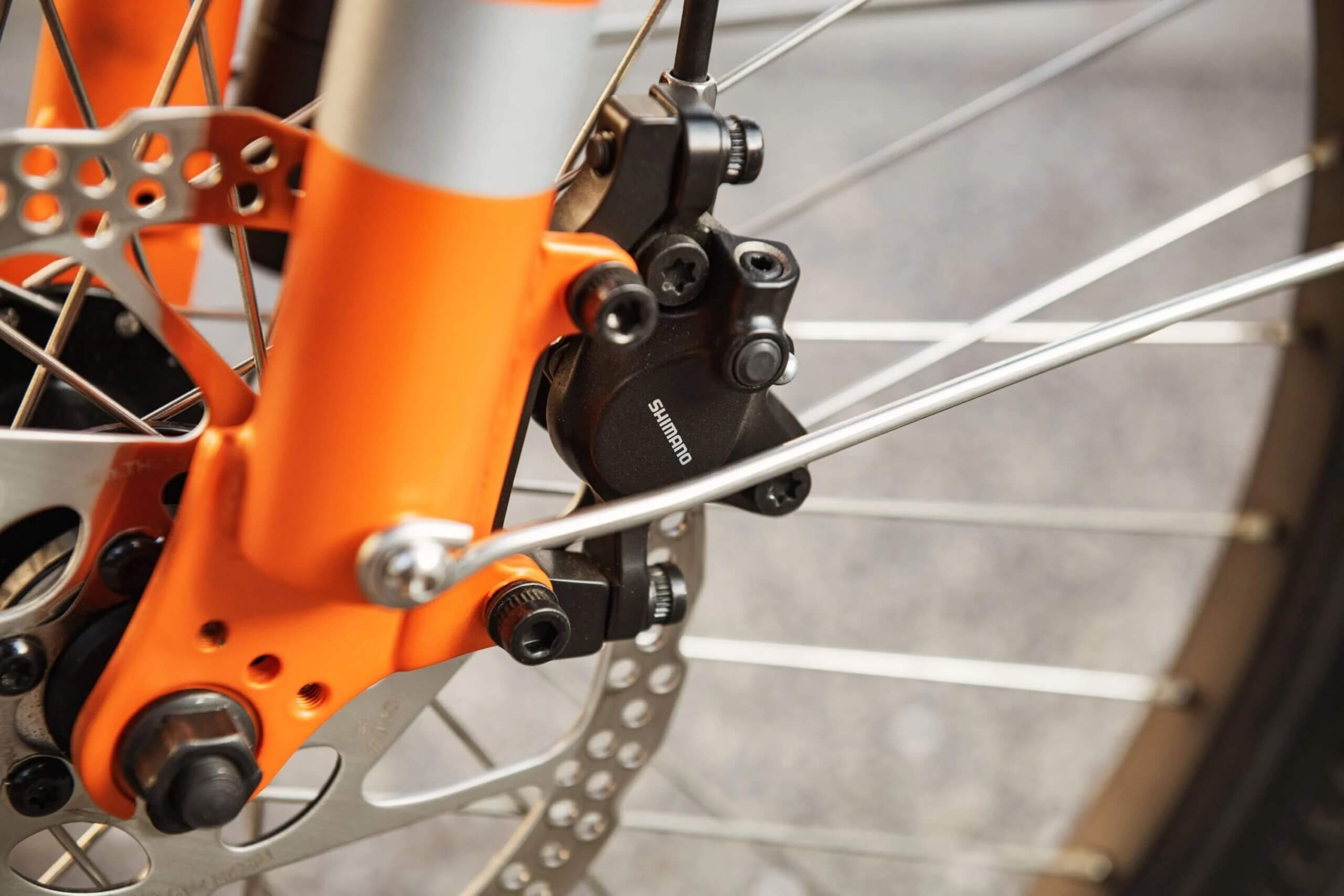

Thanks to its 24” wheels, 2.5 Maxxis tires, and sturdy chromoly frame, the Kombi E5 offers excellent road holding and great maneuverability in an urban environment. The hydraulic disc brakes also provide strong confidence in stopping power.

Product Specifications:

• Effective Top Tube 620mm

• Seat Tube 420mm

• Head Angle 71º

• Seat Tube Angle 71º

• Chainstay 568mm

• Bottom Bracket Drop 17mm

• Head Tube 175mm

• Fork Rake 55mm

• Wheelbase 1240mm

• Bike Length 1910mm

• Top Rack Total Length 785mm

• Effective Top Rack 600mm

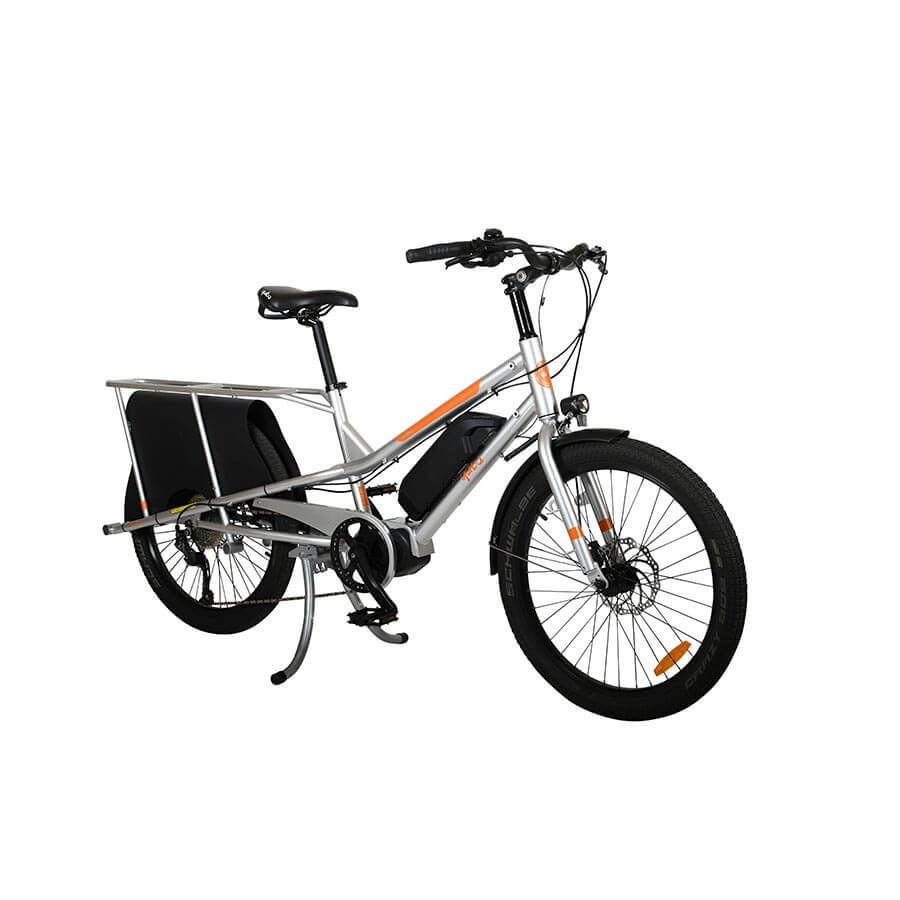

• Color Options Orange, Silver

• Minimum Rider Height 5’0”

• Maximum Rider Height 6’6"

FRAME KIT

• Frame Kombi V1 Electric 24” Cr-Mo w/ Disc Tab

• Fork Kombi V1 Cr-Mo 1-1/8” Threadless w/Disc Tab

• Sideloaders Sold Separately

COCKPIT

• Headset Semi-Cartridge, 1-1/8” Threadless

• Stem 1-1/8” Adjustable Stem

• Handlebars 31.8mm Yuba City Handlebars

• Grips Yuba Ergo Grip

• Saddle Yuba City Saddle

• Seatpost 31.6mm Aluminum 400mm (500mm Optional)

BRAKE KIT

• Levers Shimano Alivio or Clarks M2¹

• Brake Shimano Alivio or Clarks M2¹

• Rotor Shimano 180mm or Clarks 180mm (Front | Rear)¹

TRANSMISSION

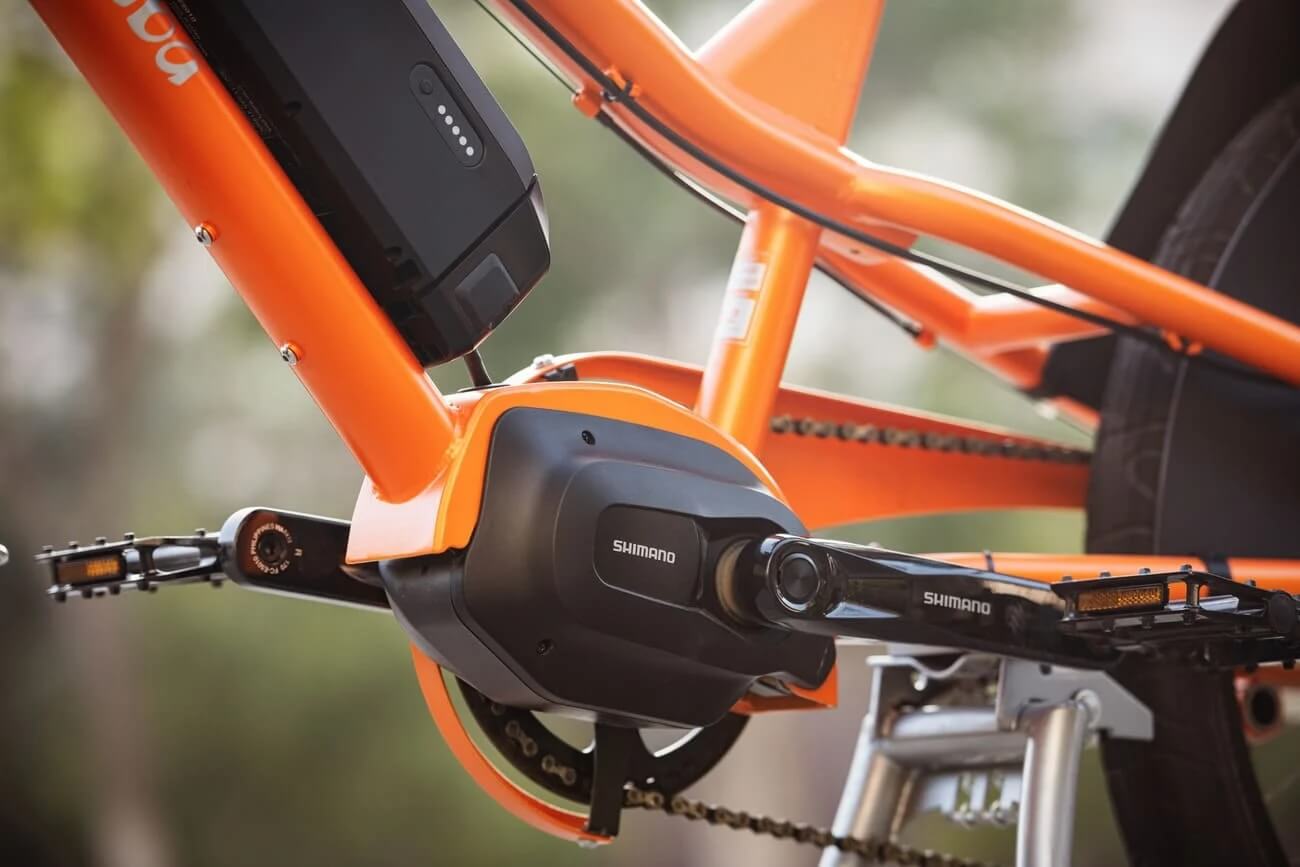

• Motor System Shimano Steps E5000 250W, 36V 418Wh Battery

• Front Derailleur N/A

• Rear Derailleur Shimano RD-M2000

• Shift Lever Shimano Altus SGS 9-Speed Trigger Shifter

• Cassette Shimano 11-36T 9-Speed

• Chain KMC E9

• Crankset Shimano FC-E5010 170mm

• Pedals Flat Alloy

WHEELS

• Rims Alloy Double Wall (36H Front | 36H Rear) Hubs Threaded Loose Ball
• Bearing Tires Maxxis Hookworm 24”x 2.5”

WEIGHT SPECS

• Bike Weight 65 lbs (29.5 kg)

• Max G.V.W.R. 505 lbs (229 kg)

INCLUDES:

• Included Bell, Deflopilator, Fenders, Front/Rear LED Lights, Stand Together

• Add Ons 2-Go, Monkey Bars², Baguette, Boda Pegs, Bread Basket, Hold On, Kombi Sideboards, Kombi Deck, Mini Soft Spot, Pin Lock³, Ring², Pop Top , Soft Spot, Yepp
  Nexxt

COMPATIBLE ACCESSORIES

Eco Pop Top (AC-STB09)

WoofTop (AC-WT001)

Adjustable Monkey Bars (AC-STB07)

StuffRack, Basket (AC-FR16)

Kombi Sideboards (AC-KB001)
