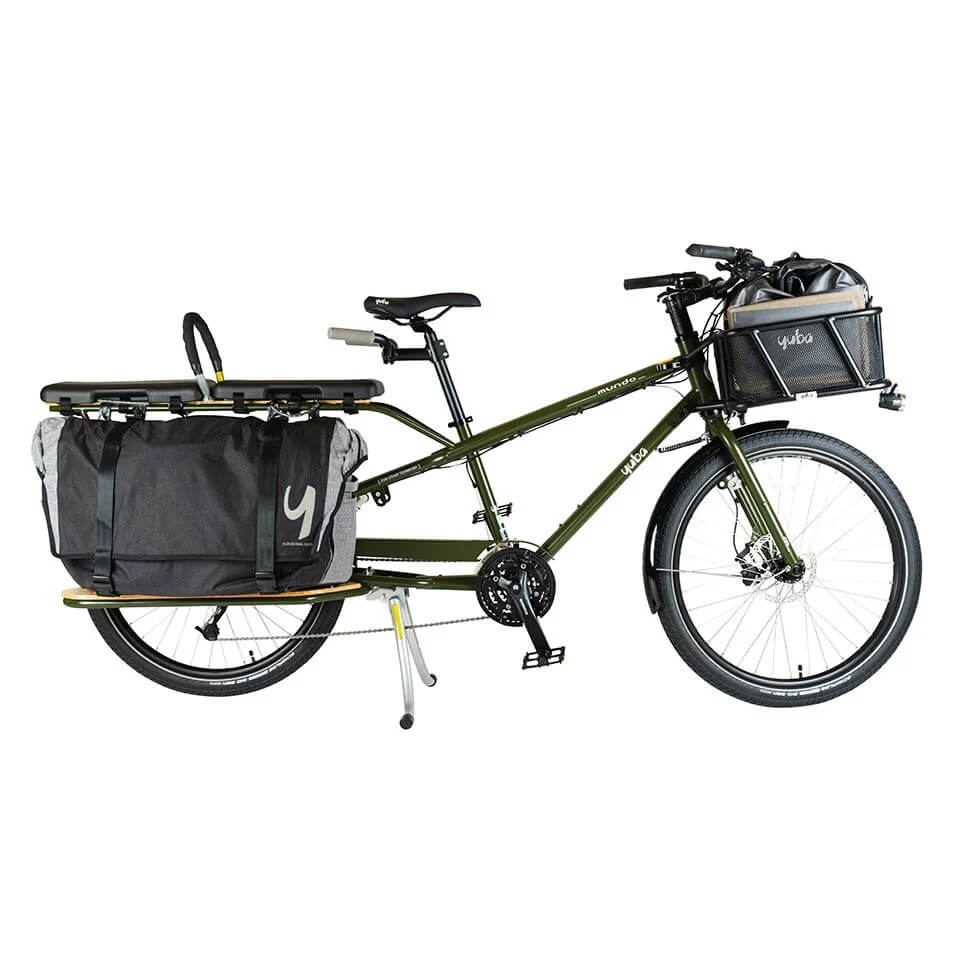

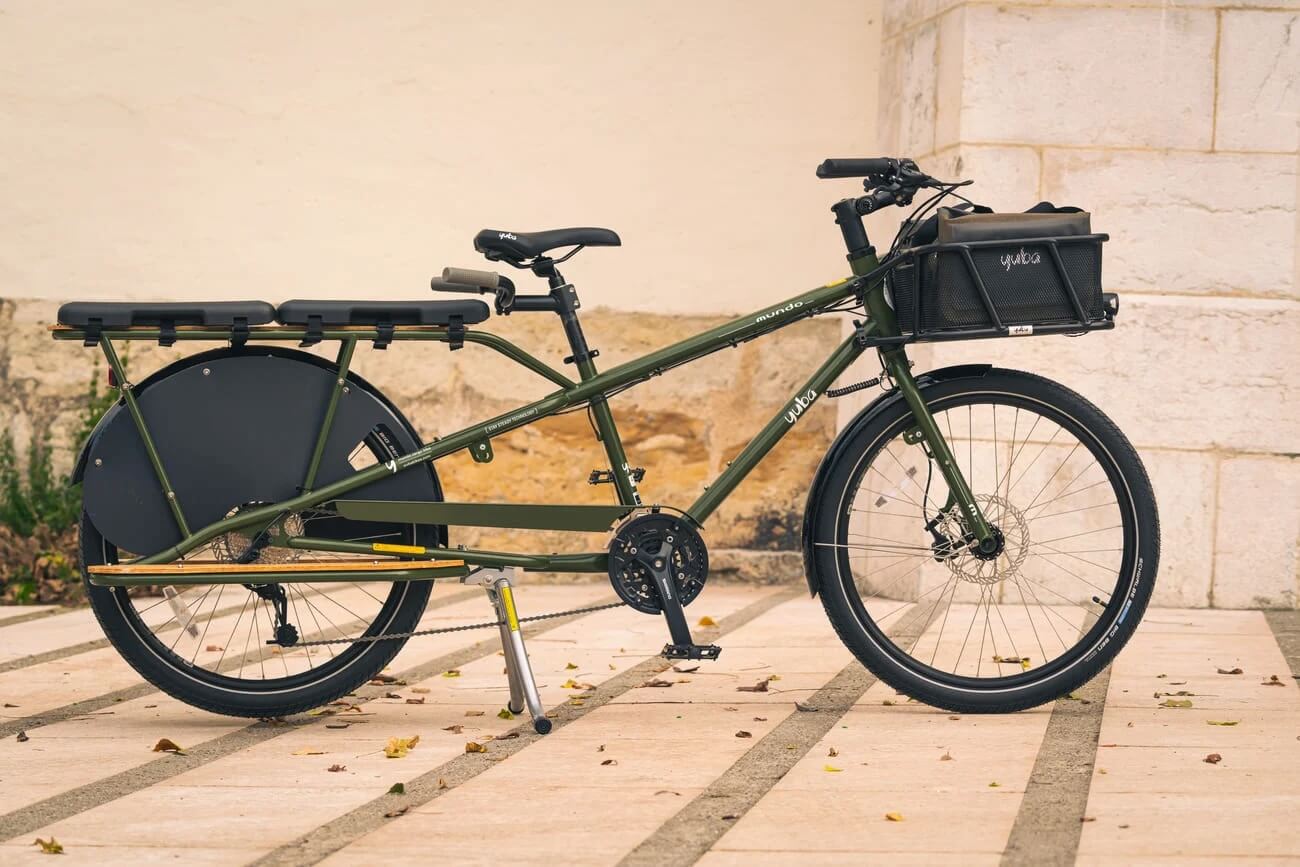

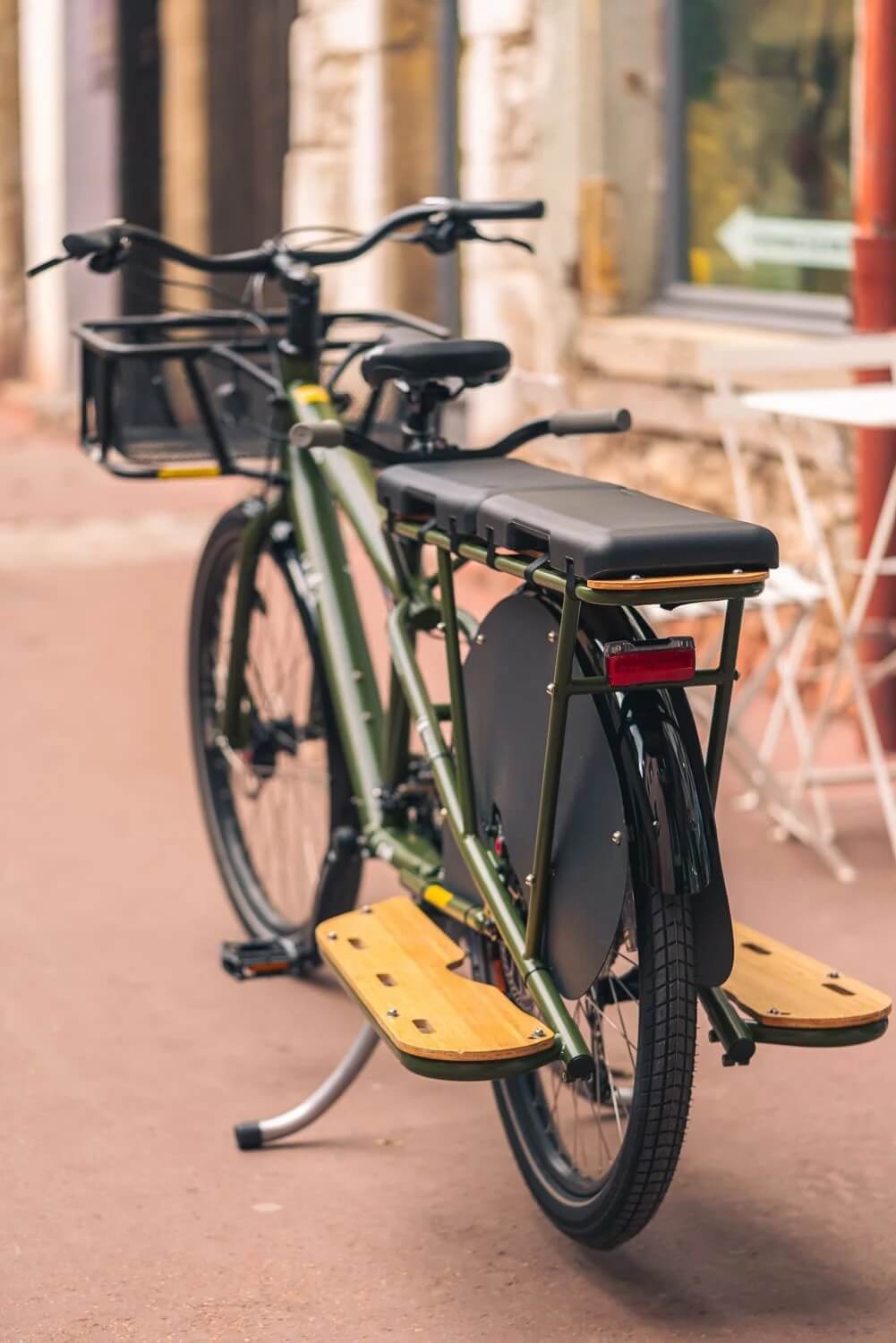

Yuba MUNDO V6 LUX Longtail Electric Cargo Bike

The Yuba MUNDO V6 LUX Longtail Electric Cargo Bike is the perfect bike for comfortably eating up the miles.

With its comfortable yet laterally rigid frame, it lets you carry up to 250 kg (551 lbs) or several passengers.

Watch the Yuba MUNDO LUX bicycle in action.

The Original Cargo Spirit

The Mundo is the pioneer of longtail bikes. Born in 2007, its popularity comes from a frame and geometry optimized for all types of cargo and terrains. The cargo bike revolution started with the Mundo.

Agile and Comfortable

The Chromoly steel frame, featuring SST (Stay Steady Technology), provides unmatched riding comfort. Exceptional maneuverability and easy handling make it perfect for daily use, ensuring safety and ease. This bike is particularly well-suited for taller riders and large families.

Features:

• Transport up to 4 passengers- With an extended rear rack and our Stay Steady Technology ensuring optimal rigidity, you can safely carry 3 to 4 children or 2 adults on the back of your cargo bike.
• Ready to tackle the miles
• Carry up to 250 kg
• Reliable and safe for your passengers

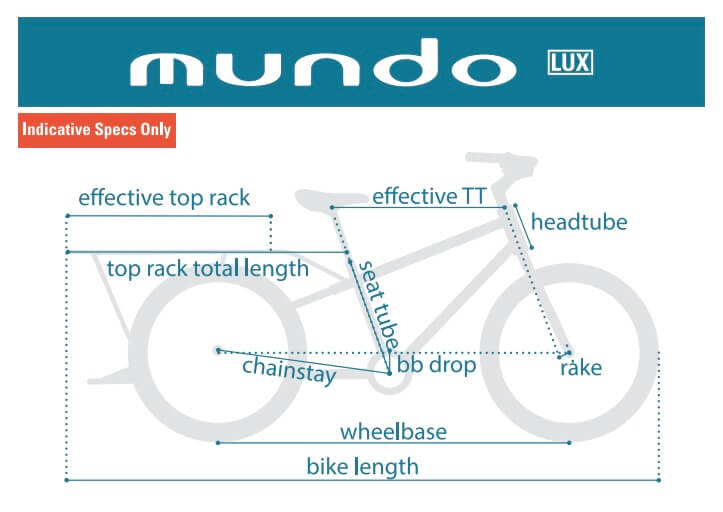

Product Specifications:

Mundo V6 LUX One Size

• Effective Top Tube 615mm
• Seat Tube 420mm
• Head Angle 71º
• Seat Tube Angle 71º
• Chainstay 753mm
• Bottom Bracket Drop 45mm
• Head Tube 175mm
• Fork Rake 56mm
• Wheelbase 1410mm
• Bike Length 2120mm
• Top Rack Total Length 970mm
• Effective Top Rack 755mm
• Color Options Gold, Green
• Minimum Rider Height 5’0”
• Maximum Rider Height 6’6”
• Vendor Item No. M-2127GR

FRAME KIT

• Frame Mundo V6 Cr-Mo Thru Axle w/Disc Tab
• Fork Mundo V6 Cr-Mo 1.5” Threadless Thru Axle w/Post Mount Disc Tab
• Sideloaders Mundo V5 Cr-Mo

COCKPIT

• Headset 1.5” Conventional Threadless
• Stem Yuba 1.5” Adjustable Stem 100mm
• Handlebars Yuba 31.8mm City Handlebars
• Grips Yuba Ergo Grip w/Alloy Clamp
• Saddle Yuba Comfort Saddle
• Seatpost 30.9mm Aluminum 500mm

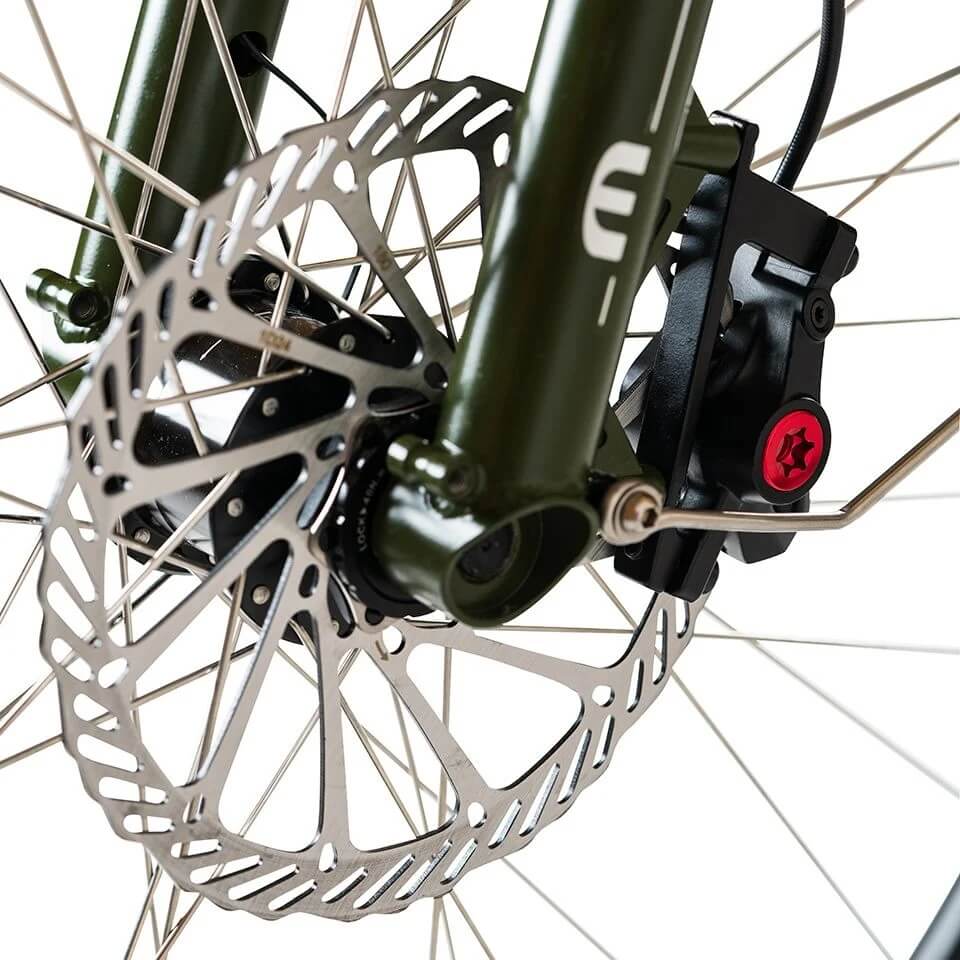

BRAKE KIT

• Levers Shimano ST-EF505 or Clarks M2¹
• Brake Shimano BR-MT200 or Clarks M2¹
• Rotor Shimano RT54 / RT56 180mm or Clarks 180mm (Front | Rear)¹

TRANSMISSION

• Motor System N/A
• Front Derailleur Shimano FD-M370 Altus or S-Ride FD-M300¹
• Rear Derailleur Shimano RD-M2000 Altus 9-Speed or S-Ride RD-M310 9-Speed¹
• Shift Lever Shimano ST-EF505 3x9-Speed Itegrated Shifter/Brake Lever or S-Ride SL-M300
• 3-Speed and SL-M300C 9-Speed¹
• Cassette Shimano 11-36T 9-Speed or S-Ride 9-Speed Nickle 11-32T CS-M300¹
• Chain KMC 9-Speed
• Crankset Shimano FC-T3010 42T-32T-22T
• Pedals Alloy Flat

WHEELS

• Rims WTB SX-23 (36H Front | 36H Rear)
• Hubs Shimano Dynamo (Front) | Thru Axle (Rear), Loose Ball Bearing
• Tires Schwalbe Big Ben RaceGuard 26” x 2.15”

WEIGHT SPECS

• Bike Weight 57.9 lbs (26.3 kg)
• Max G.V.W.R. 550 lbs (250 kg)

INCLUDES:

• Bell, Deflopilator, Fenders, Herrmans Lights, Stand Together

COMPATIBLE ACCESSORIES

Bamboo Boards Mundo (AC-RB04)

Mundo Deck (AC-TD07)

Adjustable Monkey Bars (AC-STB07)

Eco Pop Top (AC-STB09)

Bread Basket (AC-FR12)

Soft Spot, Waterproof Seat Cushion, Small (AC-SS003)

Soft Spot, Waterproof Seat Cushion, Medium (AC-SS002)

Hold On Second Handlebar (AC-STB08)
