Yuba SUPERCARGO Front Loader Electric Cargo Bike

The Yuba SUPERCARGO Front Loader Electric Cargo Bike provides effortless handling.  This e-bike is capable of carrying up to 4 children or large loads for professionals.

Carry Whatever You Want

The Supercargo pushes the boundaries of front-loader bikes, offering a comfortable riding position and the ability to easily haul cargo. With multiple Add-On options and an integrated rear rack, carrying up to 4 children or other cargo is a breeze.

Quicker to Handle

The frame geometry and low step-over provide optimal balance for the rider, while the cable steering ensures smooth handling. The Supercargo stands out from other front-loaders with its quick learning curve and ease of use.

Features:

• Transport up to 4 passengers- With a child seat installed on the rear rack, you can carry up to 4 children with your Supercargo. The spacious front box easily accommodates 3 additional children.

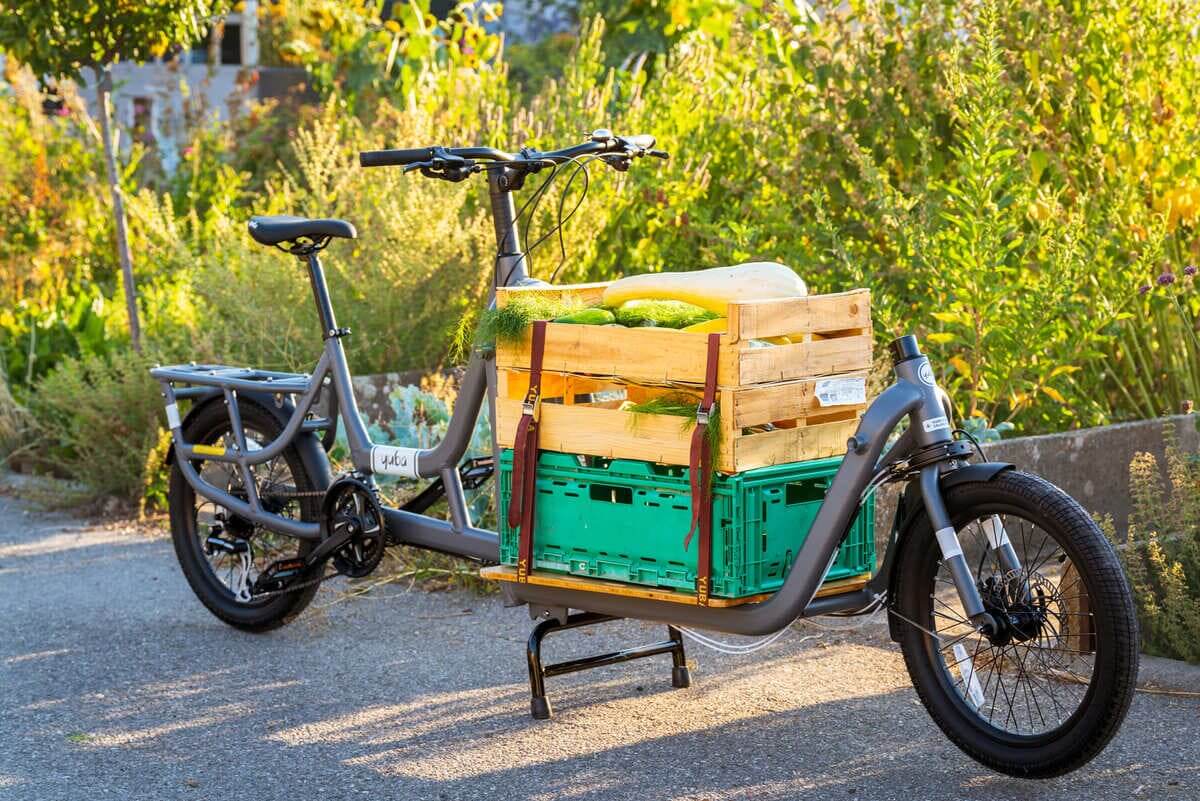

• A versatile front box

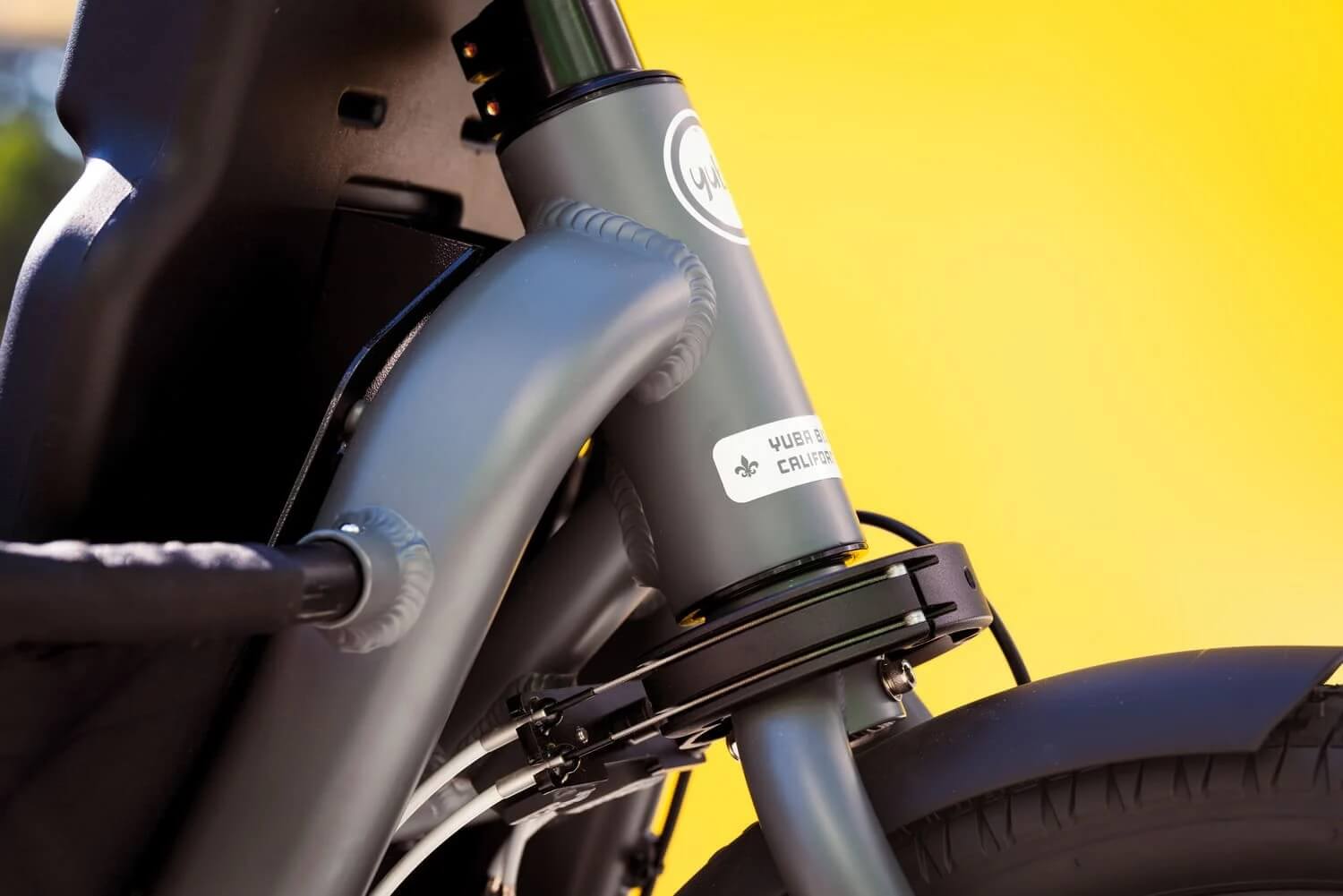

• Cable steering and 20" wheels
• 440 lbs load capacity

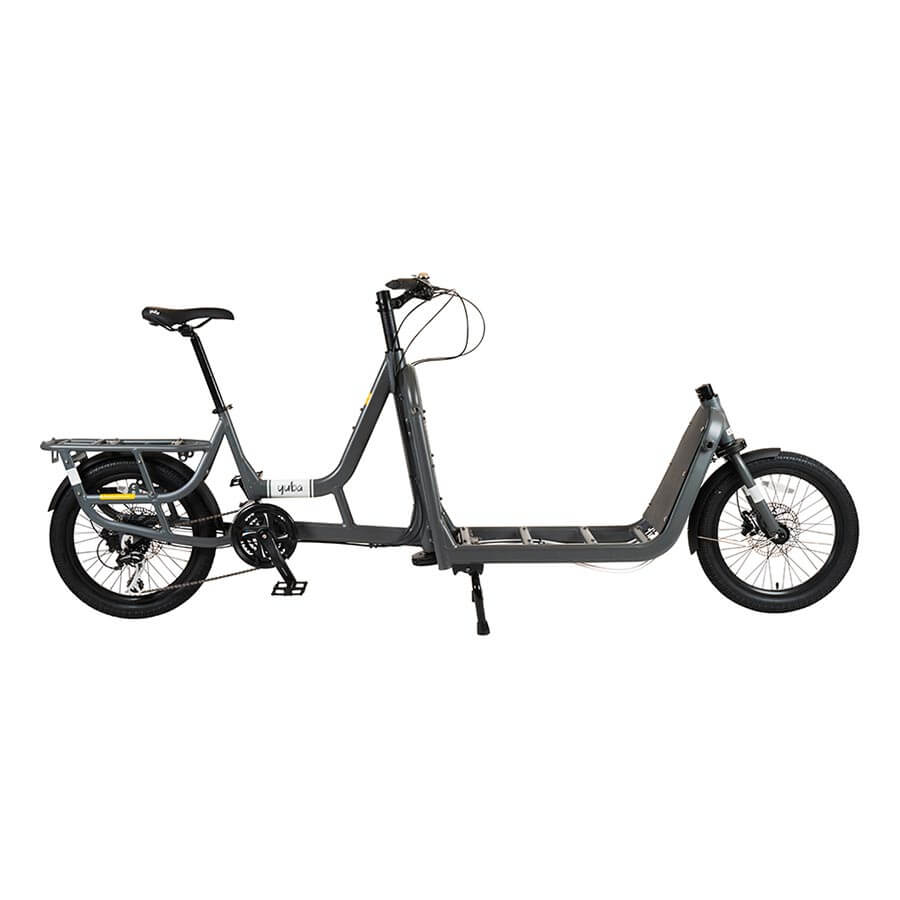

Product Specifications:

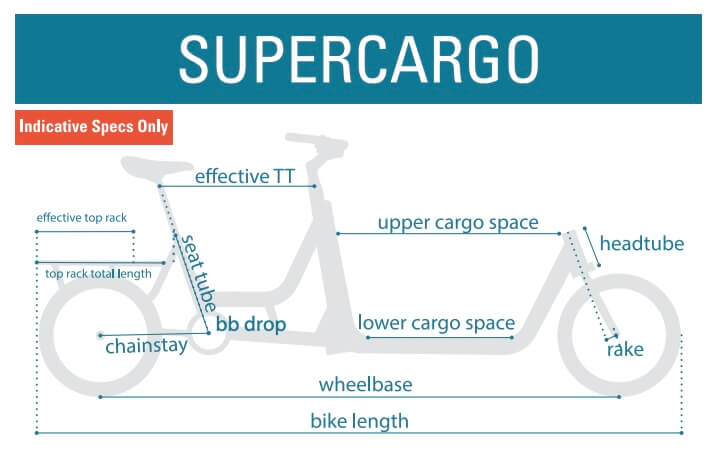

SUPERCARGO ONE SIZE

• Effective Top Tube 610mm
• Seat Tube 420mm
• Head Angle 69º
• Seat Tube Angle 71º
• Chainstay 425mm
• Bottom Bracket Drop N/A
• Head Tube 150mm
• Fork Rake 48mm
• Wheelbase 2060mm
• Bike Length 2600mm
• Top Rack Total Length 525mm
• Effective Top Rack Length 400mm
• Upper Cargo Space 895mm
• Lower Cargo Space 575mm

• Minimum Rider Height 4’9”
• Maximum Rider Height 6’5”

• Vendor Item No. SM-0002GR (Grey)

FRAME KIT

• Frame Supercargo 6061-T6 Aluminum w/Disc Tab
• Fork Supercargo Cr-Mo 1.5” Threadless w/Disc Tab
• Sideloaders Included

COCKPIT

• Headset VP 1.5” Semi-integrated Threadless
• Stem Yuba 1.5” Adjustable Stem 100mm
• Handlebars Yuba 31.8mm Riser Handlebars
• Grips Yuba Ergo Grip w/Clamp
• Saddle Yuba Comfort Saddle
• Seatpost 30.9mm Aluminum 400mm (500mm Optional)

BRAKE KIT

• Levers Tektro Vela Hydraulic
• Brake Tektro Vela Hydraulic
• Rotor Tektro (180mm Front | 180mm Rear)

TRANSMISSION

• Motor System N/A
• Front Derailleur Shimano FD-M310
• Rear Shifting Shimano FL-M310
• Shift Lever Shimano FL-M310
• Sprocket Shimano CS-HG318
• Chain KMC Z7
• Crankset Shimano FC-M361
• Pedals Alloy Flat

WHEELS

• Rims DB-32 MTB Double Wall (36H Front | 36H Rear)
• Hubs Quick Release Loose Ball Bearing
• Tires Yuba GMD 20”x 2.3”

WEIGHT SPECS

• Bike Weight 58.4 lbs (26.5 kg)
• Max G.V.W.R. 440 lbs (200 kg)

INCLUDES:

• Bell, Double Kickstand, Fenders

COMPATIBLE ACCESSORIES

Supercargo Canopy (AC-SM009)

Bamboo Box (AC-SM002)

Pin Lock (AC-LK001)
