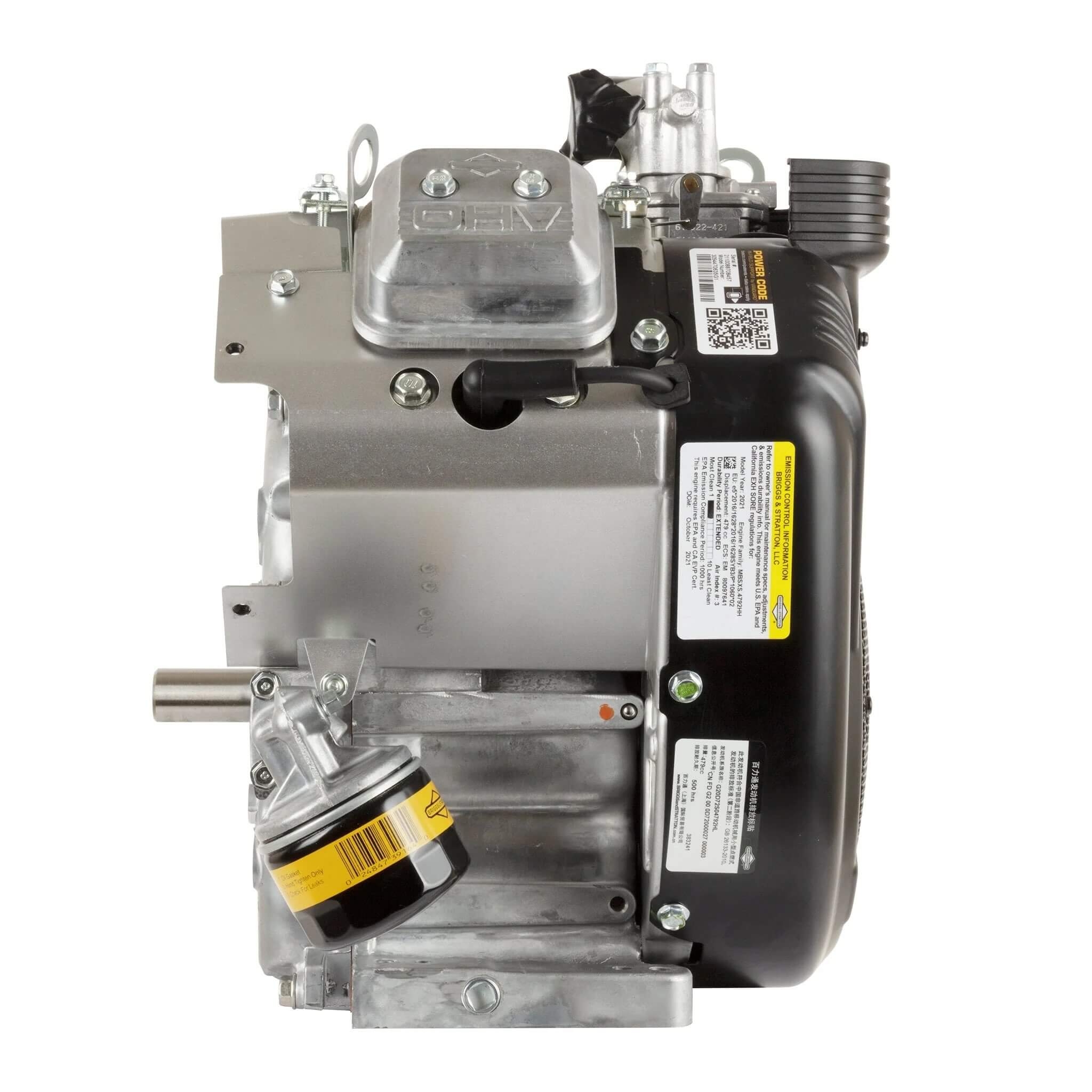

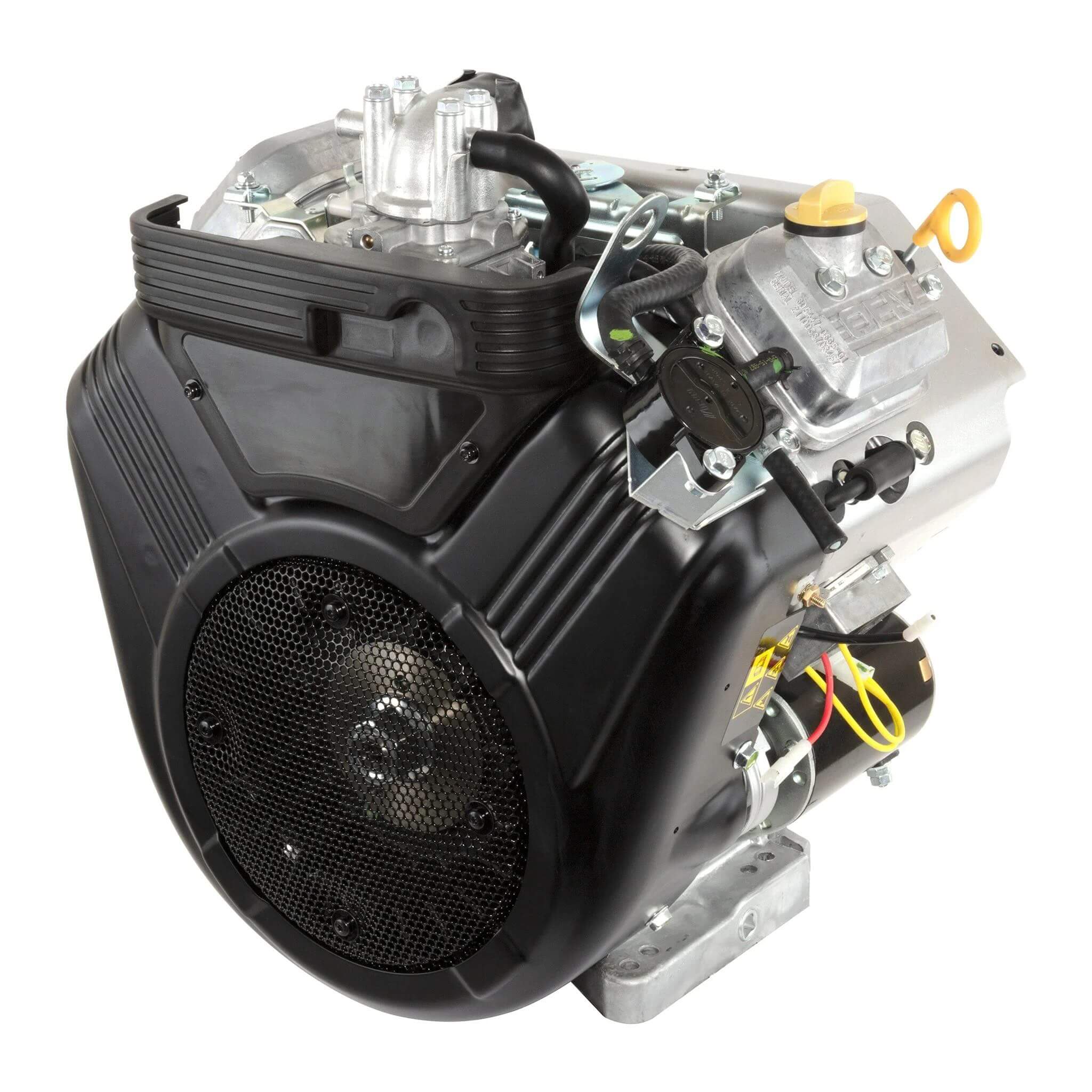

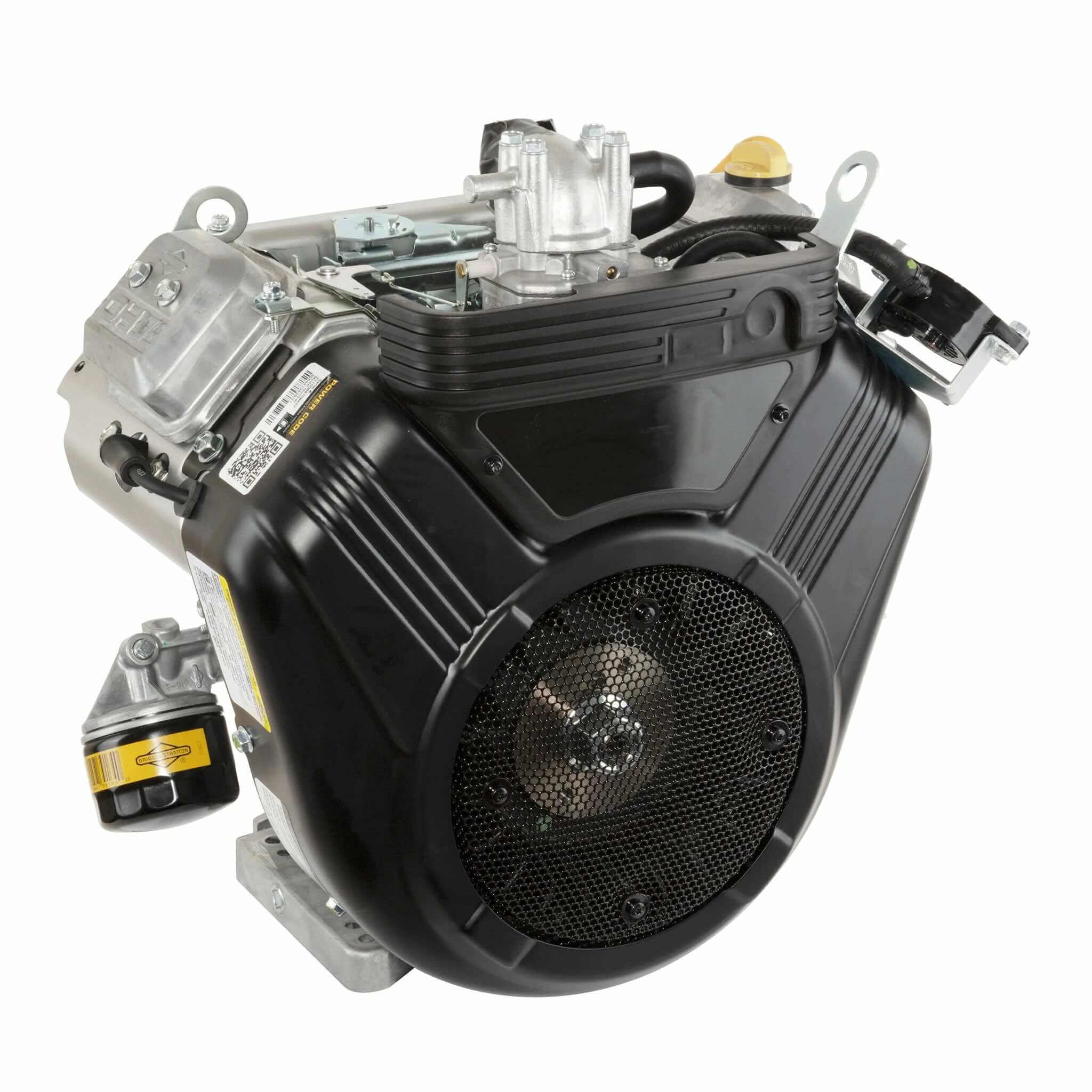

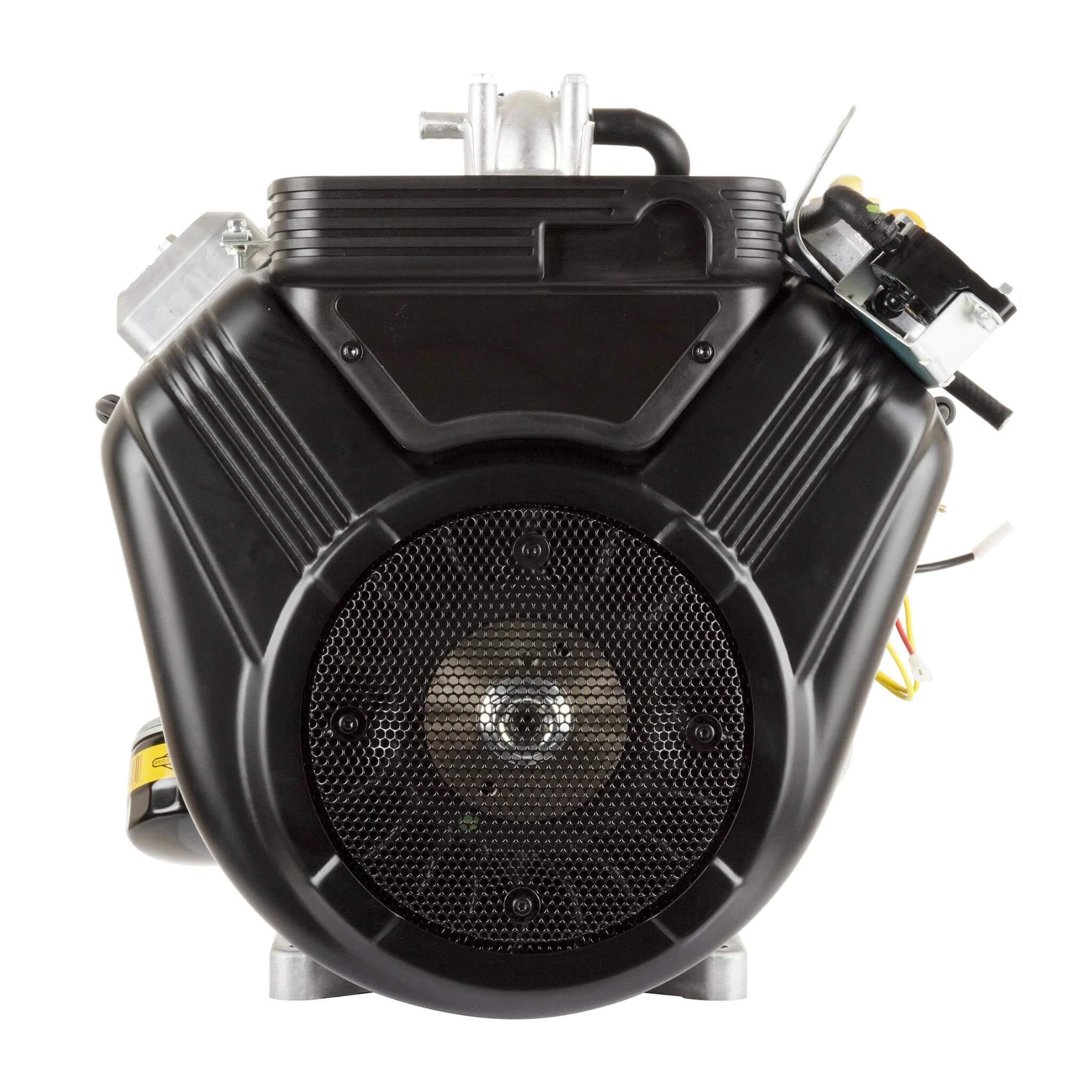

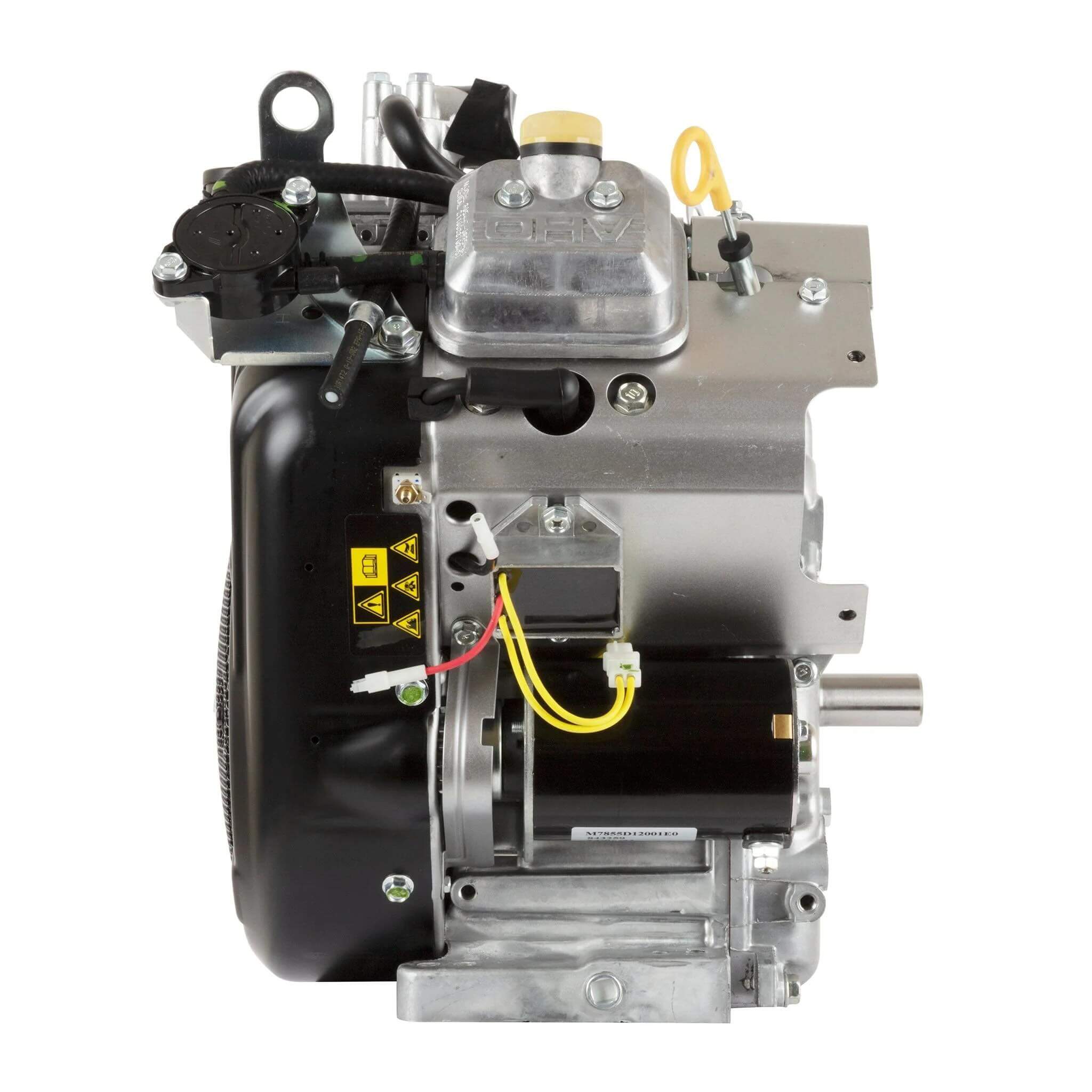

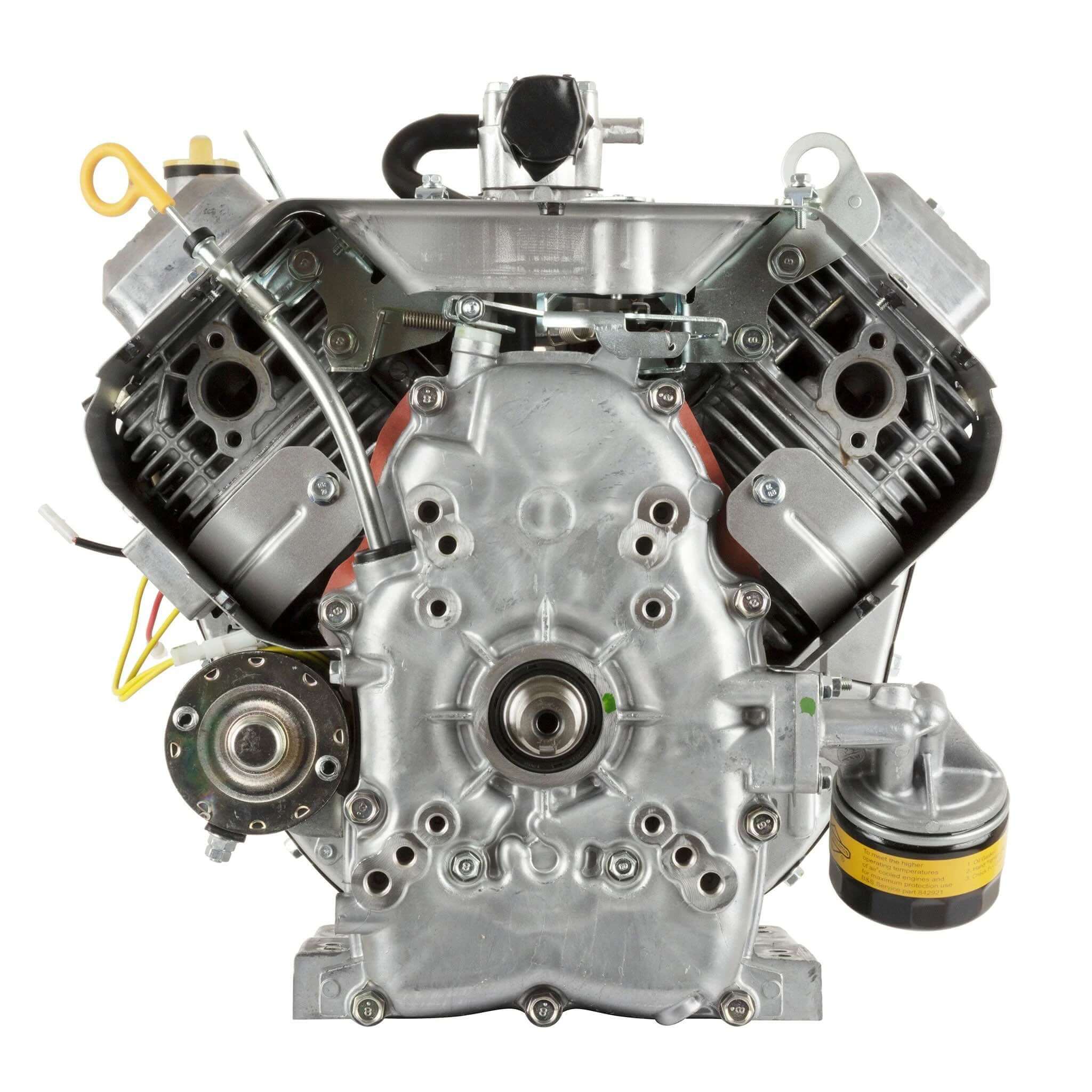

Briggs & Stratton Vanguard 16 HP 479cc Horizontal Engine 305447-0635-G1

Our Vanguard 16.0 Gross HP engines offer an excellent power to weight ratio. This ensures that you get maximum performance without sacrificing comfort and usability. The model 305447-0635-G1 boasts 479 CC, a 2.68 in. (68.07 mm) bore, and 2.60 in. (66.00 mm) stroke sending power to a robust 1 in. by 2 shaft. Your new Briggs and Stratton engine is backed by a history of excellence as well as a very competitive warranty.

Features:

• Float carburetor for consistent easy starting

• Dual-Clean air cleaner pleated paper filter with a foam pre-cleaner ensures maximum protection for extended engine life

• Dual-Clean air cleaner pleated paper filter with a foam pre-cleaner ensures maximum protection for extended engine life

• Overhead valve design (OHV) for cooler operation and longer valve life

• EPA compliant: Which means it meets all stringent environmental standards, ensuring reduced emissions and a cleaner running engine.

Product Specifications:

• Gross Horsepower    16.0 HP

• Engine Displacement    479 cc

• Cylinders    Single cylinder

• Engine Type    4-Stroke, Overhead Valve (OHV)

• Bore x Stroke    2.68 in. x 2.60 in. (68.07 mm x 66.00 mm)

• Shaft Orientation    Horizontal

• Crankshaft Diameter    1 inch

• Crankshaft Length    2 inches (or 1.92" extension from the mounting face)

• Crankshaft End    Tapped 3/8"-24

• Keyway    1/4" square keyway

• Oil Capacity    48 fl. oz. (1.42 L)

• Fuel Type    Gasoline (unleaded 86 octane or higher recommended)

• Starting System    12 Volt Electric Start

• Charging System    16 Amp DC Alternator

• Muffler Included    No

• Fuel Tank Included    No (requires remote tank)

• Cooling System    Air cooled

• Lubrication System    Full pressure with spin-on oil filter

• Air Cleaner    Dual-Clean™ pleated paper filter with foam pre-cleaner (Note: this specific model for TORO may not include the air cleaner assembly)

• Compliance    EPA Compliant

Note: Due to the nature of engines and the inability to verify installation, handling, or operating conditions once delivered, this product is not eligible for return.
