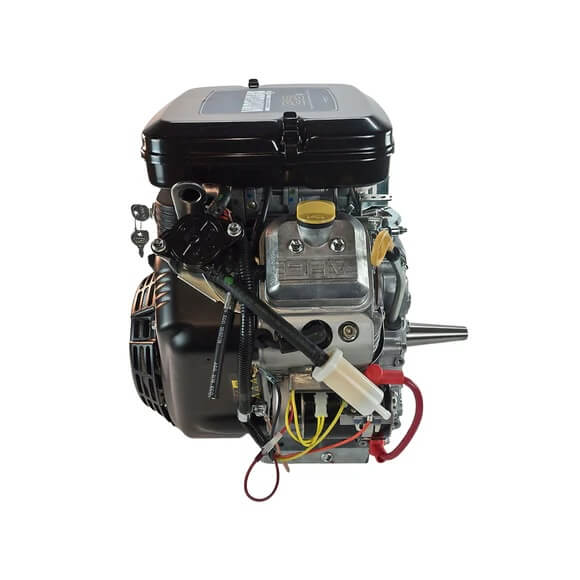

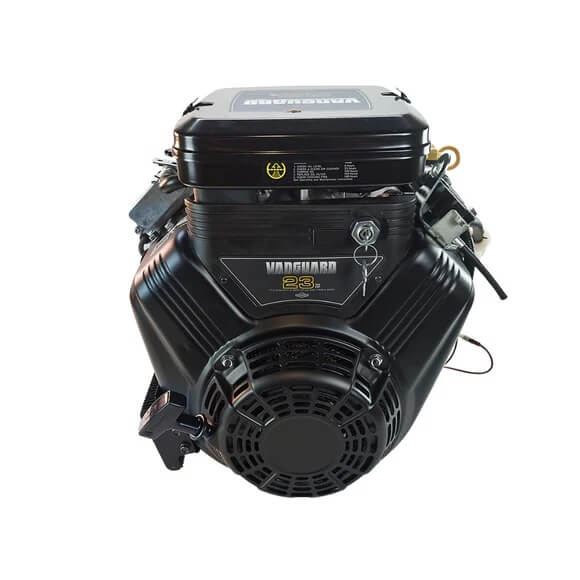

Briggs & Stratton Vanguard 23 HP 627cc Horizontal Shaft Engine 386447-0515-G1

Our Vanguard 23.0 Gross HP engines offer an excellent power to weight ratio. This ensures that you get maximum performance without sacrificing comfort and usability.

The model 386447-0515-G1 boasts 627 CC, a 2.97 in. (75.44 mm) bore, and 2.76 in. (70.10 mm) stroke sending power to a robust Taper by 3-2164 shaft.

Your new Briggs and Stratton engine is backed by a history of excellence as well as a very competitive warranty.

Features:

• Float carburetor for consistent easy starting

• Dual-Clean air cleaner pleated paper filter with a foam pre-cleaner ensures maximum protection for extended engine life

• Dual-Clean air cleaner pleated paper filter with a foam pre-cleaner ensures maximum protection for extended engine life

• Overhead Valve (OHV) Engine Design; OHV engines run cooler and cleaner for better fuel economy and longer engine life

• EPA compliant: Which means it meets all stringent environmental standards, ensuring reduced emissions and a cleaner running engine.

Product Specifications:

• Engine Series    Vanguard Series

• Horsepower (Gross HP)    23.0 HP

• Engine Displacement    627 cc

• Cylinders    V-Twin, 2-cylinder

• Valvetrain Type    Overhead Valve (OHV)

• Shaft Type    Horizontal, Tapered (3-51/64"L)

• Starting Type    Electric (12-volt gear drive) and Recoil Start

• Alternator    16 Amp DC charging system

• Fuel Delivery    Float carburetor

• Lubrication    Full pressure with spin-on oil filter

• Oil Capacity    1.5 US Quarts (1.4 L)

• Cooling    Oil Cooler (Yes)

• Muffler Included    No

Note: Due to the nature of engines and the inability to verify installation, handling, or operating conditions once delivered, this product is not eligible for return.
