The Shure SLXD24D/B58 Dual Wireless Microphone System provides transparent, 24-bit digital audio and rock-solid RF performance.
It's perfect for corporate conventions and concert stage performances. This wireless setup allows you to operate up to 32 compatible systems per 44MHz band, with easy setup and optional rechargeability accessories for wireless excellence, wherever required.

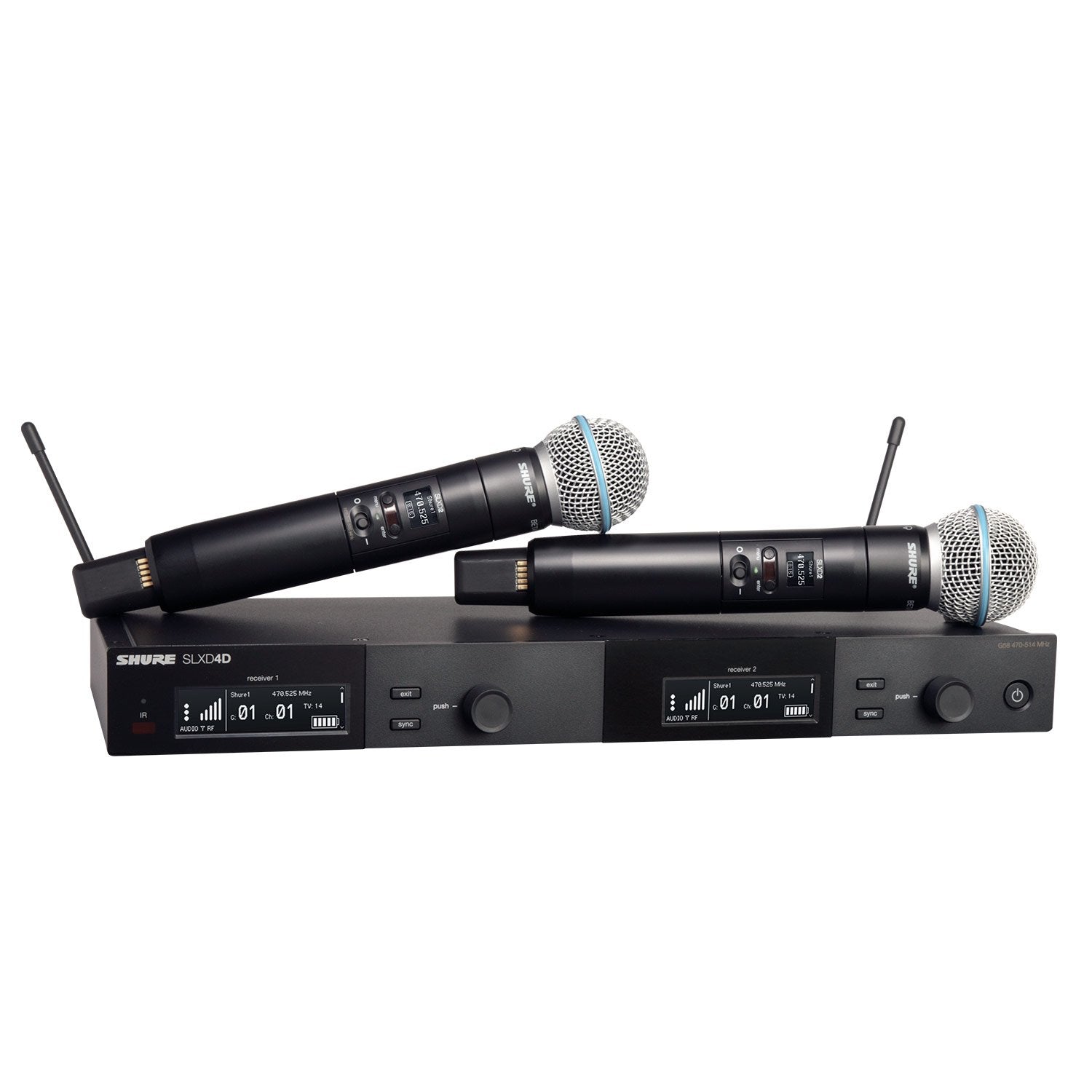

This wireless system features a Shure SLXD4D dual-channel receiver, two SLXD2 handheld transmitters with legendary Beta 58A supercardioid dynamic capsules, antenna and rackmount accessories.
Why BUY the Shure SLXD24D/B58 Dual Wireless Vocal Microphone System:
- CRYSTAL CLEAR SOUND: In front of an audience, clarity is essential. SLX-D provides crystal-clear digital audio quality with over 120 dB dynamic range.
- STABLE SIGNALS, NO DROPOUTS: From the leader in digital wireless technology, SLX-D maintains stable signals with high efficiency for rock-solid, reliable performance.
- LONG PERFORMANCE TIME: Ready to perform for all-day conferences and nighttime performances- up to 8 hours of use from either 2 AA batteries (included) or optional Shure SB903 Li-ion rechargeable batteries and charging accessories.
Features:
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 120 dB dynamic range
- Digital predictive switching diversity
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz band
- Easy pairing of transmitters and receivers over IR scan and sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
Product Specifications:
SYSTEM SPECIFICATIONS |
|
RF |
|
RF Carrier Frequency Range |
470 to 514MHz (G58 Band) 514 to 558 MHz (H55 Band) 558 to 602MHz and 614 to 616MHz (J52 Band) |
Working Range |
100 m (328 ft) Note: Actual range depends on RF signal absorption, reflection and interference. |
RF Tuning Step Size |
25 kHz |
Image Rejection |
>70 dB (typical) |
RF Sensitivity |
?97 dBm at 10-5 BER |
AUDIO |
|
Latency |
3.2 ms |
Audio Frequency Response |
20 Hz - 20 kHz (+1, ?2 dB) |
Audio Dynamic Range (A-weighted, typical) |
120 dB @1% THD |
Total Harmonic Distortion |
<0.02% |
System Audio Polarity |
XLR: Positive pressure on microphone diaphragm produces positive voltage on pin 2 with respect to pin 3 of XLR output. TRS: Positive pressure on microphone diaphragm produces positive voltage on the tip of the 6.35mm (1/4-inch) with respect to the ring of the 6.35mm output. |
Mic Offset Range |
0 to 21 dB (in 3 dB steps) |
TEMPERATURE RANGE (Note- Battery characteristics may limit this range) |
Operating Temperature Range - 0 deg. F to 122 deg. F (?18 deg. C to 50 deg. C) Storage Temperature Range - ?20 deg. F to 165 deg. F (?29 deg. C to 74 deg. C) |
SLXD4D DUAL-CHANNEL DIGITAL WIRELESS RECEIVER |
|
Dimensions (H x W x D) |
1.65 x 15.5 x 5.98 in (42 x 393 x 152 mm) |
Weight |
3.2 lb (1451 g) (without antennas) |
Housing |
Galvanized Steel |
Power Requirements |
15 VDC @ 600 mA Supplied by external power supply (tip positive) |
RF INPUT |
|
Spurious Rejection |
>75 dB Typical |
Connector Type |
BNC |
Impedance |
50 ohm |
AUDIO OUTPUT |
|
Gain Adjustment Range |
- 18 to +42 dB in 1 dB steps |
Configuration |
1/4" (6.35 mm): Balanced (Tip=audio +, Ring=audio - , Sleeve = ground) XLR: Balanced (1=ground, 2=audio +, 3=audio - ) |
Impedance |
1/4" (6.35 mm): 1.3 k ohm (670 ohm Unbalanced) XLR (line): 400 ohm (200 ohm Unbalanced) XLR (mic): 150 ohm |
Full Scale Output |
1/4" (6.35 mm): +15 dBV differentially (+9 dBV single) XLR (LINE setting): +15 dBV XLR (MIC setting): - 15 dBV |
Mic/Line Switch |
30 dB pad |
Phantom Power Protection |
1/4" (6.35 mm): Yes XLR: Yes |
NETWORKING |
|
Network Interface |
Single Port Ethernet 10/100 Mbps |
Network Addressing Capability |
DHCP or Manual IP address |
Maximum Cable Length |
100 m (328 ft) |

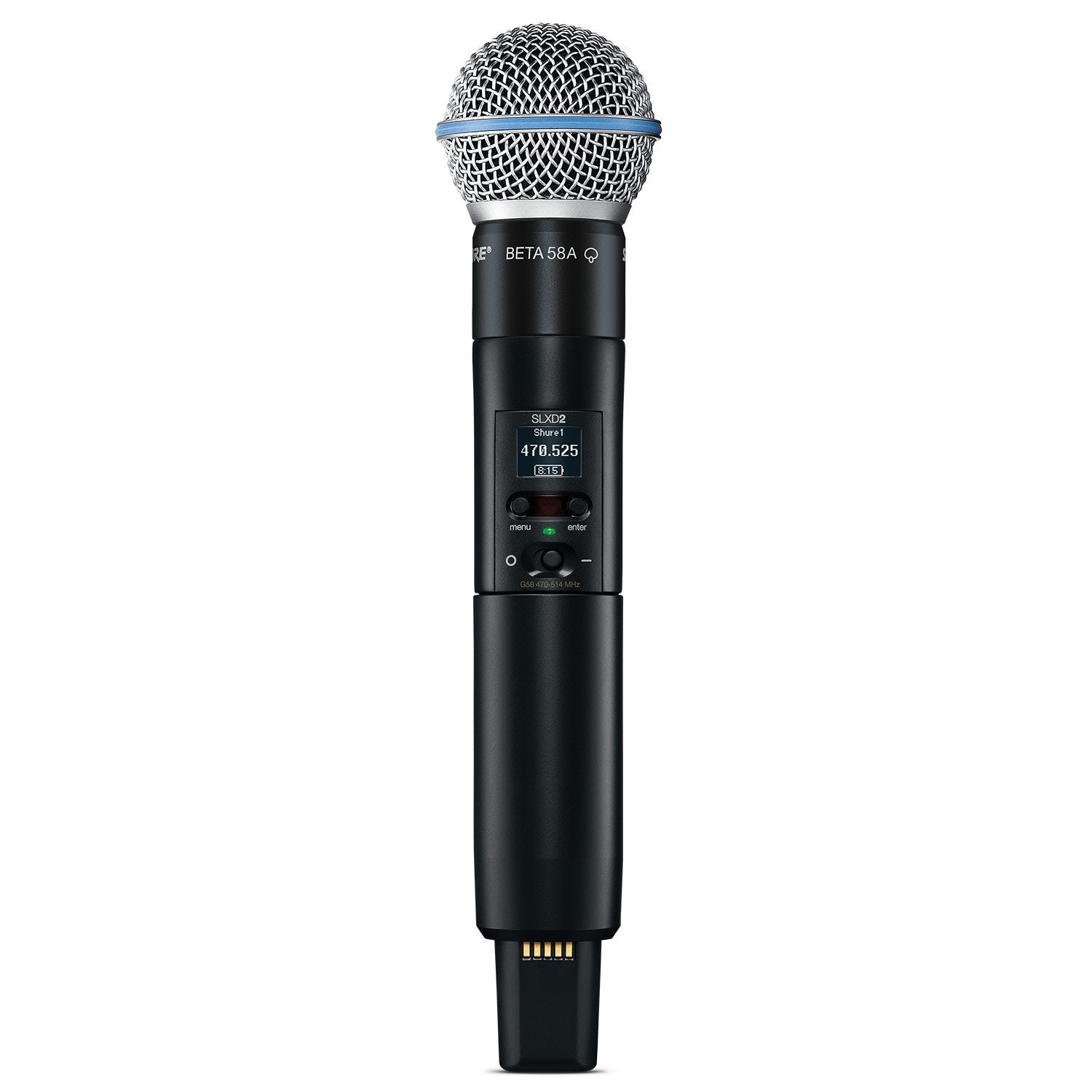

SLXD2 DIGITAL WIRELESS HANDHELD TRANSMITTER |
|
Battery Type |
Rechargeable Li-Ion or 1.5 V AA batteries |
Dimensions (Dia. x L) |
1.46 x 6.93 in (37.1 x 176 mm) |
Weight |
5.2 oz. (147 g) |
Housing |
Aluminum |
AUDIO INPUT |
|
Configuration |
Unbalanced |
Maximum Input Level |
8.2 dBV (2.57 Vrms, 7.27 Vpp) Note: Dependent on Microphone Type |
RF OUTPUT |
|
Antenna Type |
Integrated Single-Band Helical |
Occupied Bandwidth |
<200 kHz |
Modulation Type |
Shure Propietary Digital |
Power |
1 mW/10 mW Varies by region. See Frequency Range and Output Power Table. |
