ENVE G23 Wheel

This is the ENVE G23 Wheel.  You can choose your Position, Hub Spacing, and Freehub Body options above.

We set out to create a wheel that would maximize speed, fun and reliability while riding out-there terrain.

At only 330 grams, the G23 is the lightest 700c tubeless rim ENVE produces.  This makes for instant acceleration and endless ascending capability.

The wide and shallow rim geometry gives a compliant ride quality over chatter, and allows for use with a wide range of tire sizes.

Big tires = big grip, which gives the G23 confidence-inspiring descending capability over its road-oriented siblings.

INNERDRIVE PREMIUM ROAD HUB

Featured in all SES and G Series wheels is the ENVE Premium Straight Pull hub, an all-new, 100% ENVE drive mechanism. Oversized steel ratchets are positioned inboard and over the bearings, reducing stress on the axle and bearings while ensuring positive and reliable engagement. Key benefits of the INNERDRIVE™ Premium hub include:

Weight Savings: The new ENVE INNERDRIVE™ Premium straight pull hub offering delivers 60 grams of weight savings over ENVE’s previous generation hub offering.
Four Engagement Options: Interchangeable ratchets allow riders to tune their rides for their personal performance needs. Whether it be maximizing efficiency, response, or reliability, we have a solution. Ratchet options include: 40 tooth, 60t, 80t, 100t.
Consistent Spoke Lengths: The all-new straight-pull hubshell allows for the use of a single spoke length for any given rim diameter, creating an easy user experience for service and maintenance.
Anti-twist Spoke Hole: To further improve the quality of the wheel build, spoke tension consistency, and to prevent spoke damage during wheel build, an anti-twist feature has been included to prevent the spoke from twisting during wheel build or while riding.
Silent Spoke Crossings: The straight-pull hubshell puts space between each spoke ensuring that your ENVE wheelset cannot experience spoke creak.

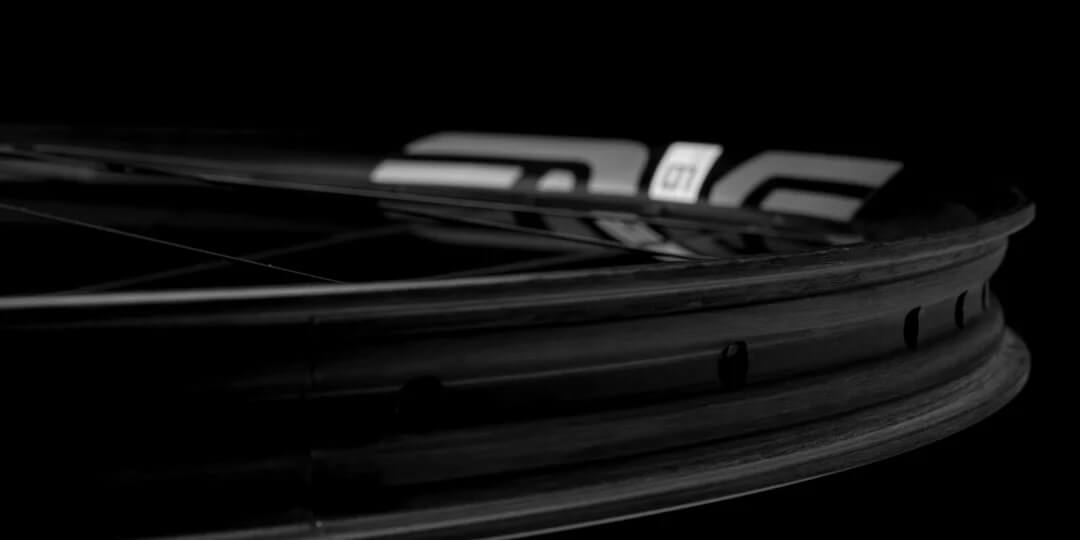

WIDE HOOKLESS BEADS

As carbon rims have become hookless and increasingly more durable, we have transitioned from rim failures to tire failures. Wearing a tire tread down to the casing is a thing of the past as most tires are lucky if they survive 50 miles of aggressive riding over obstacle laden terrain. While destroying an expensive tire on a weekly basis isn’t affordable, it’s a complete interruption of flow, and an utter buzzkill with a flat tire, regulated to the side of the trail.

ENVE’s wide hookless bead is the result of 2 years of carbon mountain bike rim development to address this above scenario. The result is a rim shape that features a wider leading edge of the hookless bead. This broad surface creates a more forgiving platform on which the tire can bottom out, and proves extremely effective in reducing the likelihood of “pinch” or “snake-bite” style flat.

In addition to greatly improving tire performance and reliability, the wide hookless bead design beefs up the leading edge of the rim and allows for greater impact resistance.

ENVE Wide Hookless Bead (Patent Pending) delivers:

• 60% improvement in pinch flat resistance over other hookless rims
• Ability to run lower tire pressure and improve traction and rolling resistance
• The option to run lighter weight tires if desired
• A more forgiving buffer between rim and trail
• Greater impact resistance

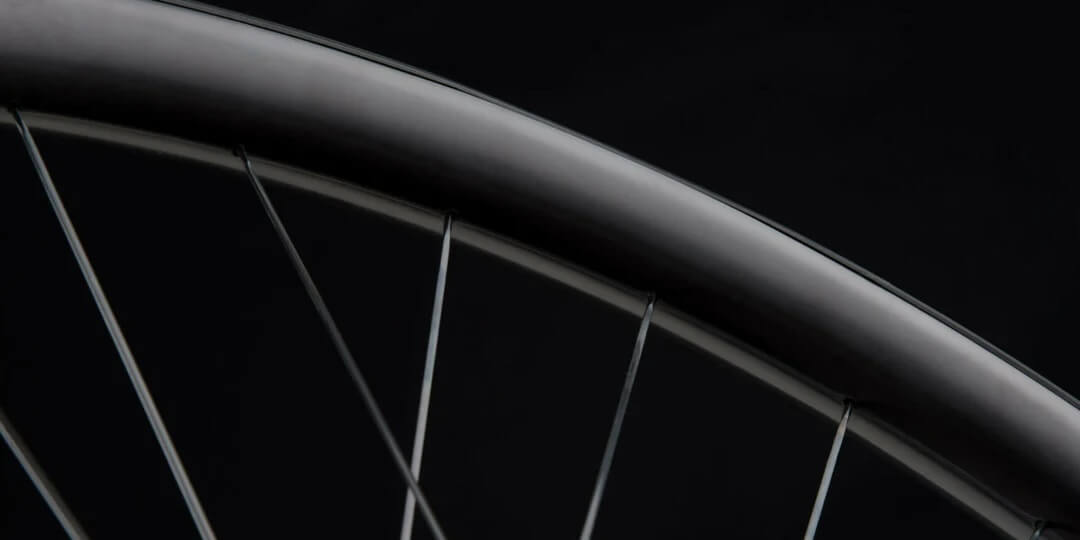

MOUNTAIN STRONG, ROAD FAST

ENVE’s patented Molded Spoke Hole Technology offers a variety of benefits that ultimately result in a more durable and reliable carbon fiber rim and wheel. Visit Why ENVE for more details.

At ENVE, product strength and durability are always top design priorities. Here’s a glimpse into the G Series toughness and the standard by which all other gravel wheels will be judged.

G SERIES IMPACT STRENGTH COMPARISON

• Tested to ENVE mountain impact standard
• Rated for unsuspended to lightly suspended bikes under the assumptions that technical terrain and obstacles are negotiated at lower speeds than mountain bike
• Mountain strong, but not ENVE mountain strong.
• While these wheels are stronger than many mountain bike wheels in the market, they rate just below the elevated impact strength of our new M Series

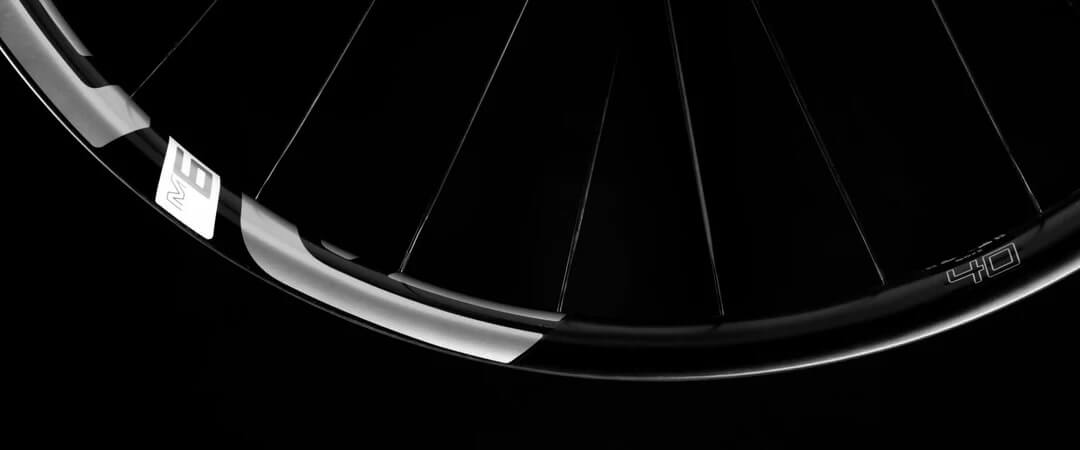

HIGH VOLUME

G23 = 700c x 23mm Internal Rim Width x 35 – 45mm tires
Riders looking for maximum versatility, speed and efficiency will gravitate towards the G23 paired with a 40mm tire. There’s a reason this is the most popular tire size in gravel right now.

Features:

• Intended Use: Gravel
• Inner rim width: 23mm
• Recommended Tire Size: 33c – 45c
• Tubeless Optimized; Tube Compatible

Product Specifications:

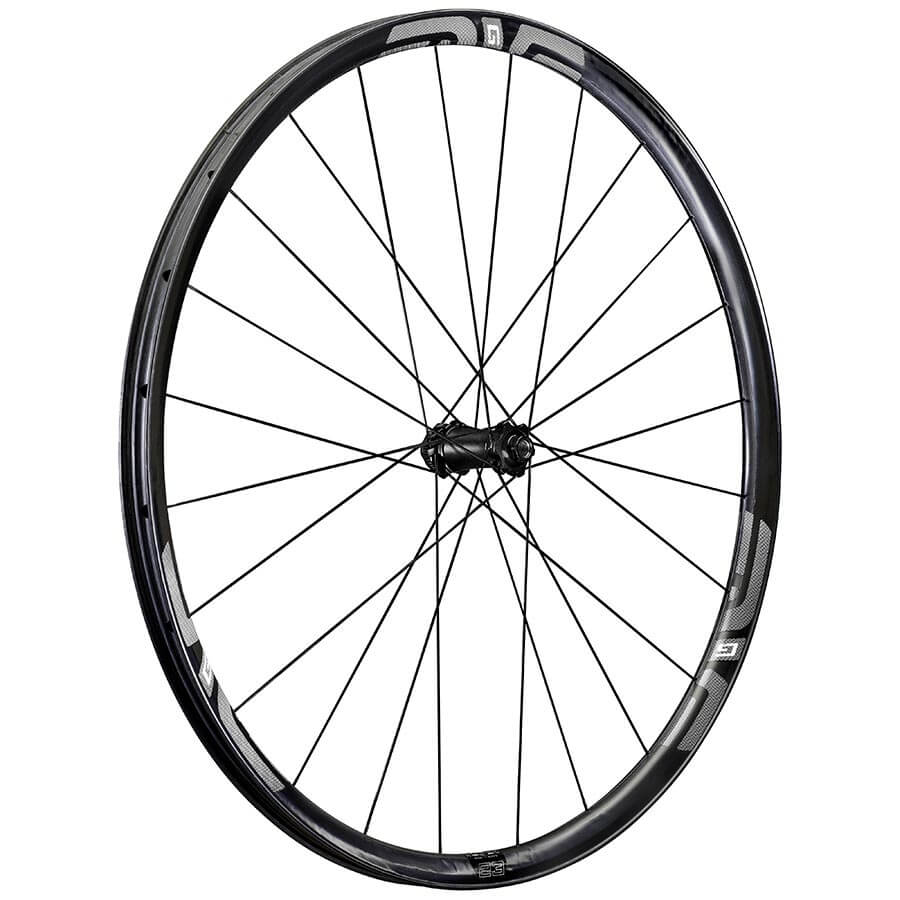

Front Wheel, Hub Spacing 100mm, Freehub Body N/A

• Position: Front
• Wheel Diameter/ISO: 700C / 622
• Hub Model: ENVE INNERDRIVE
• Axle Type: 12mm TA
• Hub Spacing: 100mm
• Freehub Body: -
• Wheel Tire Type: Tubeless Compatible
• Rim Drilling: 24
• Wheel-Brake Comp.: Disc Center Lock
• Wheel Weight: 570g
• Rim Material: Carbon
• Spoke Type: J-Bend
• Valve: Presta
• Rim Construction: Carbon
• Rim Internal Width: 23mm
• Rim External Width: 31.5mm
• Depth: 25mm
• Rim Model: G23
• Skewers Included: No
• Rim Inner Width Range: 22-27.9mm
• Rim Color: Black
• Vendor Item No: 100-3312-055

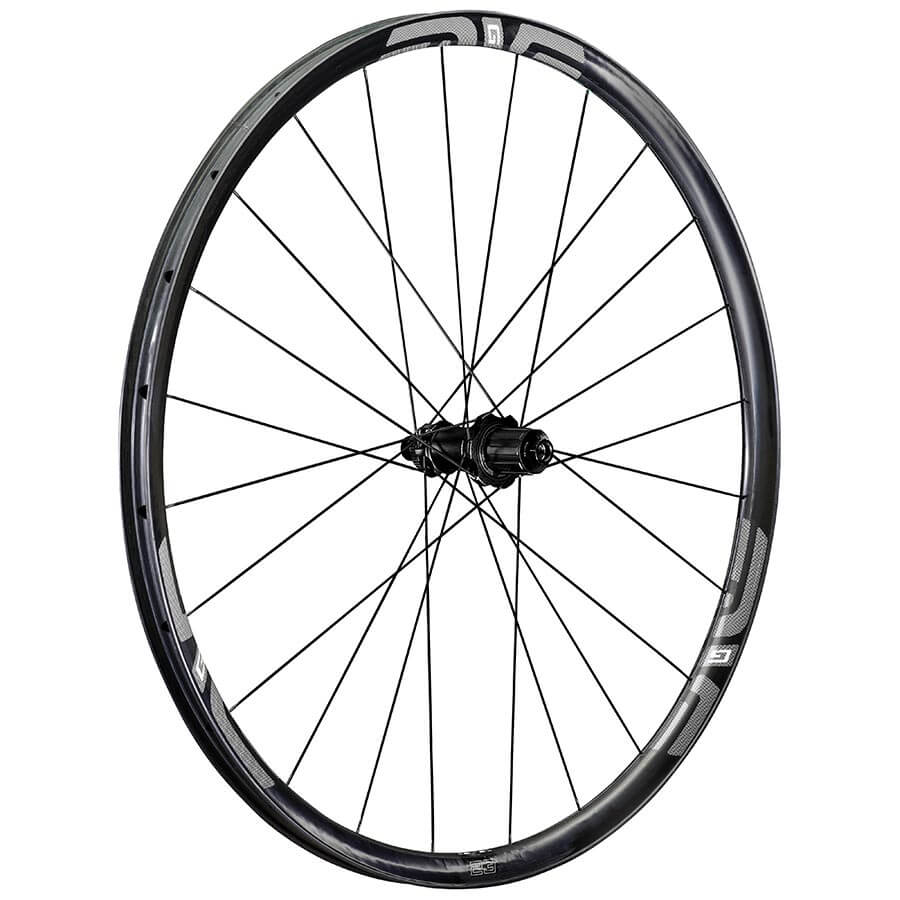

Rear Wheel, Hub Spacing 142mm, Freehub Body Shimano HG 11

• Position: Rear
• Wheel Diameter/ISO: 700C / 622
• Hub Model: ENVE INNERDRIVE
• Axle Type: 12mm TA
• Hub Spacing: 142mm
• Freehub Body: Shimano HG 11
• Wheel Tire Type: Tubeless Compatible
• Rim Drilling: 24
• Wheel-Brake Comp.: Disc Center Lock
• Wheel Weight: 692g
• Rim Material: Carbon
• Spoke Type: J-Bend
• Valve: Presta
• Rim Construction: Carbon
• Rim Internal Width: 23mm
• Rim External Width: 31.5mm
• Depth: 25mm
• Rim Model: G23
• Skewers Included: No
• Rim Inner Width Range: 22-27.9mm
• Rim Color: Black
• Vendor Item No: 100-3312-056

Rear Wheel, Hub Spacing 142mm, Freehub Body SRAM XD-R

• Position: Rear
• Wheel Diameter/ISO: 700C / 622
• Hub Model: ENVE INNERDRIVE
• Axle Type: 12mm TA
• Hub Spacing: 142mm
• Freehub Body: SRAM XD-R
• Wheel Tire Type: Tubeless Compatible
• Rim Drilling: 24
• Wheel-Brake Comp.: Disc Center Lock
• Wheel Weight: 692g
• Rim Material: Carbon
• Spoke Type: J-Bend
• Valve: Presta
• Rim Construction: Carbon
• Rim Internal Width: 23mm
• Rim External Width: 31.5mm
• Depth: 25mm
• Rim Model: G23
• Skewers Included: No
• Rim Inner Width Range: 22-27.9mm
• Rim Color: Black
• Vendor Item No: 100-3312-057

Dimensions:

FRONT Wheel, REAR Wheel

• Depth: 25mm, 25mm
• Internal Width: 23mm, 23mm
• External Width: 31.5mm, 31.5mm
• Hole Count: 24, 24
• Effective Rim Diameter: 608, 608
• Optimized Tire Sizes: 33c-45c, 33c-45c
• Accepted Tire Sizes: 28c-50c, 28c-50c
