ENVE SES 4.5 Wheel



Save 20%
Original Price $ 1,599.95
Current Price $ 1,282.95


Notify me when back in stock




This is the ENVE SES 4.5 Wheel.  You can choose your Position, Hub Spacing, and Freehub Body options above.

Originally designed for the cobbles and crosswinds of Paris-Roubaix to provide an aero benefit with high volume tires, the SES 4.5 was the first of its kind and is now re-designed to deliver more speed in a lightweight package.

INNERDRIVE PREMIUM ROAD HUB


Featured in all SES and G Series wheels is the ENVE Premium Straight Pull hub, an all-new, 100% ENVE drive mechanism. Oversized steel ratchets are positioned inboard and over the bearings, reducing stress on the axle and bearings while ensuring positive and reliable engagement. Key benefits of the INNERDRIVE™ Premium hub include:

  • Weight Savings: The new ENVE INNERDRIVE™ Premium straight pull hub offering delivers 60 grams of weight savings over ENVE’s previous generation hub offering.
  • 4 Engagement Options: Interchangeable ratchets allow riders to tune their rides for their personal performance needs. Whether it be maximizing efficiency, response, or reliability, we have a solution. Ratchet options include: 40 tooth, 60t, 80t, 100t.
  • Consistent Spoke Lengths: The all-new straight-pull hubshell allows for the use of a single spoke length for any given rim diameter, creating an easy user experience for service and maintenance.
  • Anti-twist Spoke Hole: To further improve the quality of the wheel build, spoke tension consistency, and to prevent spoke damage during wheel build, an anti-twist feature has been included to prevent the spoke from twisting during wheel build or while riding.
  • Silent Spoke Crossings: The straight-pull hubshell puts space between each spoke ensuring that your ENVE wheelset cannot experience spoke creak.

REAL-WORLD FAST


ENVE’s aero wheel development program is driven by our Real-World Fast mantra. This means that each wheel is developed under consideration of airflow efficiency, crosswind stability, handling, weight, tire integration, and much more. The result is a refined collection of wheels that are purpose built to be best-in-class and provide the maximum speed and efficiency benefit available for their intended discipline application.

Over time, the SES 4.5 has redefined the bar by which all other aero wheels are judged. Faster than nearly all our competitor’s deeper wheels, while also being lighter, and more confidence inspiring in gusting crosswinds, the SES 4.5 is the ENVE house favorite for a reason. If you’re a speedfreak looking for the perfect race wheelset, look no further.

THE SES DIFFERENCE


There’s a simple reason why SES wheels consistently score “best in test” in nearly any third-party aero test. We’re committed to sweating the small stuff and chasing the marginal gains that others will not.

In-frame development and ride testing have taught us that unique rim shapes and constructions between the front and back wheels optimize efficiency and the ride experience.

  • Front wheels are designed to maximize crosswind stability. A rider's stability on the bike, especially in time trial and triathlon, is critical for aero efficiency and overall performance.
  • Rear wheels are designed to recapture air flow as it passes from the front of the bike to the back, which maximizes drag reduction.

Aerodynamically optimized around modern high-volume tubeless tires.

  • The all-new SES lineup was developed around the ENVE SES 27mm tire.

Tested at 20 mph (32 kph) and 30 mph (48 kph). Our SES promise of Real-World Fast isn’t limited only to cycling’s elite.

Weighted Average Drag - All wind angles are not created equally. Anemometer data shows that most of your ride time will be spent in wind at less than 12 degrees yaw. Weighted average drag is a tool that helps a rider understand the aero efficiency of a wheelset in real-world wind and riding conditions.

TUBELESS OPTIMIZED


Greater speed, comfort, grip and puncture resistance – what’s not to like about road tubeless? With the selection of a high performance tire at the right pressure, you can achieve lower rolling resistance and more speed. Tubeless also allows you to run much lower tire pressures for far greater comfort, traction, and efficiency, especially over poor road surfaces and gravel, all without sacrificing speed. The potential for pinch flats and, with sealant, debris punctures is all but eliminated.

Tubeless represents the pinnacle of road wheel and tire performance, and the hookless bead design plays a significant role. A hookless rim design allows for machined metal tooling to establish a precise and consistent bead seat diameter that meets the defined requirement by ETRTO. That precision fitment between the tubeless tire bead and the rim’s bead seat ensures air and tire retention.

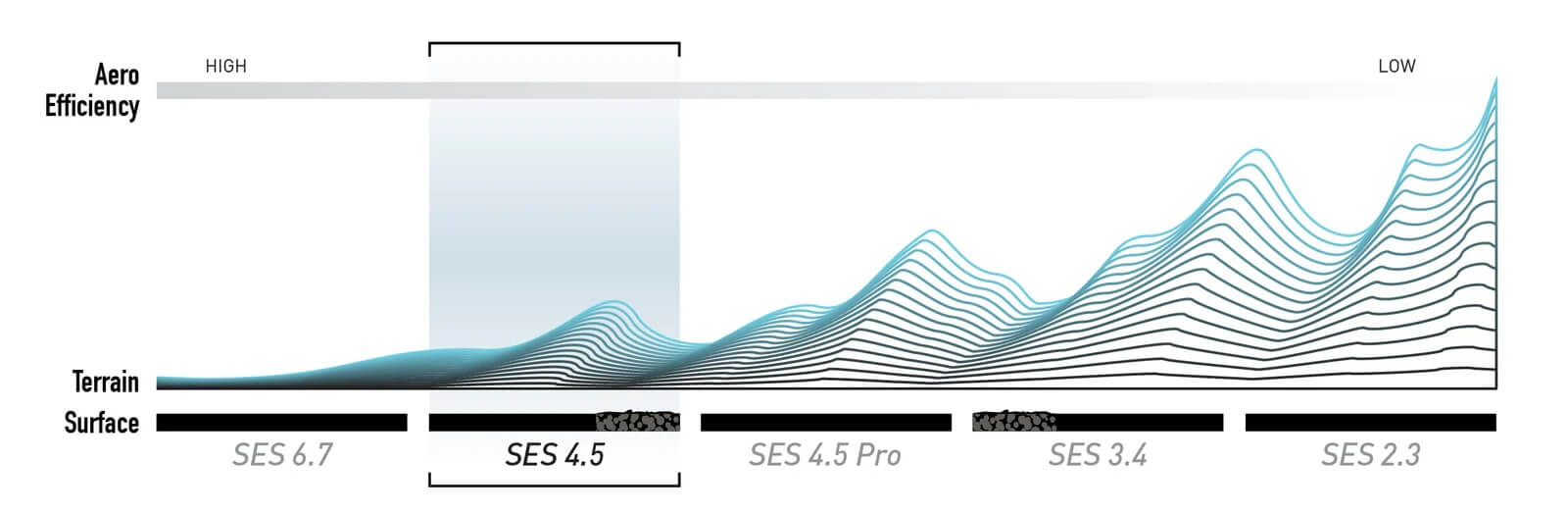

AERO EFFIECIENCY & TERRAIN SURFACE

The ENVE house favorite for its outright speed and confidence-inspiring ride, the SES 4.5 has been re-engineered to reduce weight, increase aero efficiency and further expand its capabilities when the going gets fast.  Whether you’re pinning on the number for race day or seeking the fastest road wheelset across undulating terrain, the SES 4.5 is in the sweet spot for speed.

Originally designed to provide an aerodynamic advantage across the cobbles of Paris-Roubaix when running high-volume 28-32mm tires, the SES 4.5 AR was the first of its kind when it was introduced in 2016.  In its current version, we’ve taken all the best features of the SES 4.5 AR, such as the high-volume tire optimized rim design and shaping that gives it class-leading aerodynamics and stability, and updated it to include anti pinch-flat technology along with a lighter more refined laminate to reduce weight and improve the ride feel.  The re-design gives the new SES 4.5 greater versatility through pinch-flat resistance and a reduction in weight with zero compromises to speed.

With an internal rim width of 25mm, confident handling results, making the SES 4.5 a game-changer on technical courses with imperfect pavement.  Like the rest of the SES wheel line, the SES 4.5 has been optimized for road tubeless performance and features a hookless bead design that allows for the precise rim dimensions required to achieve the best tubeless performance.  To further improve tubeless tire and rim reliability, this aerodynamic carbon fiber wheelset features ENVE’s patent pending Wide Hookless Bead, a design element at the leading edge of the rim that provides a more forgiving surface, that when impacted, will reduce the likelihood of pinch-flatting a tubeless tire.

Features:

  • Go fast, everywhere
  • INNERDRIVE premium disc road hub
  • Centerlock only (lockrings not included)
  • 1511g Wheelset Weight Avg. (XDR) (+/- 2%)
  • Inner Rim Width: 25mm
  • Aero optimized tire size: 27mm-28mm
  • Minimum labeled tire size: 27mm
  • For use with tubeless tires only



Product Specifications:

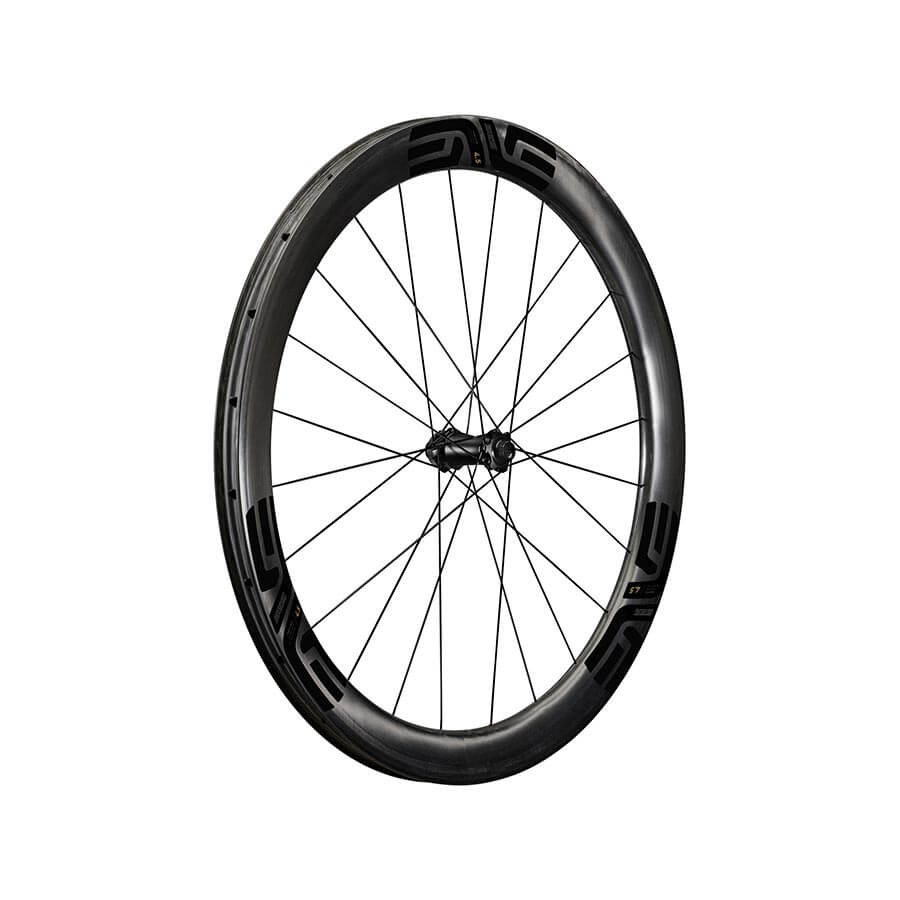

    Front Wheel, Hub Spacing 100mm, Freehub Body N/A

    • Position: Front
    • Wheel Diameter/ISO: 700C / 622
    • Hub Model: ENVE INNERDRIVE
    • Axle Type: 12mm TA
    • Hub Spacing: 100mm
    • Freehub Body: -
    • Wheel Tire Type: Tubeless
    • Rim Drilling: 24
    • Wheel-Brake Comp.: Disc Center Lock
    • Wheel Weight: 651g
    • Rim Material: Carbon
    • Spoke Type: J-Bend
    • Valve: Presta
    • Rim Construction: Carbon
    • Rim Internal Width: -
    • Rim External Width: -
    • Depth: 49mm
    • Rim Model: SES 4.5
    • Skewers Included: -
    • Rim Inner Width Range: -
    • Rim Color: Black
    • Vendor Item No: 100-3319-007

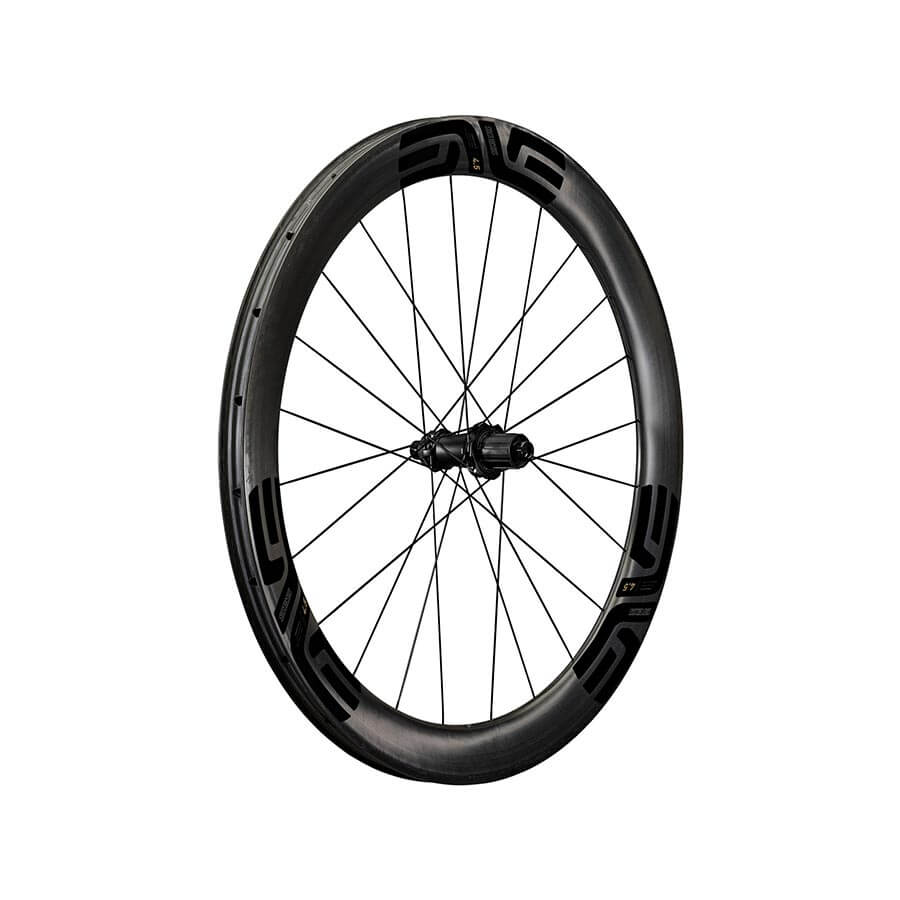

    Rear Wheel, Hub Spacing 142mm, Freehub Body Shimano HG 11

    • Position: Rear
    • Wheel Diameter/ISO: 700C / 622
    • Hub Model: ENVE INNERDRIVE
    • Axle Type: 12mm TA
    • Hub Spacing: 142mm
    • Freehub Body: Shimano HG 11
    • Wheel Tire Type: Tubeless
    • Rim Drilling: 24
    • Wheel-Brake Comp.: Disc Center Lock
    • Wheel Weight: 782g
    • Rim Material: Carbon
    • Spoke Type: J-Bend
    • Valve: Presta
    • Rim Construction: Carbon
    • Rim Internal Width: -
    • Rim External Width: -
    • Depth: 55mm
    • Rim Model: SES 4.5
    • Skewers Included: -
    • Rim Inner Width Range: -
    • Rim Color: Black
    • Vendor Item No: 100-3319-008

    Rear Wheel, Hub Spacing 142mm, Freehub Body SRAM XD-R

    • Position: Rear
    • Wheel Diameter/ISO: 700C / 622
    • Hub Model: ENVE INNERDRIVE
    • Axle Type: 12mm TA
    • Hub Spacing: 142mm
    • Freehub Body: SRAM XD-R
    • Wheel Tire Type: Tubeless
    • Rim Drilling: 24
    • Wheel-Brake Comp.: Disc Center Lock
    • Wheel Weight: 782g
    • Rim Material: Carbon
    • Spoke Type: J-Bend
    • Valve: Presta
    • Rim Construction: Carbon
    • Rim Internal Width: -
    • Rim External Width: -
    • Depth: 55mm
    • Rim Model: SES 4.5
    • Skewers Included: -
    • Rim Inner Width Range: -
    • Rim Color: Black
    • Vendor Item No: 100-3319-009

    Dimensions:

    FRONT Wheel, REAR Wheel

    • Depth: 50mm, 56mm
    • Internal Width: 25mm, 25mm
    • External Width: 32mm, 32mm
    • Hole Count: 24, 24
    • Effective Rim Diameter: 558, 547
