2025 Biktrix Juggernaut XD DUO Step-Over 2300W Mid Drive Electric Bike

2025 Biktrix Juggernaut XD DUO Step-Over 2300W Mid Drive Electric Bike



Save $ 1,404.00
$ 6,399.00
$ 4,995.00

Norton Shopping Guarantee

Notify me when back in stock





Free Shipping.  Please note that shipping time is about 2-3 weeks due this being made to order.

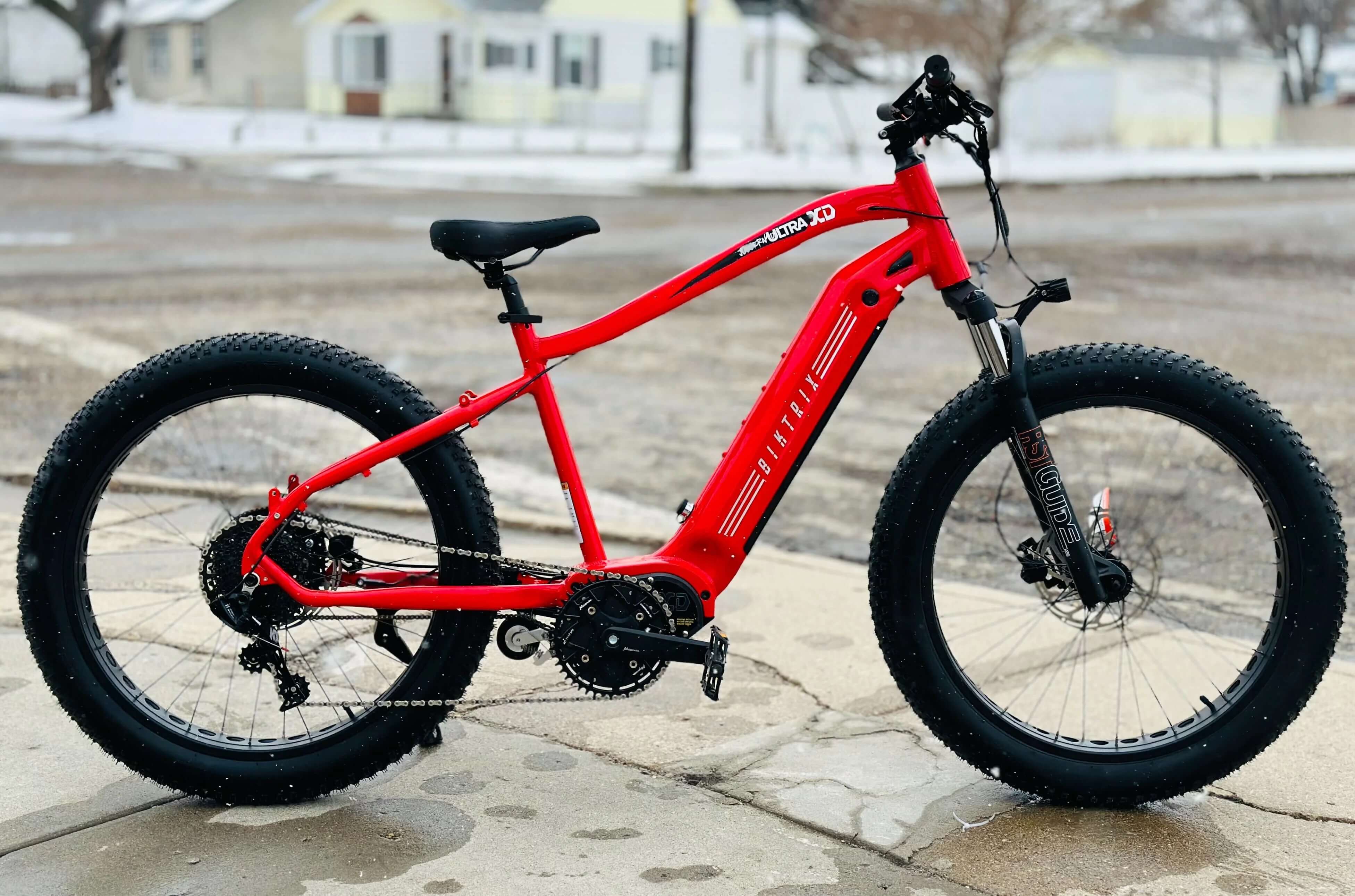

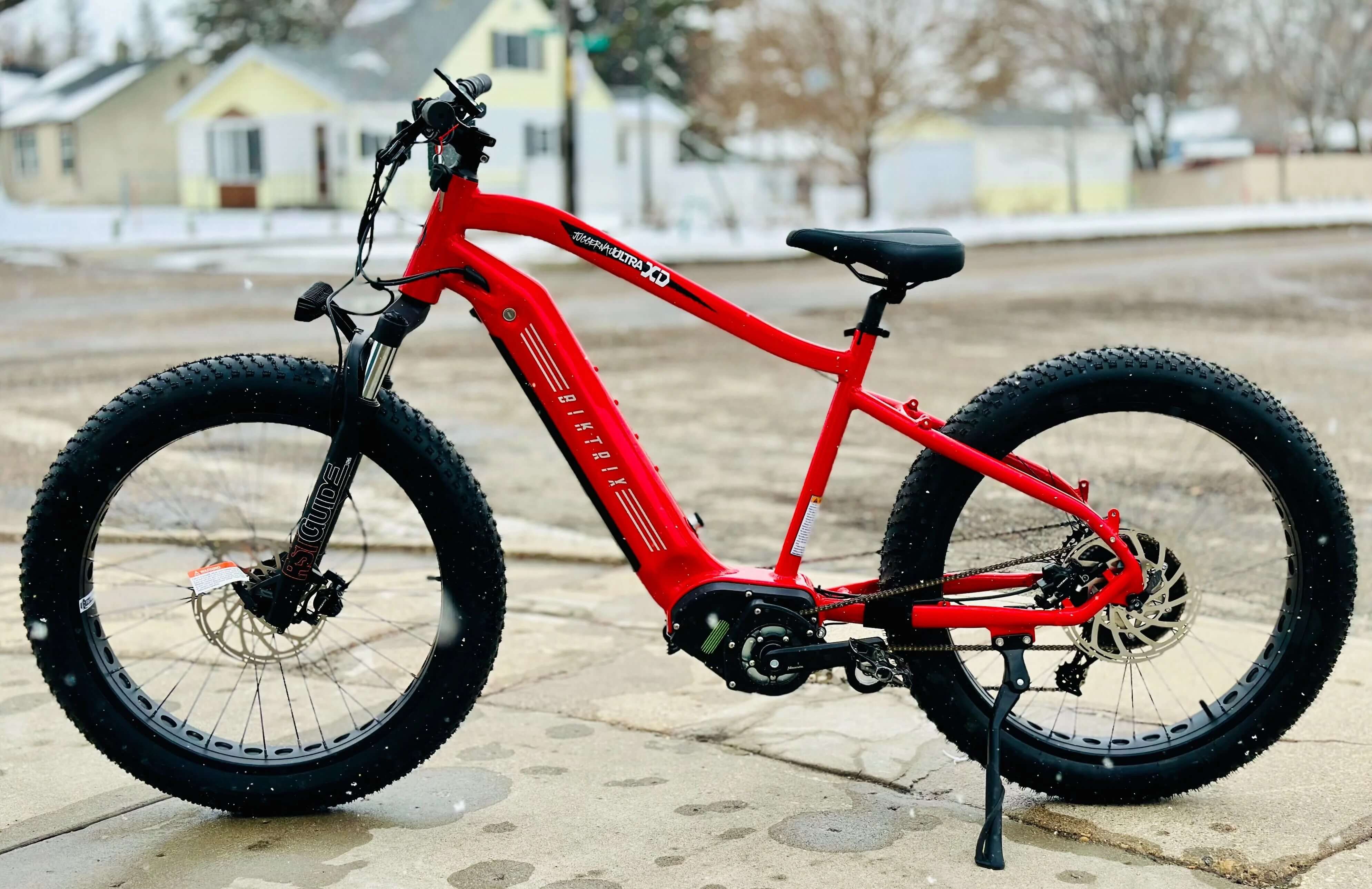

The Biktrix Juggernaut XD Duo Step-Over 2300W Mid Drive Electric Bike is in a class of its own.

Getting plenty of power to the rear wheel is exciting, but has always come at the risk of ongoing costs in replacement parts, and time lost riding.  Many casual to moderate riders will not ride hard enough to cause such issues.  But for those who want to push the limits, a more robust solution was needed to build the dream e-bike machine, with extreme endurance.

Enter the XD Duo e-bike.

The XD Drive system was designed and built in Saskatoon, Canada, by a team of e-bike enthusiasts with a shared passion for better transport solutions.  The global pandemic conditions forced them to improvise, adapt, and overcome, tackling the bike parts shortages, chip shortages, and shipping shortages.

The resulting bike and its manufacturing approaches are primed for navigating such challenges with agility, and competitive in-house solutions.

Features:

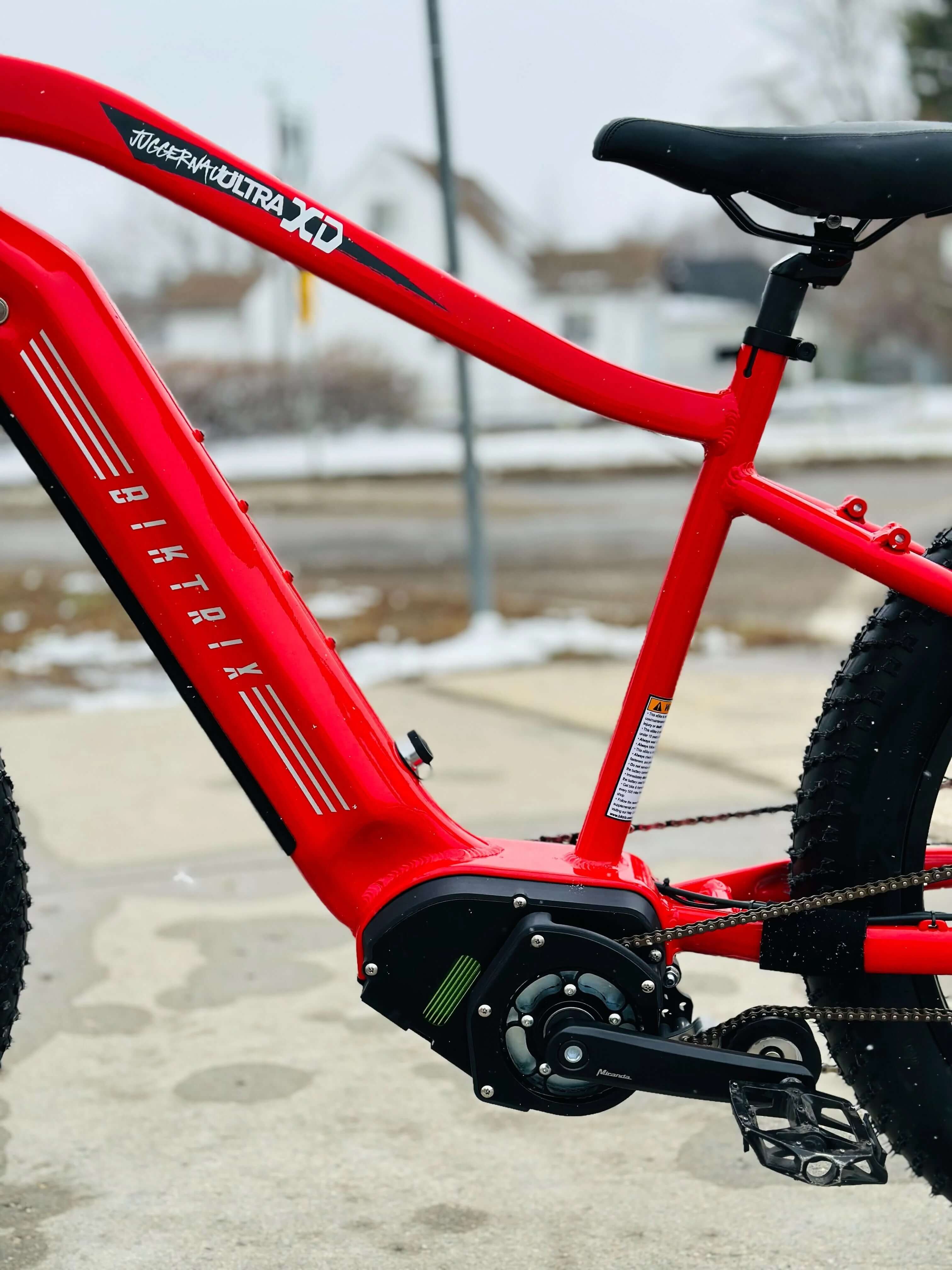

Mid-Drive Motor

This in-house designed and tested motor feeds 2000+ Watts power through a direct drive secondary chain to the rear wheel.  This means unparalleled power, performance and durability.

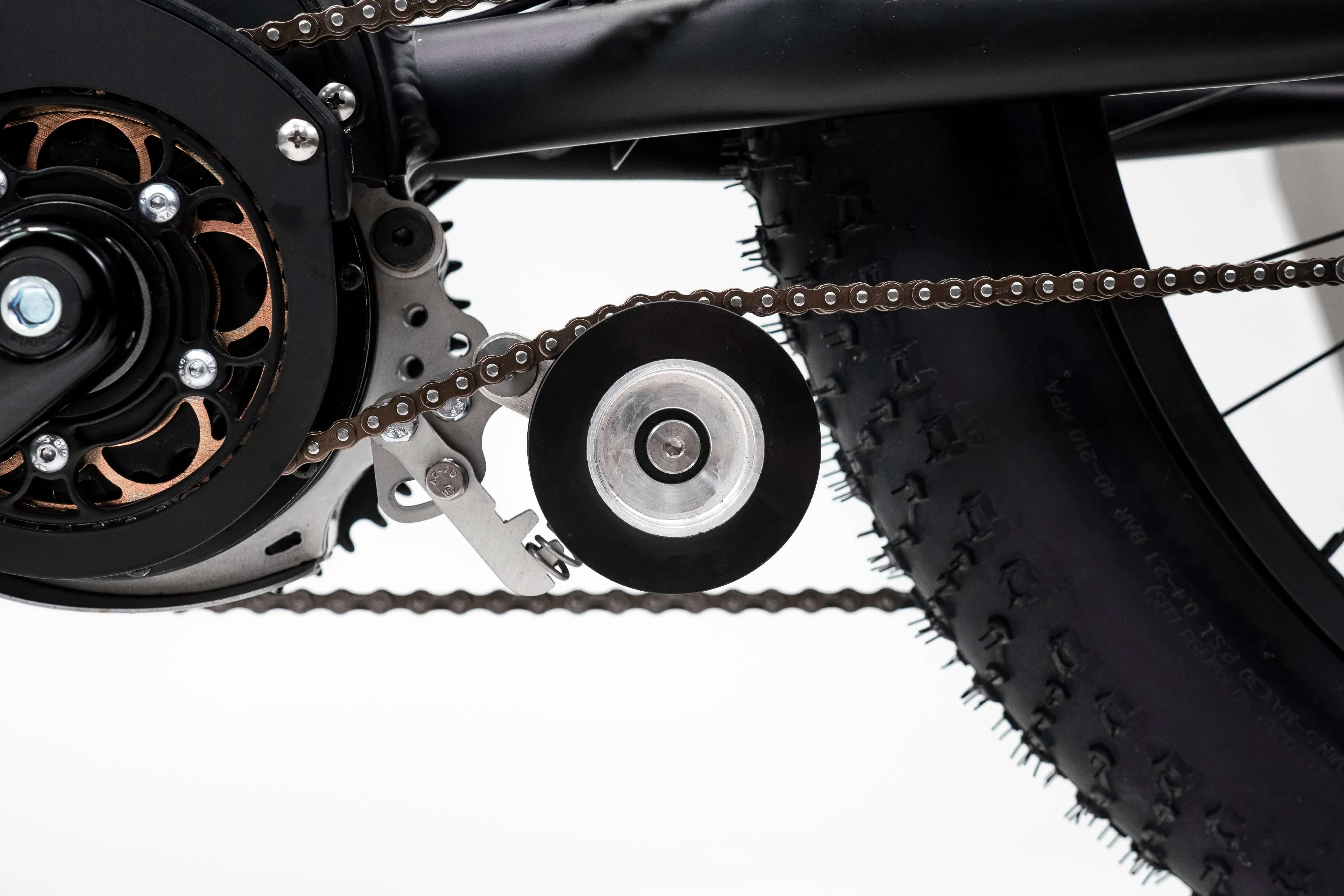

Heavy Duty Dual Drive Chain

This rugged 219 chain can handle many times the forces a regular bike chain can. This chain is over-engineered for extreme durability!

Twist Throttle

Unleash the power of the XD Dual Drive motor with a simple flick of the wrist.

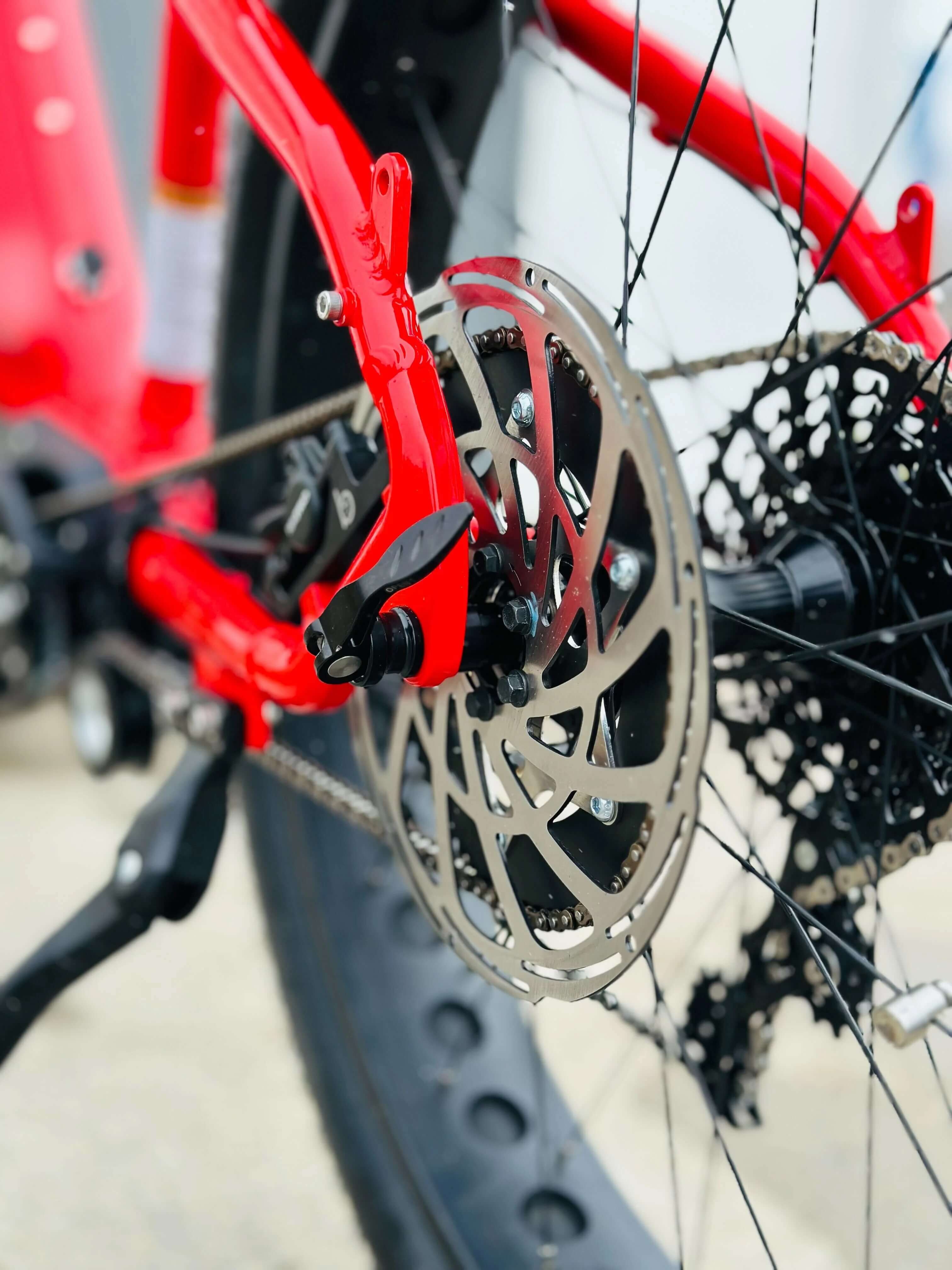

220mm Rear Brake Rotor

The 220mm rear brake rotor along with Tektro Dual Piston brakes will quickly and safely bring you to a stop.

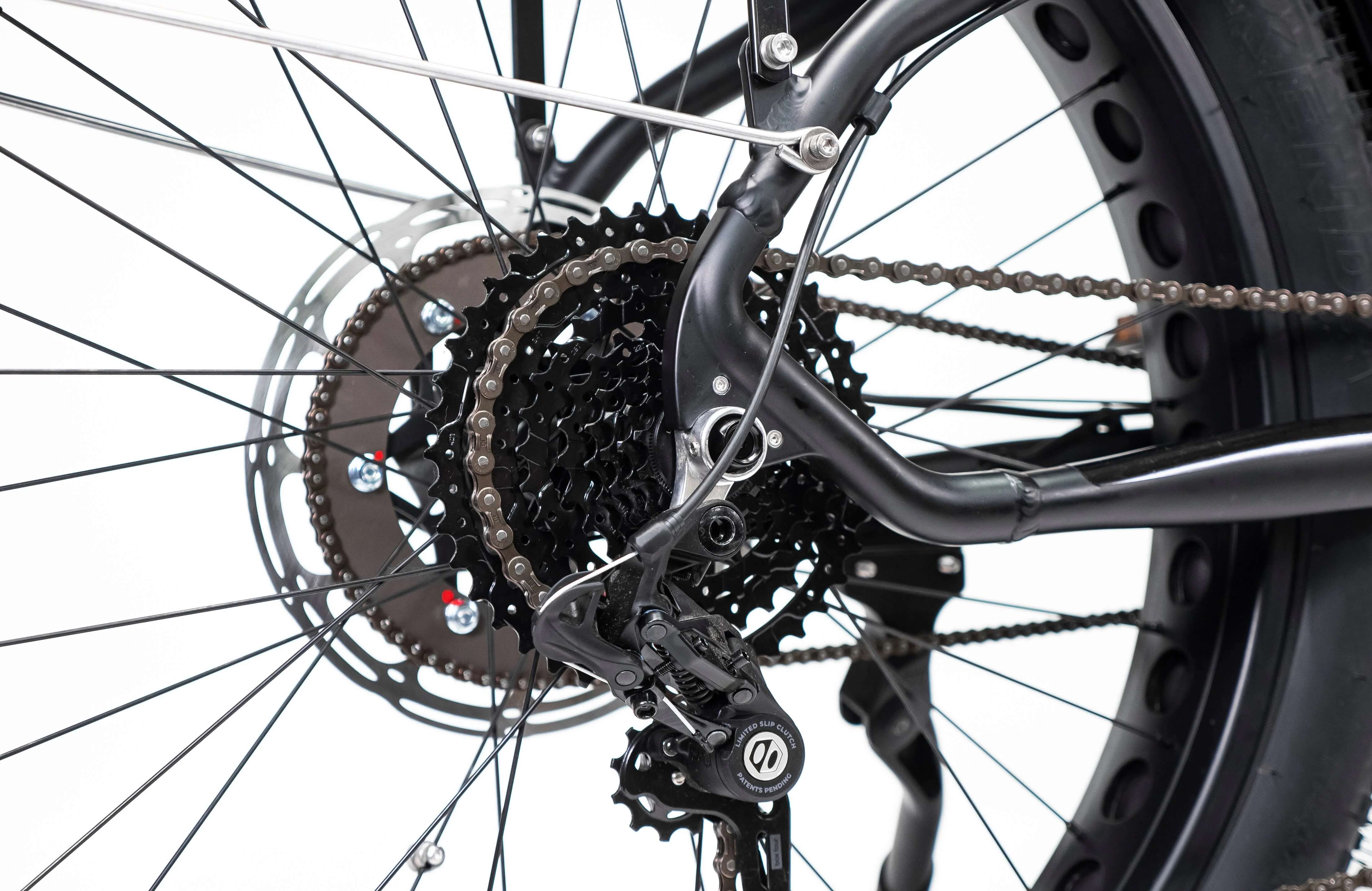

SRAM NX Bike-Side Drivetrain

The 11-Speed SRAM NX Drivetrain on the bicycle side of the bike with a 11-42T Cassette provides you the range to tackle any adventures the XD leads you to.

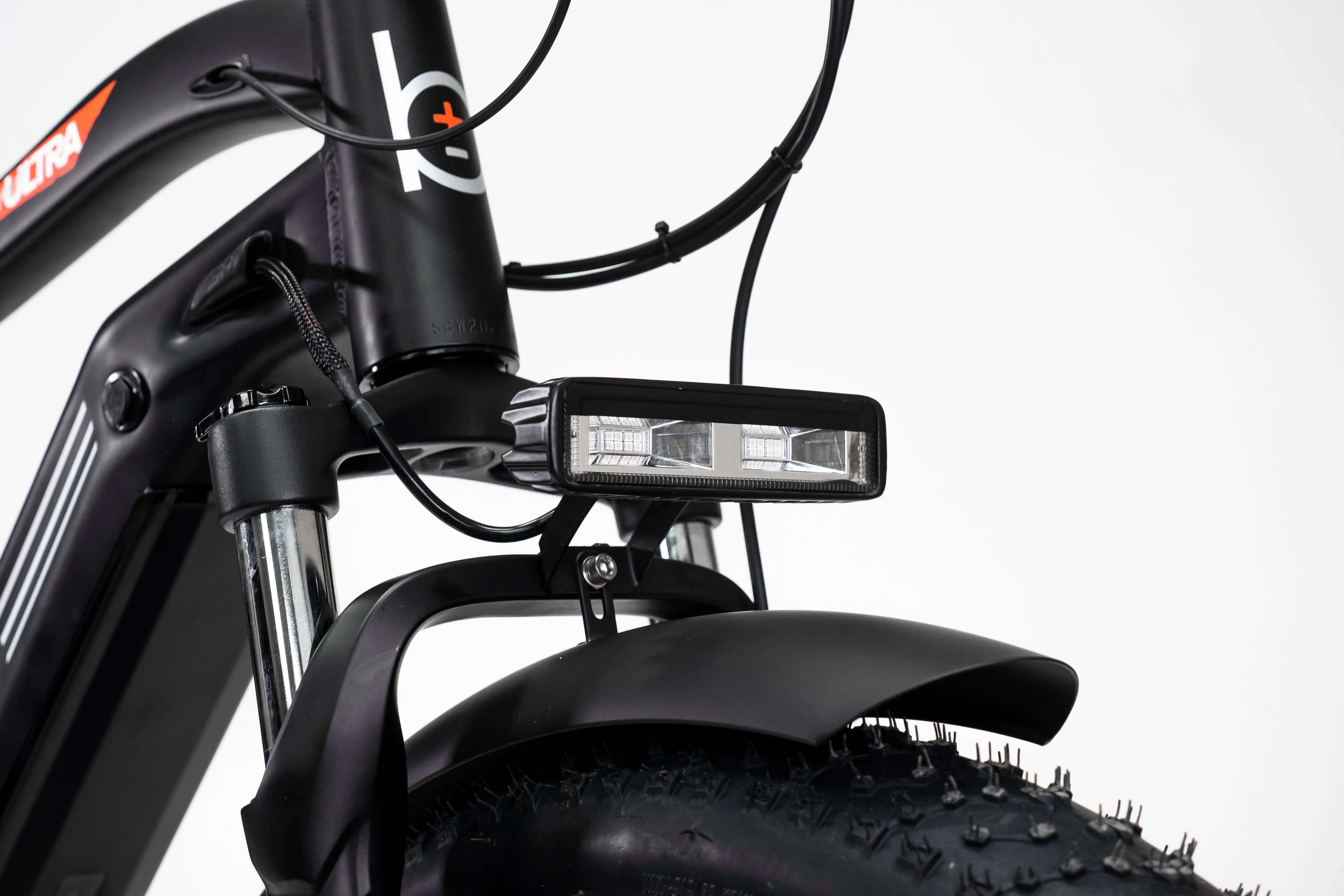

Armageddon Headlight

The Biktrix developed Armageddon Headlight with 2000 lumens of brightness will ensure your path stays lit up and fully visible.

Product Specifications:

  • FRAME:  6061 Aluminum
  • BRAKES:  Tektro Dual Piston Brakes, 220mm rear rotor, 180mm front rotor
  • BATTERY SIZE: 52V 17.5Ah 910Wh Hidden Battery
  • FORK:  RST Guide w/ Lockout, Preload, 80mm travel
  • BRAKE LEVERS:  Tektro adjustable with integrated motor cutoff
  • HEADSET:  Threadless 1-1/8 1-1/2 Tapered
  • HANDLEBAR:  780mm Wide, 25mm Rise w/31.8mm Clamp (Adventure Package) / 700mm Wide, 80mm Rise w/31.8mm Clamp (Commuter Package)
  • SHIFTER REAR:  SRAM NX 11 Speed Trigger Shifter
  • STEM:  55mm (Adventure Package) / 90mm (Commuter Package)
  • REAR DERAILLEUR:  SRAM NX 11 Speed
  • GRIPS:  MTB Grips
  • CASSETTE:  SRAM 11-42T
  • SEAT POST:  28.6mm
  • CHAIN:  KMC X11
  • SEAT POST CLAMP:  Quick-Release
  • CRANK SET:  Short Crank Arms
  • SADDLE:  Nebula MTB Saddle (Adventure Package) / Wide Comfort Seat (Commuter Package)
  • BOTTOM BRACKET:  High Strength Stainless Steel Square Tapered
  • MOTOR:  Biktrix Mid-Drive Motor
  • FRONT HUB:  135mm 36H (150mm 36H with Wren Fork)
  • DISPLAY:  500C
  • FRONT AXLE/SKEWER:  5mm QR (15mm Thru Axle with Wren Fork)
  • LIGHTS:  Armageddon Headlight (all), Rear Reflector (Commuter Package)
  • REAR HUB:  197mm 36H
  • THROTTLE:  Low Profile RH Twist Throttle
  • REAR AXLE/SKEWER:  12mm Thru Axle
  • ASSIST LEVELS:  1-5 (Note that when ordered with a cadence sensor the throttle will always offer 100% power, if not throttle power is based on PAS level)
  • RIMS  26x4 Black w/ Round Cutouts, 27.5x3 Solid Black
  • ASSIST TYPE:  Cadence
  • TIRES:  26x4, 27.5x3
  • OTHER:  Kickstand (all), Rear Rack and Fenders (Commuter Package)

Size & Fittings:


17"
19"
1 Effective Top Tube Length 620 mm 24.4 inches 620 mm 24.4 inches
2 Seat Tube Length (Classic Bike Size) 430 mm 16.9 inches 470 mm 18.5 inches
3 Reach 460 mm 18.1 inches 480 mm 18.9 inches
4 Stack 630 mm 24.8 inches 670 mm 26.4 inches
5 Chainstay Length 520 mm 20.5 inches 550 mm 21.7 inches
6 Standover Height 730 mm 28.7 inches 750 mm 29.5 inches
7 Head Angle 68 ° - 68 ° -
8 Seat Angle 71 ° - 71 ° -
9 Head Tube Length 200 mm 7.9 inches 200 mm 7.9 inches
10 Fork Length 530 mm 20.9 inches 530 mm 20.9 inches
11 Front Center 790 mm 31.1 inches 790 mm 31.1 inches
12 BB (Bottom Bracket) Drop 80 mm 3.1 inches 90 mm 3.5 inches
13 Fork Offset 30 mm 1.2 inches 40 mm 1.6 inches
14 Wheelbase 1320 mm 52 inches 1330 mm 52.4 inches
15 Total Length 2040 mm 80.3 inches 2040 mm 80.3 inches
16 Max Seat Height 970 mm 38.2 inches 1010 mm 39.8 inches
17 Min Seat Height 820 mm 32.3 inches 860 mm 33.9 inches
18 Handlebar Height 1120 mm 44.1 inches 1140 mm 44.9 inches
19 Weight (Without Battery) 30.6 kg 67.5 lb 31.2 kg 68.8 lb
