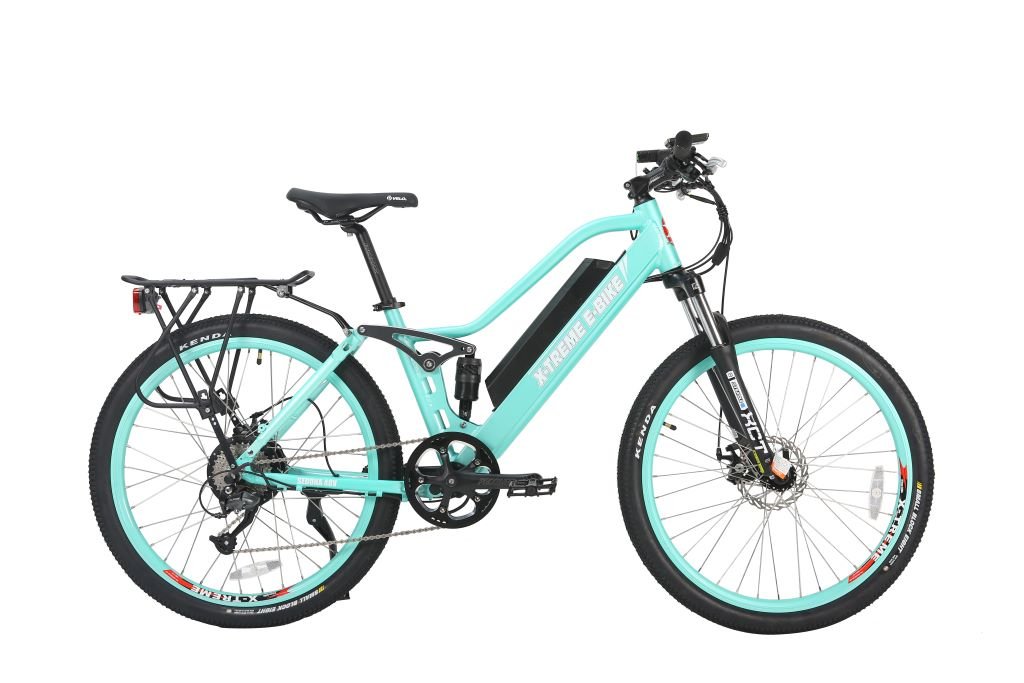

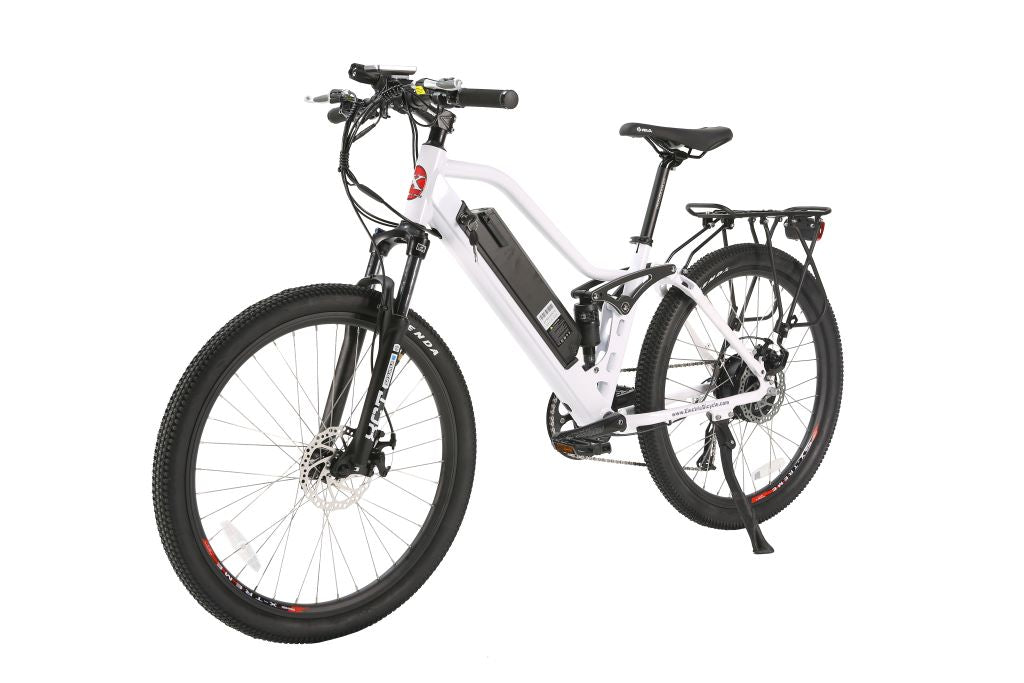

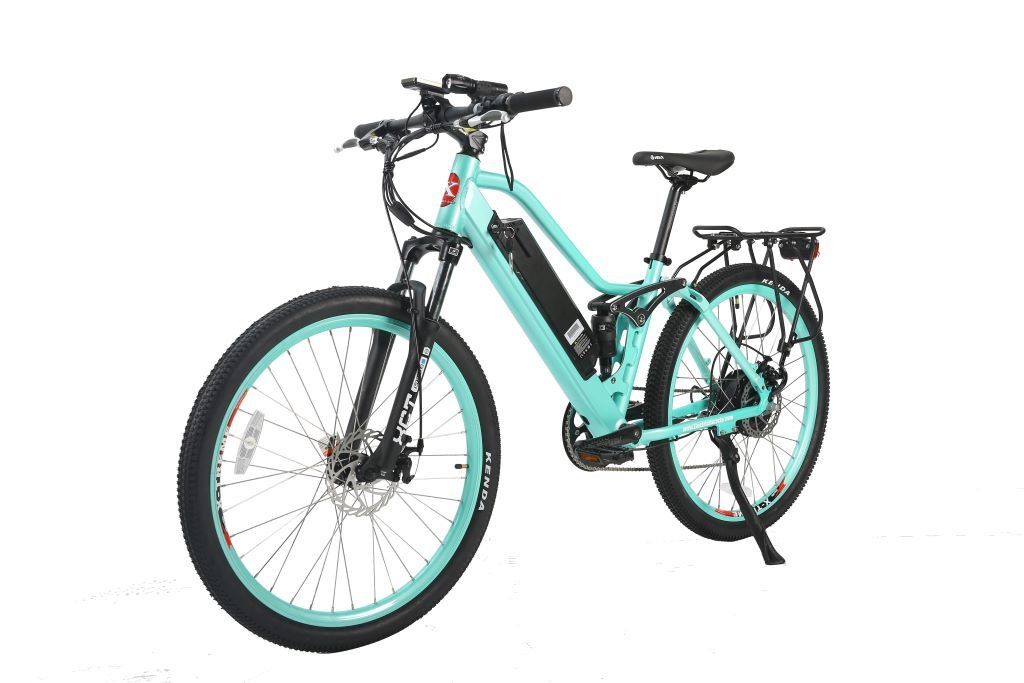

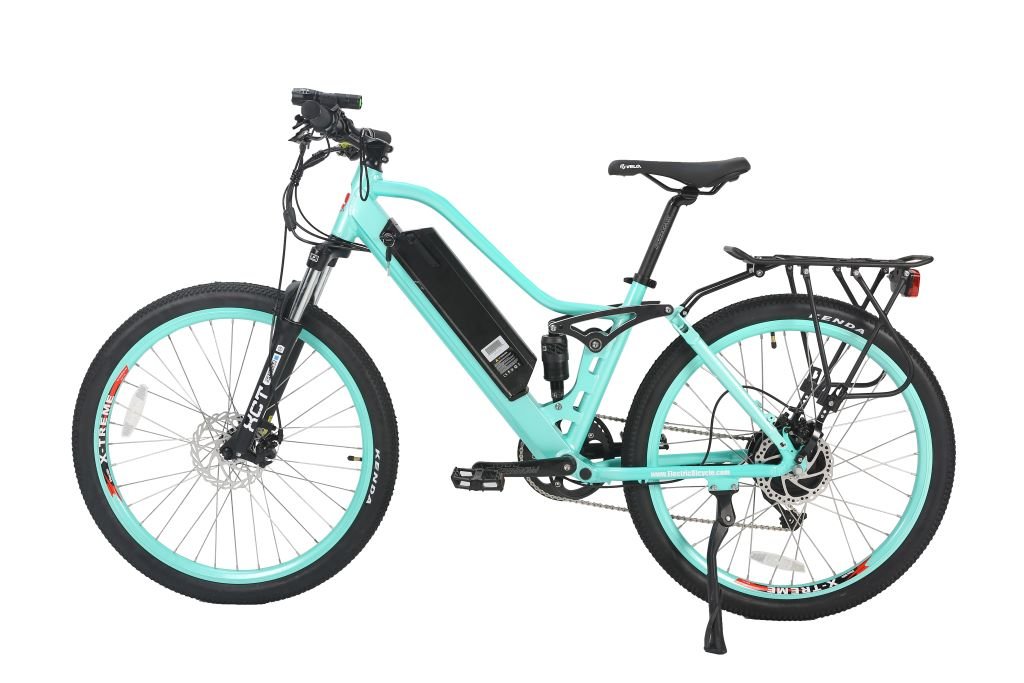

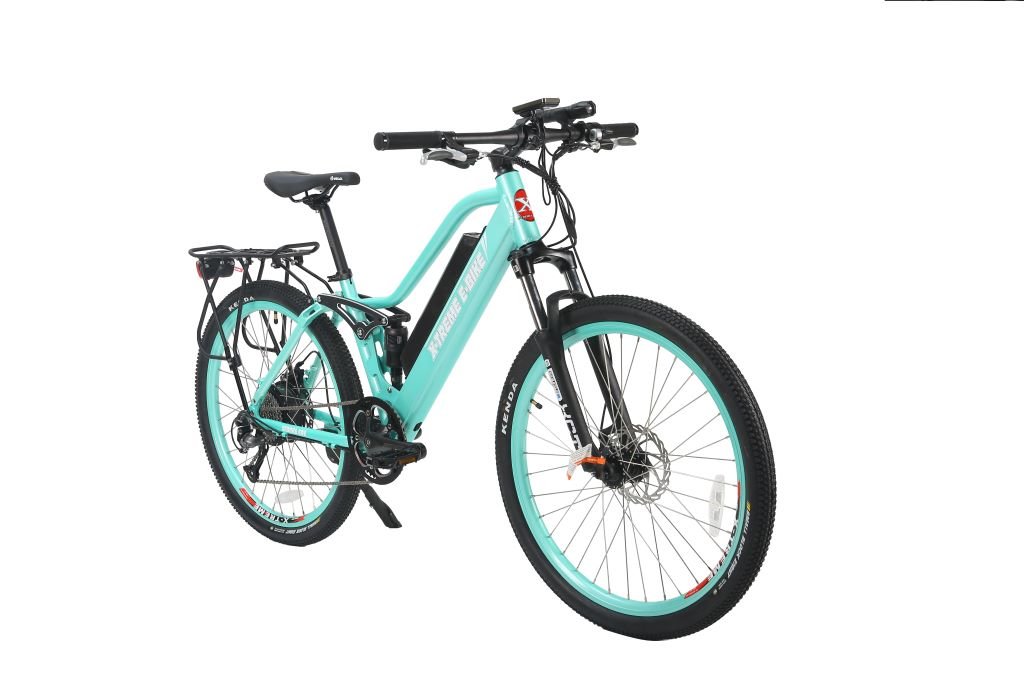

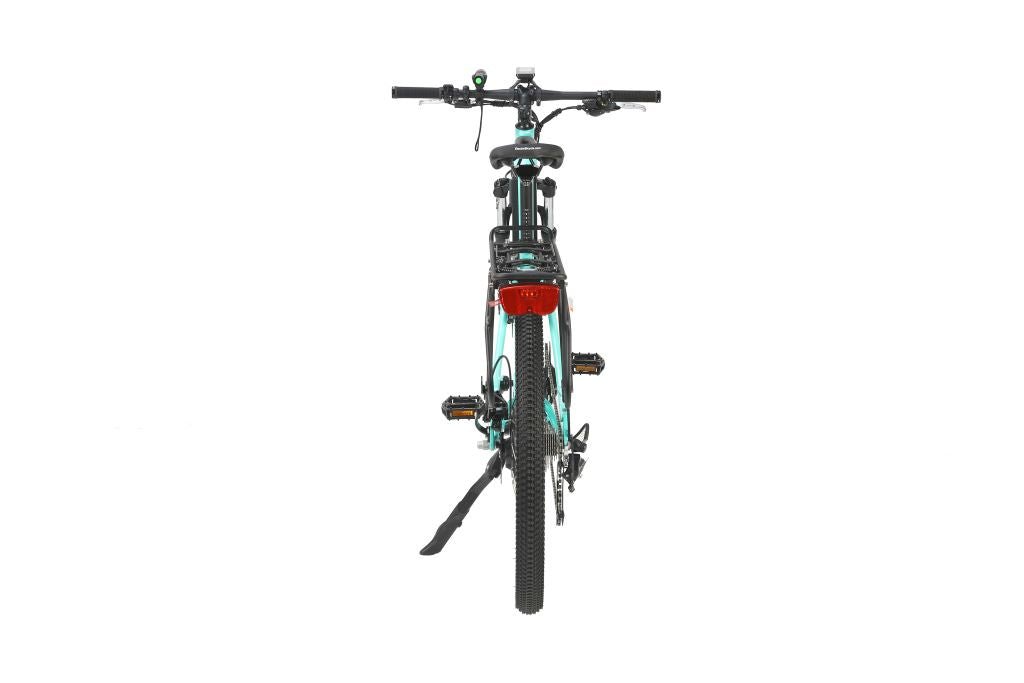

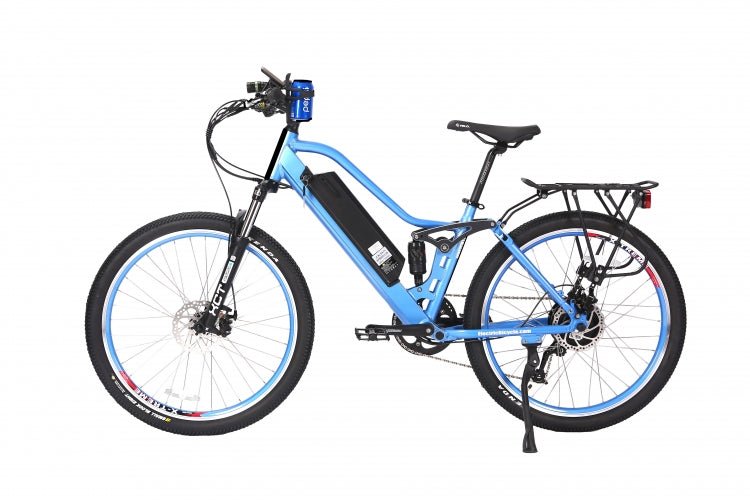

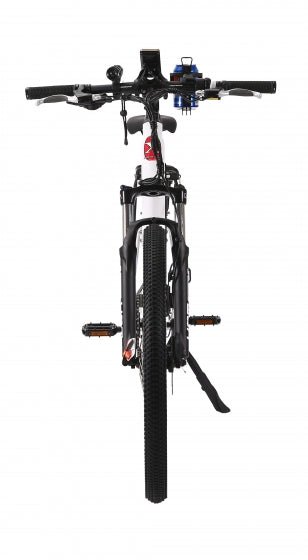

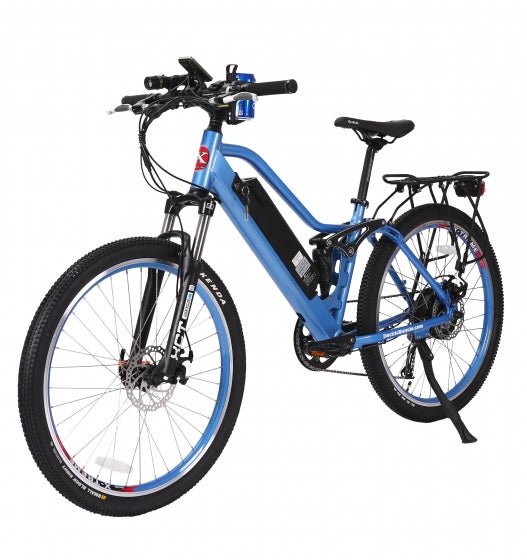

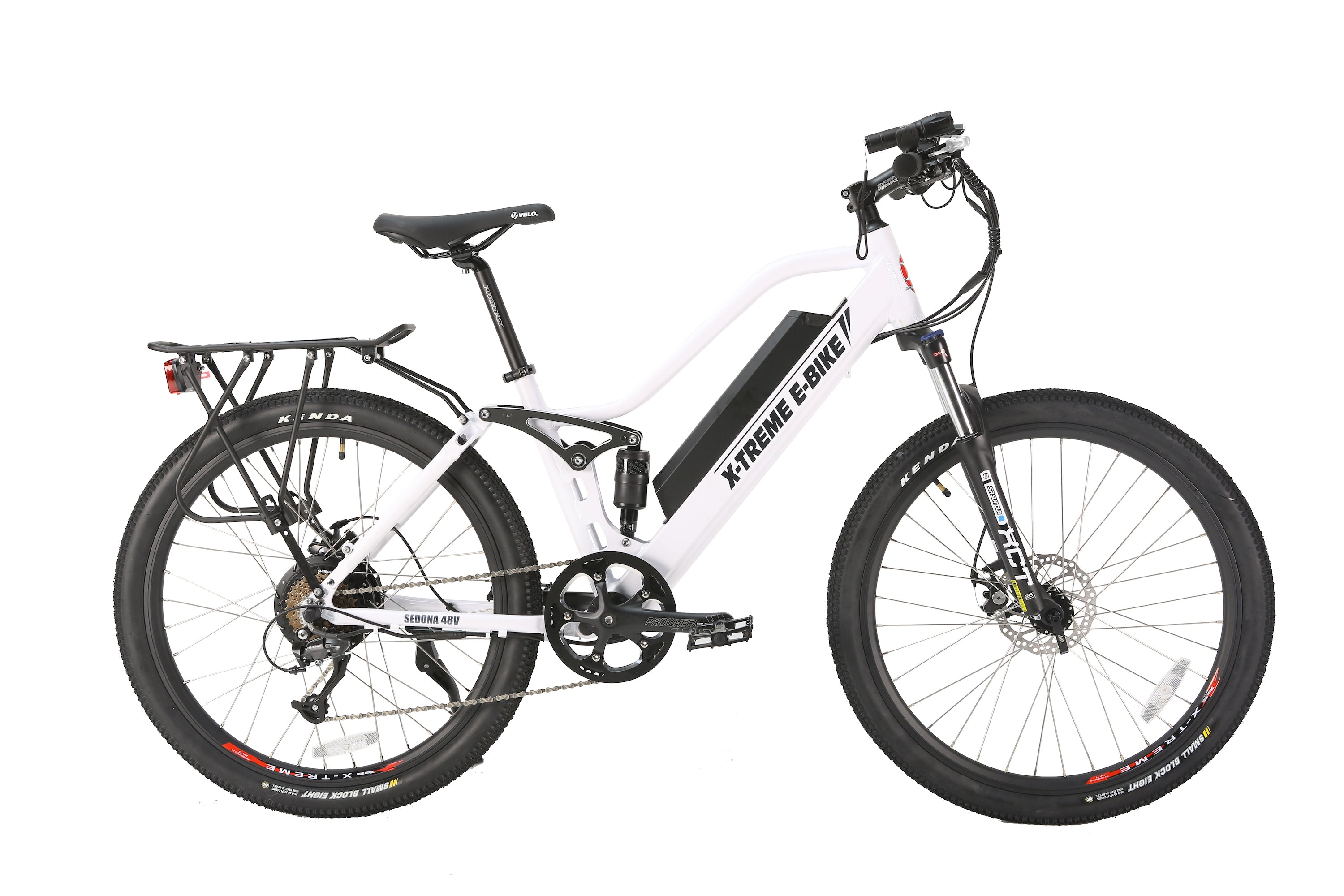

2024 X-Treme Sedona 48V 500W 10.4Ah Long Range Electric Mountain Bike

Save 28%
Original Price $ 1,999.00
Current Price $ 1,439.00

Notify me when back in stock


The X-Treme Sedona 48V step-through long range high power e-bike is a vast improvement on the previous Sedona 36V model  Now featuring more advanced features and an all powerful 500W 48V motor, the Sedona e-bike packs a punch without hurting your wallet!

The Sedona cranks out 500 Watts from the Bafang High Torque Zero Resistance Clutch Motor with Digital Torque Sensor.  This e-bike features a lightweight, compact lithium LiFePo4 48 volt 10.4 Ah integrated battery pack providing a considerable amount of power greater than our 24 volt or 36 volt models.

The Sedona 48V comes with everything Aluminum - every bolt, every nut, every nipple, every spoke.  This means no rust on any of your components.

The 100% hand welded lightweight aluminum frame electric bicycle has Atlus Shimano 9-Speed Gears & Shifting System, Suntour XCT Front Suspension & KS Rear Shock Suspension, aluminum rims with quick release axle on the front and a water proof quick disconnect on the rear.

The X-Treme Sedona comes equipped with the King Meter 5 Speed Smart Power Assist System (SPAS) with a USB Phone Charging Port.  The electronics on this e-bicycle are controller via rider input on the LCD screen attached to the handlebars.

Smart PAS with 5 speeds will enable the bike to operate nearly twice as efficient as a non-smart assist electric bike, because you select the power consumption (speed controls 1-5 setting) on the LCD during your ride.  The LCD also indicates Speed, Distance and Battery Life.

The Sedona 48 Volt Lithium Powered Electric Mountain Bicycle is faster than any model we sell.  It has been tested climbing a 5-7% mountain grade continuously for 45 minutes while having to slow down for hair pin turns.

Front and rear Tetko disk brakes are standard on the Rubicon 48 along with true VELO Brand Hand Grips and a mountain bike seat.

This electric mountain bicycle comes standard with a free beverage holder.

Available colors are Black or Black with Red/White Accents.

Why BUY The Sedona 48V Electric Bicycle:

  • Unsurpassed¬†Manufacturer's Warranty-¬†12 Month X-Treme Warranty on all parts/components against manufacturer defects.
  • Powerful 500 Watt Motor-¬†enables you to ride¬†along with little pedaling effort
  • No Rust-¬†all aluminum components means your bike will stay rust-free!
  • Bicycle is lightweight-¬†can support a body weight of 350 lbs.
  • Charge Your Phone On The Go-¬†with the USB charging port.
  • No driver's license-¬†and no registration with DMV required.
  • Environmentally friendly-¬†have fun with no guilt!

Product Specifications:

Power Electric
Watts 500 Watts
Amps 10.4 AH Integrated Lithium Battery
Volts 48 Volts
Battery 48 Volt LiPo4 Lithium (lightweight)
Drive System Chain Driven by Rear Hub Motor or Pedal Power
Charger 48 Volt Output UL Certified Charger (Charging Time +/- 3 Hours)
Tire Size Kenda Mountain Tire & Tube - 26 x 2.10 Inch on Aluminum Wheels

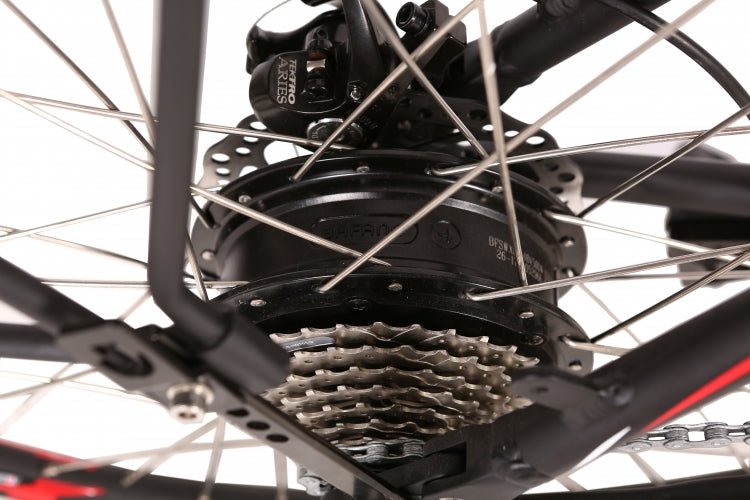

Motor Bafang 500 Watt Zero Resistance Rear Hub Motor With Clutch

48 Volt 15 Amp Sealed Smart Controller

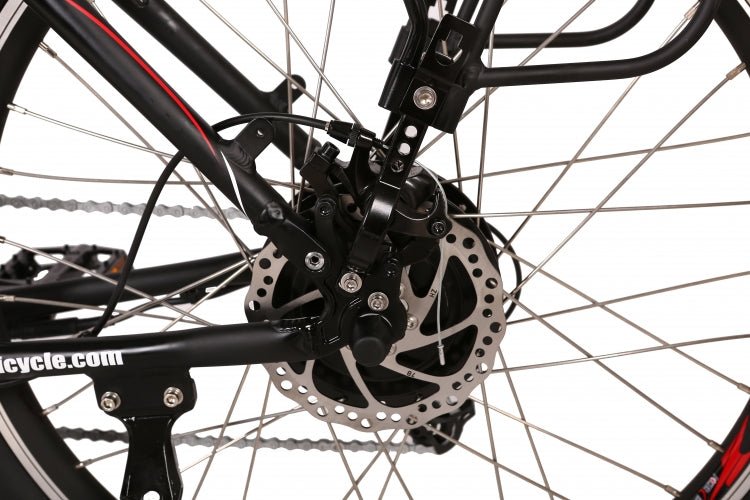

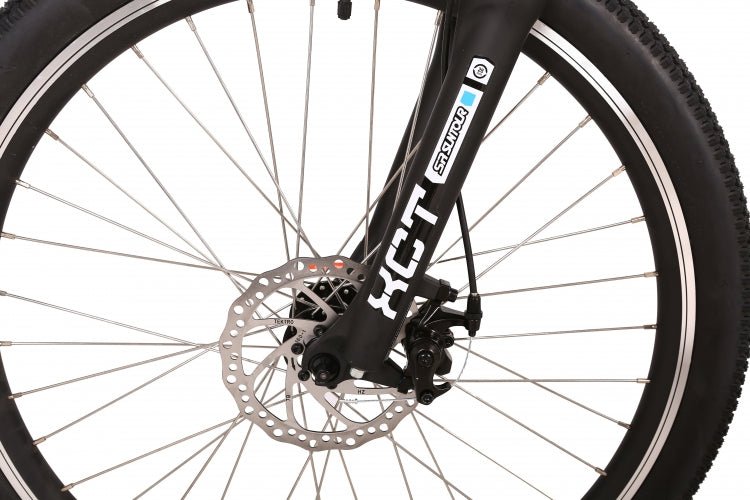

Braking System Tektro Disk Brakes With Hydraulic Upgrade Option
Pedals: Wellgo Aluminum Pedal Set
Front Wheel: Joytech Quick Release Hub
Throttle Type Variable Speed Thumb Throttle - SPAS Power Assisted - Pedal Power

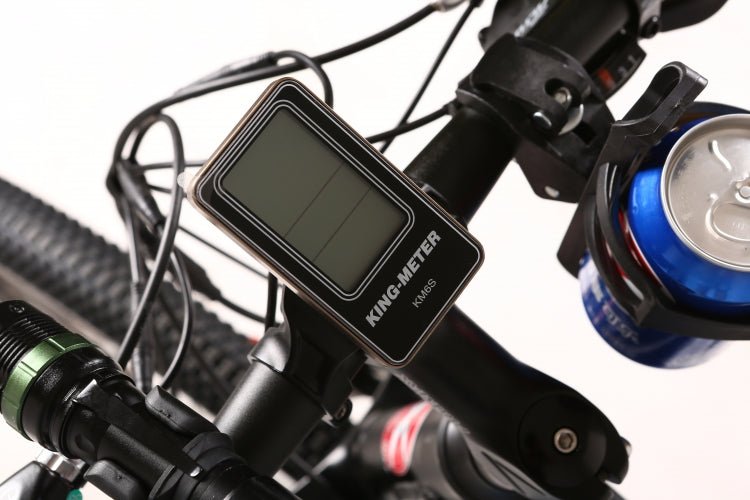

LCD Display King Meter LCD Smart PAS Digital System With USB Phone Charging Port
Cargo Rack Aluminum Rear Carry Rack

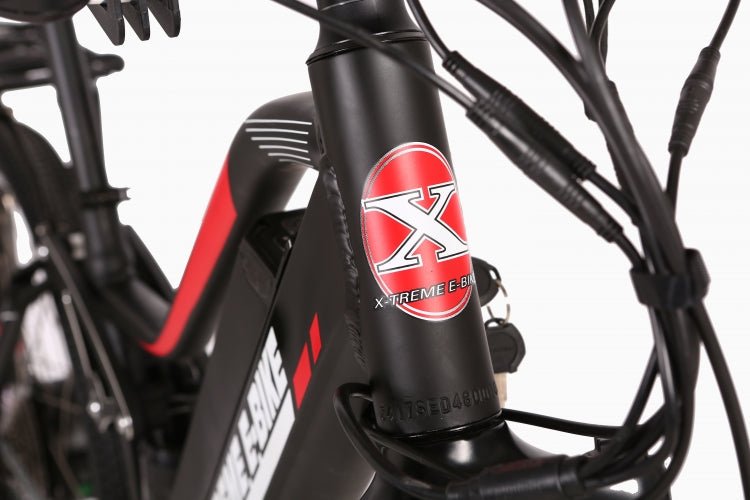

Frame Type/Size 6061-T6 Temper Aluminum Alloy - Very Lightweight - Step Through

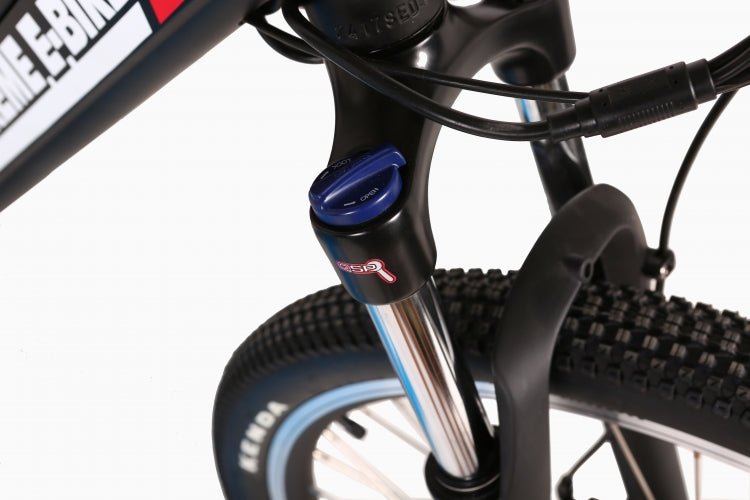

Forks Suntour XCT Hydraulic Front Forks
Suspension Front Hydraulic Suspension Included & KS Rear Shock Suspension
Front Sprocket Aluminum Alloy Sprocket

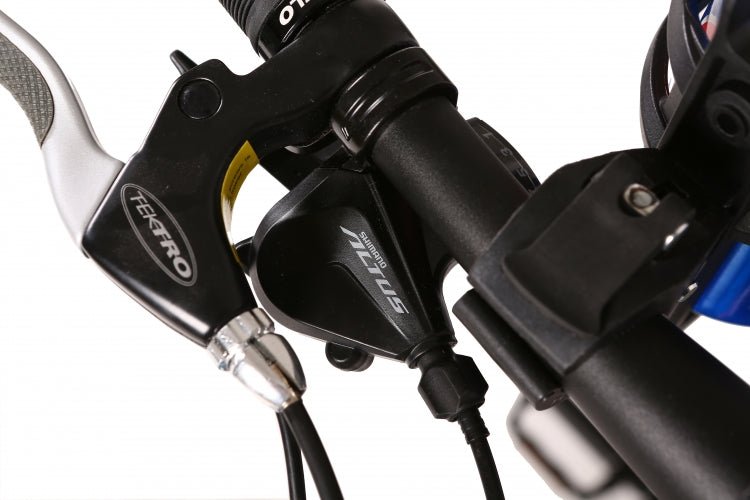

Derailleur Shimano 9-Speed Atlus Gears & Shifter

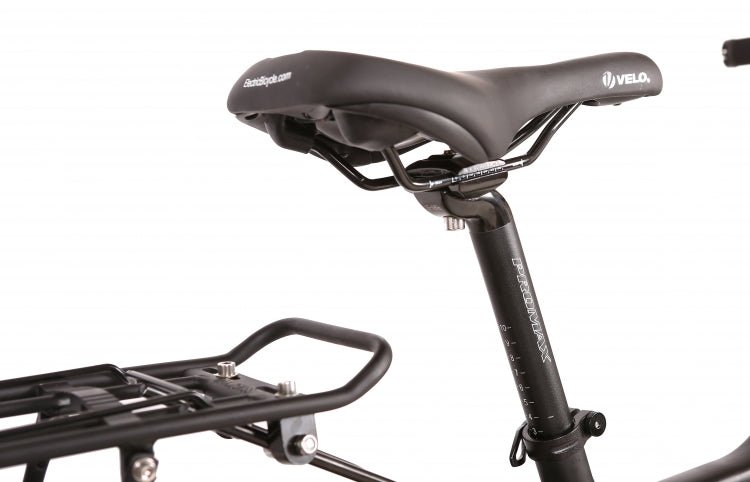

Seat & Post Aluminum Alloy Adjustable Seat Post & Velo Mountain Bike Seat
Quick Release Front & Rear Wheels Have Quick Release Axles - Flip Lever
Gooseneck Aluminum VP
Handle Bars Aluminum Alloy Mountain Bike Handle Bars

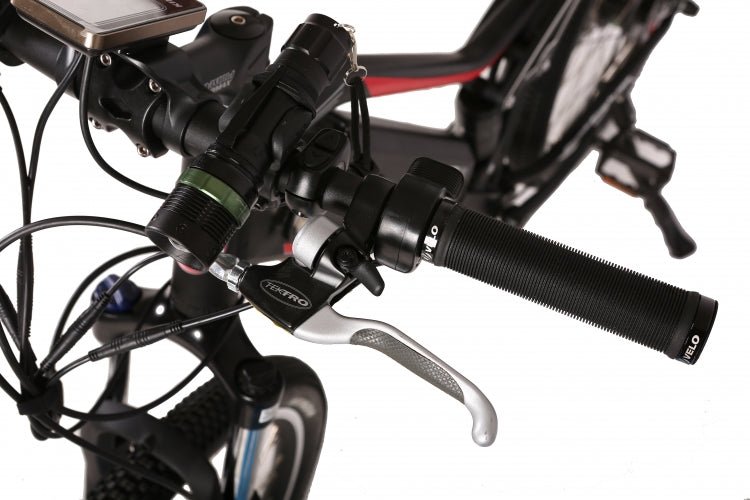

Head Light Yes, included as free accessory add on - Battery Operated Snap-On LED (Not covered under warranty)

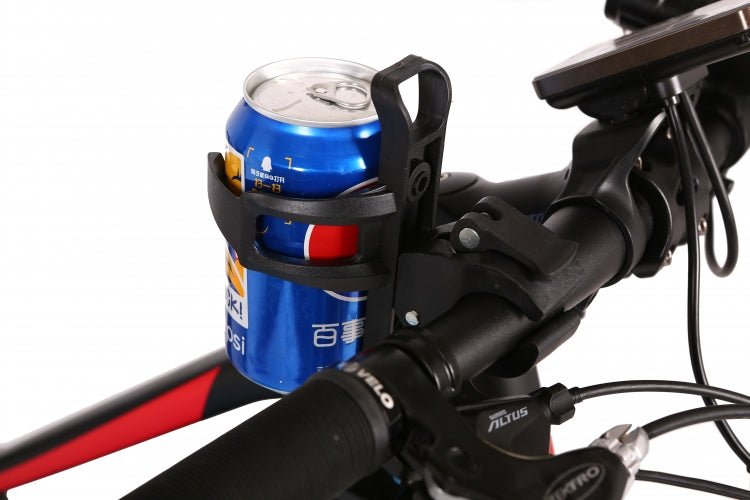

Accessories Drink Holder On Handle Bars Included
Bicycle Measurements Max Seat Height = 37.75" Inches / Min Seat Height = 29.5" Inches / Handlebar Height = 37.75" Inches
Carton Size (L x W x H) 55 x 9 x 28
Bicycle In Box Weight 69 lbs
Bicycle Weight 59.5 lbs
Suggested Max Weight 350 lbs.
Max Speed 15.5 mph
Warranty 1 Year Warranty & 1 Year Battery Warranty
Notes *depends on rider weight & terrain Distance obtainable when using SPAS


You can email if you have any questions on the specs.

Customer Reviews

Based on 2 reviews
Customer (Clearwater, FL, US)
X-Treme Sedona 48 Volt Electric Bicycle.

l have an X-Treme Sedona 48 Volt Blue Electric Bicycle at my placed, it`s a great bicycle. The Bicycles came right to my place, l took it out of the box, essembled it took about an hour or so to do it. l put on the front wheel then the back wheel,, then l put on the handle bars, l put on a handle bar riser so one can sit more upright. l put together the seat and the bicycle rack. The bicycle l put on the taillight it has two double A batteries in them, you can change them if the batteries starts to get low, by removing the screw to do it.
This New X-Treme Sedona 48 Volt Blue Electric Bicycle has a full suspension to it and can handle the bumps better than the X-Treme Sedona 36 Volt Silver or black Sedona can. Lt has more power than the X-Treme Sedona 36 Volt Electric bicycle. lt also has a built in bicycle bell and a thumb throttle on the left side of the handle bars. l highly recommend this Electric Bicycle it`s lots of fun to ride especially to and from work. This X-Treme Sedona weighs about 32 pounds and it`s a little longer than the X-Treme Sedona 36 Volt Silver Electric Bicycle by five inches The 48 Volt Battery weighs about seven pounds. The X-Treme Sedona 36 Volt battery weighs about five pounds.

Robert L.
An awesome E-bike..

This review is for the 2018 Sedona. I bought this bike in early Dec. 2017 ( a few days ago). I had enough potential buyers lined up to buy my 2018 Trail Maker Elite (TME), that I made the decision to go ahead and purchase its replacement prior to the TME leaving my possession. So, I decided to take a chance on the Sedona. WOW!! t is absolutely awesome!! No 2 ways about it.. It is worth the $$ upgrade above the TME. I have a review on the Amazon website. My posting is "A very nice e-bike indeed" by Bobster (Dec. 5, 2017). I also have an Amazon posting on the TME: " A very long review about a Quality E-Bike" by "Bobster" (Oct.30, 2017).. Alot of info...
